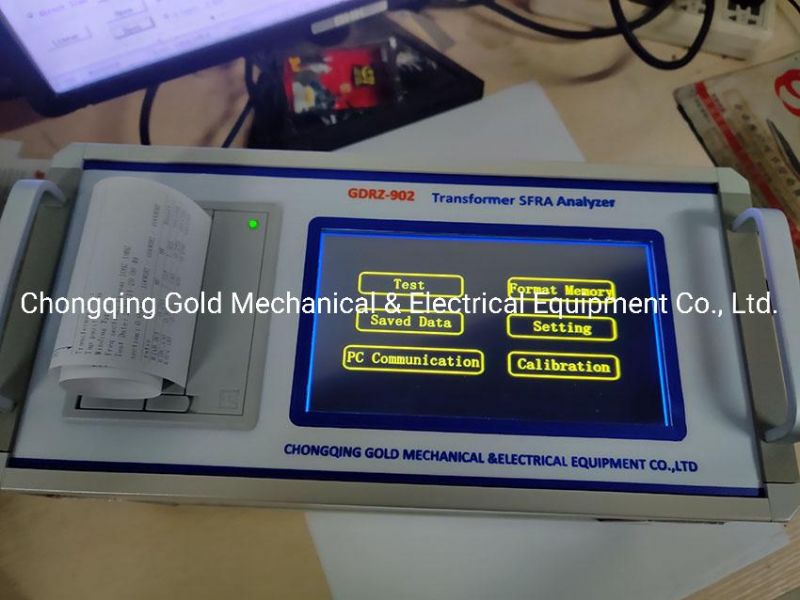

Sweep Frequency Response Analyzer for Power Transformer Test with Linear Sweep and Section Sweep

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Type：Universal Testing Machine
  • Weight：0-100Kg
  • Power Source：AC220V
  • Usage：Transformer Winding Deformation Tester
  • Function：Transformers Sweep Frequency Response Analysis
  • Apparatus：Fra Transformer Winding Deformation Analyzer

Base Info

  • Device：Sfra Transformer Test Equipment
  • Test Samples：Distribution Transformer Test Equipment
  • Test Range：(-100dB) - (+20dB)
  • Test Accuracy：0.1dB
  • Frequency Accuracy：<0.01%
  • Linear Sweep：0.5kHz-1MHz
  • Section Sweep：50Hz-100Hz
  • Transport Package：Standard Venner Case
  • Specification：ISO Certificate
  • Trademark：Gold
  • Origin：Chongqing of China
  • HS Code：9031809090
  • Production Capacity：200PCS,Month

Description

Section sweep50HZ-100HZinterval 2HZ25 dots100HZ-1KHZinterval 20HZ45 dots1KHZ -10KHZinterval 50HZ180 dots10KHZ-100KHZinterval 0.2KHZ 450 dots100KHZ - 500KHZ interval 0.5KHZ 800 dots500KHZ - 1000KHZ interval 1KHZ500 dots2Test range(-100dB) - (+20dB)3Test accuracy0.1dB4Frequency accuracy<0.01%5Signal input impedance>1M Ω6Signal output impedance50 Ω
