• Model NO.：GD-2430A
• ASTM D2386：Automatic Freezing Point Analyzer
• Application：Freeze Point of Aviation Fuel and Engine Coolants
• Working Bath：Stainless Steel
• Freezing Point Range：-54c~2c
• Cold Bath Measurement Temperature：-70c~30c
• Temperature Controlling Accuracy：+,-0.1c
• Heating Rate：350W
• Refrigerator System：Imported Refrigerator Compressor
• Sample Stirring：Mechanical Stirring Is 60~80r,Min
• Warranty：1 Year
• Transport Package：Plywood
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-2430A ASTM D2386 Automatic Freezing Point Analyzer Application Freeze Point of Aviation Fuel and Engine Coolants Working Bath Stainless Steel Freezing Point Range -54c~2c Cold Bath Measurement Temperature -70c~30c Temperature Controlling Accuracy +/-0.1c Heating Rate 350W Refrigerator System Imported Refrigerator Compressor Sample Stirring Mechanical Stirring Is 60~80r/Min Warranty 1 Year Transport Package Plywood Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

Low Temperature Freeze Point Analyzer for Aqueous Engine Coolants and Aviation Fuels



Introduction:

1. The freezing point of the aviation fuel is the lowest temperature at which the fuel remains free of solid hydrocarbon crystals that can restrict the flow of fuel through filters if present in the fuel system of the aircraft.
2. The temperature of the fuel in the aircraft tank normally decreases during flight depending on aircraft speed, altitude, and flight duration.
3. The freezing point of the fuel must always be lower than the minimum operational fuel temperature.
4. The freezing point analyzer is also suitable for measuring the freezing point of aqueous engine coolant solutions by cooling a sample with continuous agitation until a plateau is observed in a time-temperature curve.


Features:

1. The cold bath is made of stainless steel,double glass observing window,with the advanced temperature control technology,the lowest temperature degree is -70ºC, the temperature accuracy is ±0.1ºC, fitting standard GB/T 2430,SH/T 0090 and ASTM D1177, ASTM D2386  for the freezing point test requirement.
2. Automatically judge the freezing point temperature.
3. According to the different configuration,it can be used to test the freezing point etc. indexes of jet fuel,engine coolant and its concentrated solution, it's a multipurpose freezing point tester.
4. It's the floor stand structure, the work table-board is made of stainless steel, concise design, nice appearance, convenient usage, fully furnished.                                        5. The maximal characteristic: Unit as one to measure jet fuel freezing point and engine coolant freezing point; automatically stirring sample and judging the freezing point temperature, fast cooling, high precision temperature control, full spraying plastic case, wear well.


Specifications:

1. Power supply: AC 220 V±10%, 50 Hz
2. Working bath: stainless steel, double vacuum glass observing window.
3. Freezing point range: -54ºC~2ºC
4. Cold bath measurement temperature: -70ºC~30ºC
5. Temperature controlling accuracy: ±0.1ºC
6. Heating rate: 350W
7. Refrigerator system:imported refrigerator compressor
8. Sample stirring: mechanical stirring is 60~80r/min, continuously adjustable
9. Ambient temperature: (15~35)ºC
10. Relative humidity: ≤85%
11. Maximum power consumption: 2000 W
12. Dimension: 770mm×480mm×730mm

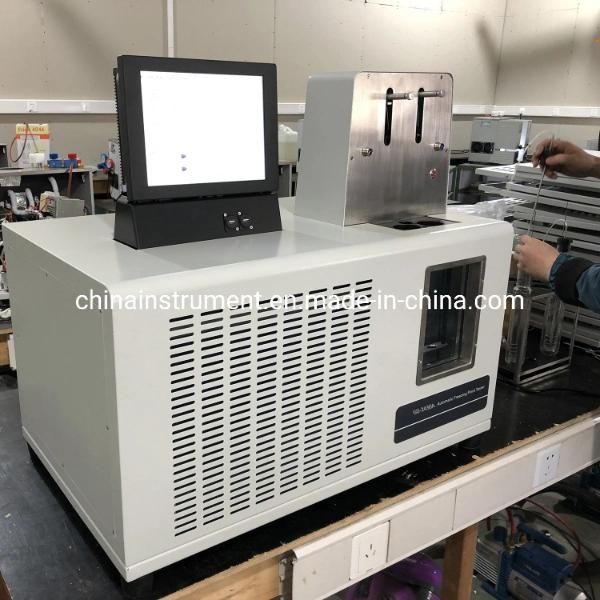

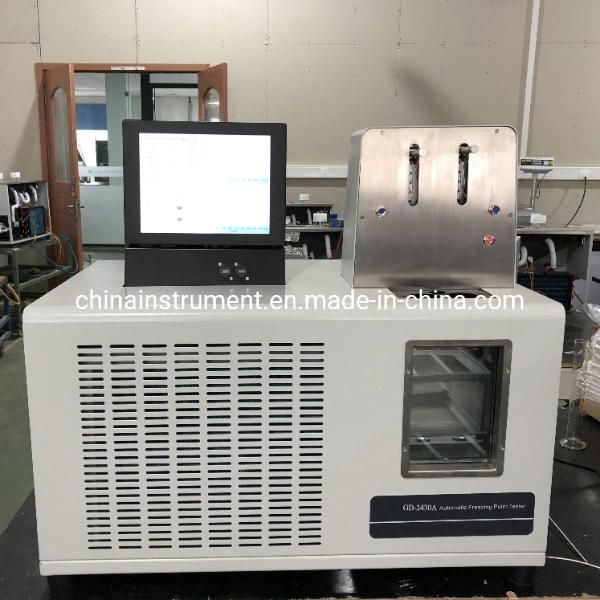

Automatic Freezing Point Analyzer in our laboratory:
