• Model NO.：GD-2806F
• Weight：0-100Kg
• Power Source：AC220V
• Softening Point Tester：Ring-and-Ball Softening Point Tester
• Ring and Ball Apparatus：Ring and Ball Apparatus for Bituminous Material
• Softening Point Apparatus：Softening Point Ring and Ball Apparatus
• Temperature Resolution：0.01c
• Beaker Effective Volume：800ml
• Application Condition：15c ~ 35c Is Relatively Stable
• Relative Humidity：No More Than 85%
• Warranty：1 Year
• Transport Package：Plywood
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：200 PCS , Month

Basic Info.

Model NO. GD-2806F Weight 0-100Kg Power Source AC220V Softening Point Tester Ring-and-Ball Softening Point Tester Ring and Ball Apparatus Ring and Ball Apparatus for Bituminous Material Softening Point Apparatus Softening Point Ring and Ball Apparatus Temperature Resolution 0.01c Beaker Effective Volume 800ml Application Condition 15c ~ 35c Is Relatively Stable Relative Humidity No More Than 85% Warranty 1 Year Transport Package Plywood Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

Ring-and-ball softening point tester for ring and ball softening point test


Introduction:

The Ring-and-ball softening point tester is designed and made as per GB/T4507 Standard Test Methods for Softening Point of Petroleum Asphalt of National Standard of People's Republic of China , T0606 Asphalt Softening Point Test (Ring-and-Ball Apparatus) in the Industrial Standard of People's Republic of China JTJ052 Specification and Test Methods of Bitumen and Bituminous Mixture for Highway Engineering and ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).  It is suitable for the determination of the softening point of various types of asphalt such as road petroleum asphalt, coal asphalt, liquid petroleum asphalt, etc. It is also suitable for the softening point test of all kinds of polymer modified asphalt, building asphalt, resin products with softening point not higher than 160 ºC.


Features:

1.   The Ring-and-ball softening point tester adopts microcomputer control, true color touch screen operation and display, linear heating of electric heating tube, automatic stirring of bath liquid, etc. The operation mode is convenient.

2.   The Ring-and-ball softening point tester can test the softening points of two samples at the same time. After the test is completed, an average value is automatically generated, the instrument beeps and automatically tests the results, the measurement results are stable and reliable.


Specifications:

1.    Power supply:    AC 220V (-5%~+10%), 50 Hz
2.    Measurement range:
       When the softening point of the sample is ≤80ºC, 5.0ºC ~ 80.0ºC, the test bath liquid uses freshly boiled distilled water as the heating medium.
       When the softening point of the sample is> 80ºC, 32.0ºC~ 160.0ºC, the test bath liquid uses glycerin as the heating medium.
3.    Temperature resolution:    0.01 ºC
4.    Heating rate:    Automatically adjusted to (5.0 ± 0.5)ºC / min after three minutes
5.    Beaker effective volume:    800ml
6.    Application condition:    15ºC ~ 35ºC is relatively stable without air convection
7.    Relative humidity:    ≤85%
8.    Total power consumption:    ≤ 850 W
9.    Overall dimensions:    270mm*200mm*350mm

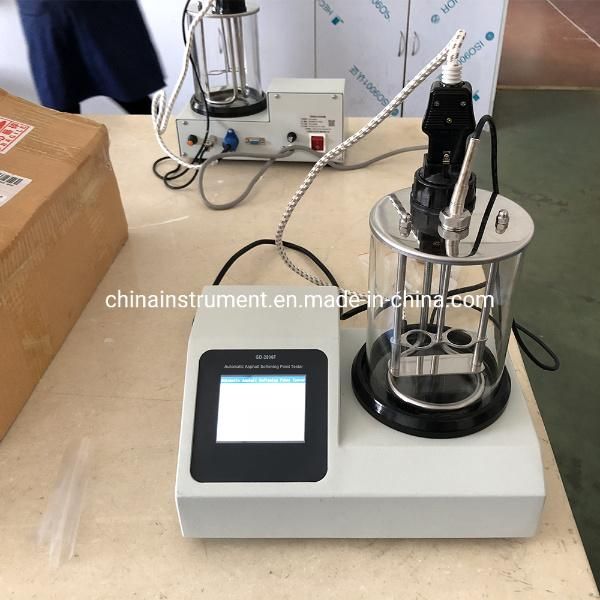

Real Picture of Ring-and-ball softening point tester
