• Model NO.：TPJB-1
• Trademark：c-tech
• Origin：China
• HS Code：90248000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. TPJB-1 Trademark c-tech Origin China HS Code 90248000 Production Capacity 1000PCS/Year

Product Description

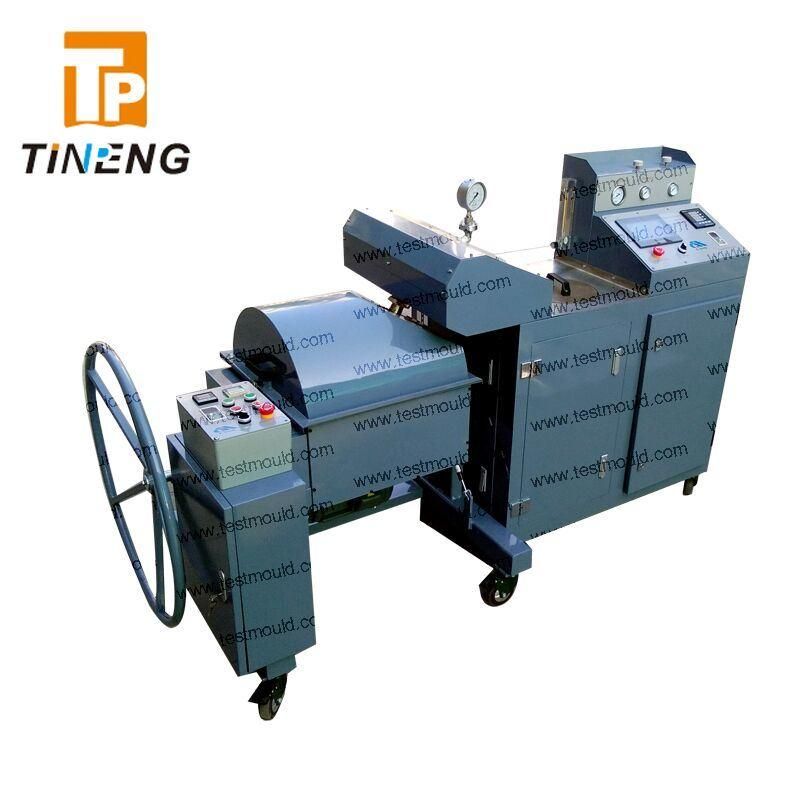

asphalt/bitumen foaming and mixing device


Technical parameters:


Specification for foaming apparatus:

1.In the mixing process, does not change the aggregate gradation

2.Speed: 60r/min (available CVT)

3.Effective mixing bucket capacity:> 30L (with heating and heat preservation)

4.Biaxial stirring structural balance

5.Voltage: 380V

6.Power: 5.5KW



Specification for mixing apparatus:

1, the working voltage: 380V, with the zero line

2, Power: 3KW

3, Temperature range: -200 °C

4, asphalt capacity: 10 liters

5, working pressure: 0 -0.6 MPa

6, the water flow :0-1000ml (adjustable)

7,asphalt pump speed :10-60HZ (adjustable)

8, the overall pipeline heating, there is no clogging, better than imported products

9, can be calculated separately bitumen flow and measurement of water flow alone.

10, Foam Preparation time: 0.01S ~ 99S (adjustable)

11, temperature accuracy: +1 °C.
