AC Resonance Test System for CVT (GDTF-CVT)

HV Hipot Electric Co., Ltd.
  • CVT Test System：CVT Calibration
  • Transport Package：Wooden Case
  • Specification：ISO, SGS
  • Trademark：HV Hipot
  • Origin：Wuhan, China

Base Info

  • Model NO.：GDTF-CVT
  • HS Code：9030849000
  • Production Capacity：500set,Year

Description

Basic Info.

Model NO. GDTF-CVT HS Code 9030849000 Production Capacity 500set/Year

Product Description

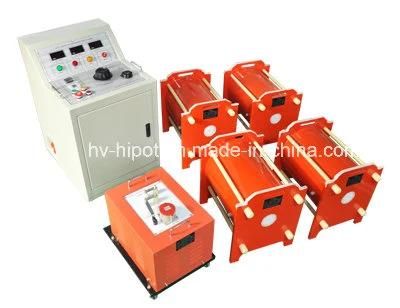

GDTF series CVT AC resonance test system is new generation of CVT special power frequency series resonance voltage boosting device. It is smaller size and more lighter weight than traditional device, meet various CVT inspection requirements of voltage grade with 35kv, 66kv, 110kv, 220kv, 330kv, 500kv. According to customer's requirement, the reactor can be divided into fixed and adjustable reactor.

Features

1. Small size, light weight, simple wiring;
2. Dry type epoxy cast, high mechanical strength, good insulation, high reliability;
3. Large capacity margin, good output waveform, easy to operate;
4. Fully protection function: Zero protection, overvoltage protection, over-current protect functions;

Specifications
1. Temperature: 10-40degree;
2. Relative humidity: <=90%;
3. Frequency: 50Hz;
4. Input Voltage: AC220 (single phase);
5. Output voltage waveform distortion: Better than 0.5%;
6. Rated input capacity: 5kVA (2sets reactor), 5kVA (4 sets reactors), 10kVA (6-8 sets reactor);
7. Rated input voltage: 220V (4 sets reactor);
8. Rated Input Current: 22.7A/45.4A;
9. Rated output voltage: 76.2KV (2 sets reactor), 152.4KV (4 sets reactor), 209.6KV (6 sets reactor), 303.1KV (8 sets reactor);
10. Rated output current: 0.5A/1A
11. Single reactor withstand voltage: 40KV/60KV
12. Single reactor capacity: 20kVA/40kVA/60kVA
AC Resonance Test System for CVT (GDTF-CVT)200kVA/200kV CVT Voltage Injection Test Set,manual control
