Cutting Machine
Shanghai Civil & Road Instrument Co., Ltd.- After-sales Service：24 Hours Online Support
- Warranty：1 Year
- Max Diameter of Workpiece：<500mm
- Mass Scope of Workpiece：121kgs
- Type：Rock Cutting Machine
- Maxcapacity：No
Base Info
- Model NO.：STG-1A
- Accuracy Grade：1
- Load Way：No
- Loading Method：No
- Display：Digital
- Control：No
- Weight：121kgs
- Power Source：AC220V
- Oil Cylinder Position：No
- Product Name：Stg-1A Cutting Machine
- Power：2.2kw
- Rotation：2800rpm
- Diamond Blade：Dia 350mm, Thickness 3mm
- Installment Hole：Dia 25.4mm
- Max. Cutting Length：600mm
- Max. Cutting Depth：80mm
- Cutting Width：4mm
- Transport Package：Wooden Case
- Specification：0.68CBM
- Trademark：SHTG
- Origin：China
- HS Code：9031809090
- Production Capacity：100PCS,Month
Description
Basic Info.
Model NO. STG-1A Accuracy Grade 1 Load Way No Loading Method No Display Digital Control No Weight 121kgs Power Source AC220V Oil Cylinder Position No Product Name Stg-1A Cutting Machine Power 2.2kw Rotation 2800rpm Diamond Blade Dia 350mm, Thickness 3mm Installment Hole Dia 25.4mm Max. Cutting Length 600mm Max. Cutting Depth 80mm Cutting Width 4mm Transport Package Wooden Case Specification 0.68CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/MonthProduct Description

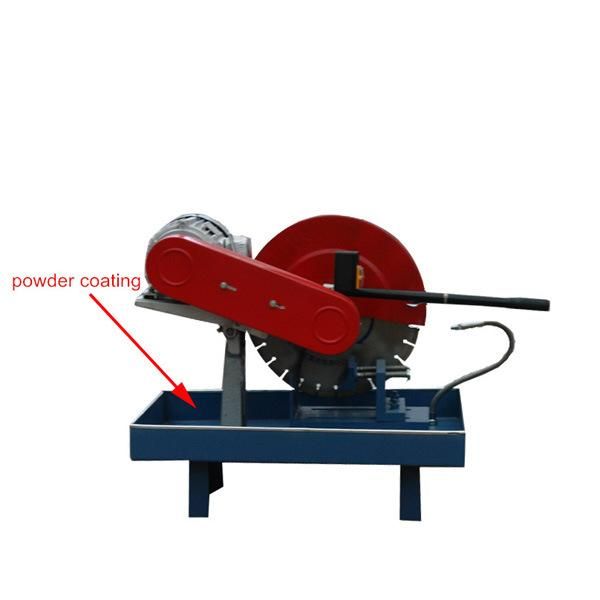

STG-1A Rock Cutting Machine
| Power | 2.2kW |
| Rotation | 2800rpm |
| Diamond blade dia | 350mm |
| Diamond blade thickness | 3mm |
| Installment hole | dia 25.4mm |
| Max. cutting length | 600mm |
| Max. cutting depth | 80mm |
| Cutting width | 4mm |
