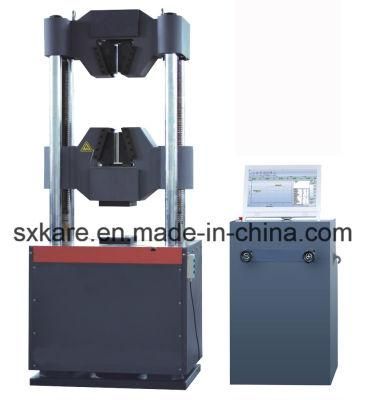

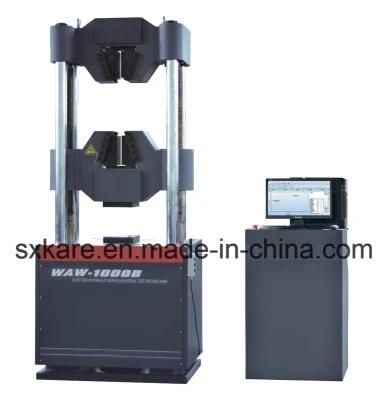

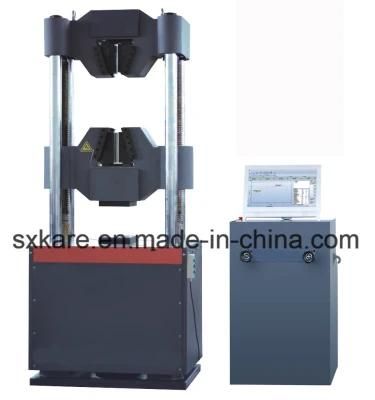

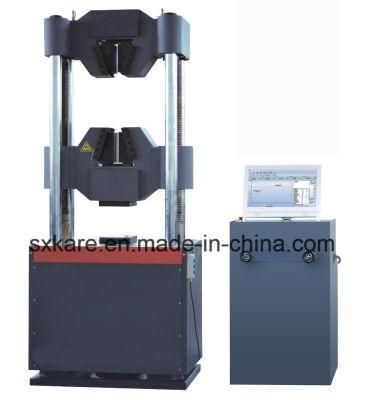

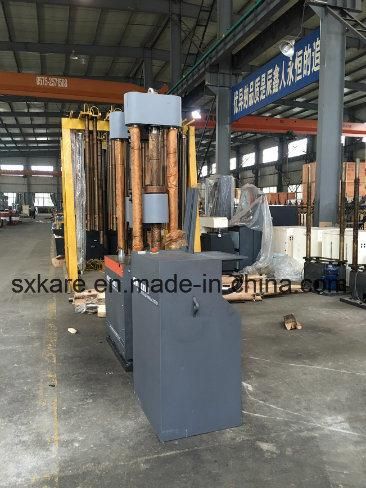

• Model NO.：WAW-2000B
• Oil Cylinder Position：Under
• Column Qty：4
• Lead Screw Qty：2
• Transport Package：Wooden Case
• Origin：Zhejiang
• HS Code：9024101000
• Production Capacity：20 Sets,Month

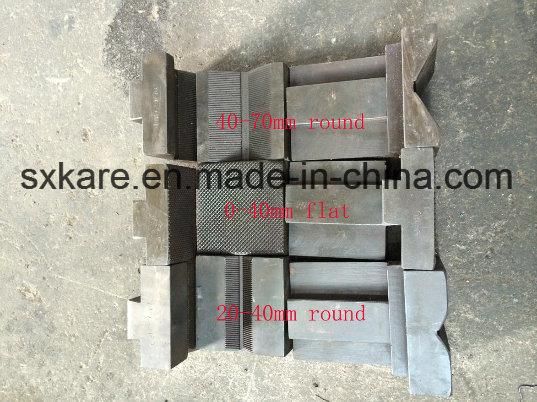

WAW-2000BMax. testing force2000KNMeasuring range2%~100%F.SRelative error to force value (%)±1Measuring isodromic ratio control0.1-100%F.S./min 0.2-100%F.S./min (precision type)Deformation isodromic ratio control0.1-100% F.S./minDisplacement isodromic ratio control0.5-50mm/minSpeed precision±5% set pointMax. tensile test space1000mmMax. distance between upper and lower presser disks1000mmFlat sample holding thickness0-40mmDiameter of round specimen20-70mmPiston stroke250mmUpper and lower platen size (mm)235×235Bending test pressed rolling distance60~750mmTensile and compression space between two columns700mmMax. platen rise speed≥70mm/minMax. moving beam speed≥300mm/minMotor power≈2.5KWMain body dimension (L×W×H) (mm)1100×760×2700Control & measurement cabinet dimension(L×W×H) (mm)1080×650×1200Weight≈4500KgNoise≤75dB
