• Model NO.：MS Series
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Max. Loading (Kg)：50~800
• Pulse Acceleration ( M/S2)：50~1200
• Pulse Width (Ms)：20~3
• Frequency (Times /Min)：10~80
• Max. Dropped Height (mm)：60
• Pulse Type：Half Sine Wave
• Meet Standard：Mil-Std-810g
• Power Supply：AC220V, 1 Phase
• Transport Package：Wooden Case
• Specification：MS Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：300 Sets Per Year

Overview Product Description

Aapplication:

Mechanical Shock Testing Machine, Mechanical Impact Test Equipment with MIL-STD-810G Standard is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards And other Environmental testing.

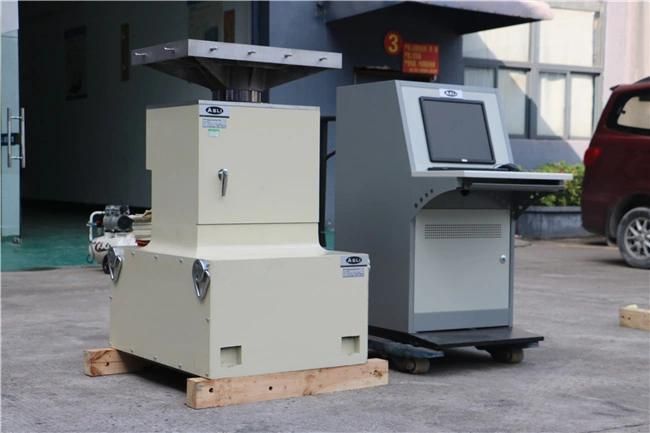

Mechanical Shock Testing Machine
Shock and measure controller



Mechanical Shock Testing Machine Manufacturer Features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. Extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.Product Parameters Mechanical Shock Testing Machine  Technical Parameters ModelMS-50MS-100MS-200MS-500MS-800Load capacity (kg)50100200500800pulse  acceleration( m/s2)50~120050~100050~100050~50050~500Pulse Width (ms)20~320~320~320~320~3Frequency     (times /min)10~8010~8010~8010~8010~80Table Size (mm)500*700700*700700*700800*8001000* 1000Max. Dropped Height  (mm)6060606060Pulse Type Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)External Dimension        W*H*D (mm)800*1300*
1000800*1300*
1000850*1350*
11001000*1300*
19001000*1300*

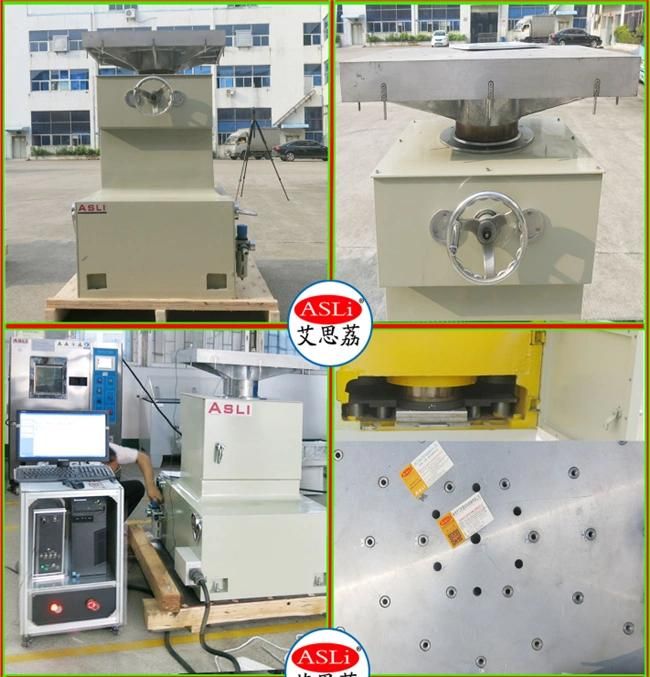

1900Weight (Kg)11001250200030003500Protection Device Door protection, over-load protection, zero signal protectionPower AC 220V(±10%), 1 Ph 3 Lines ,50/60HZ;   AC 380 V(±10%) ,3 Ph  5 Lines,50/60HZEnvironmental Conditions Temperature: 25degree C ±5.0degree C humidity: <85%(25degree C) Detailed Photos

Customer Traning at ASLI factory:

Application:
If you need more information about Mechanical Shock Testing Machine, Mechanical Impact Test Equipment with MIL-STD-810G Standard, please feel free to send your inquiries.
