Coarse-Grained Soil Constant Water Head Permeameter
Zhuozhou Tianpeng Imp. & Exp. Trade Co., Ltd.- Transport Package：Wooden Cases
- Trademark：C-TECH
- Origin：China Mainland
Base Info
- Model NO.：ST-300
- HS Code：90248000
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. ST-300 HS Code 90248000 Production Capacity 100 Sets/MonthProduct Description

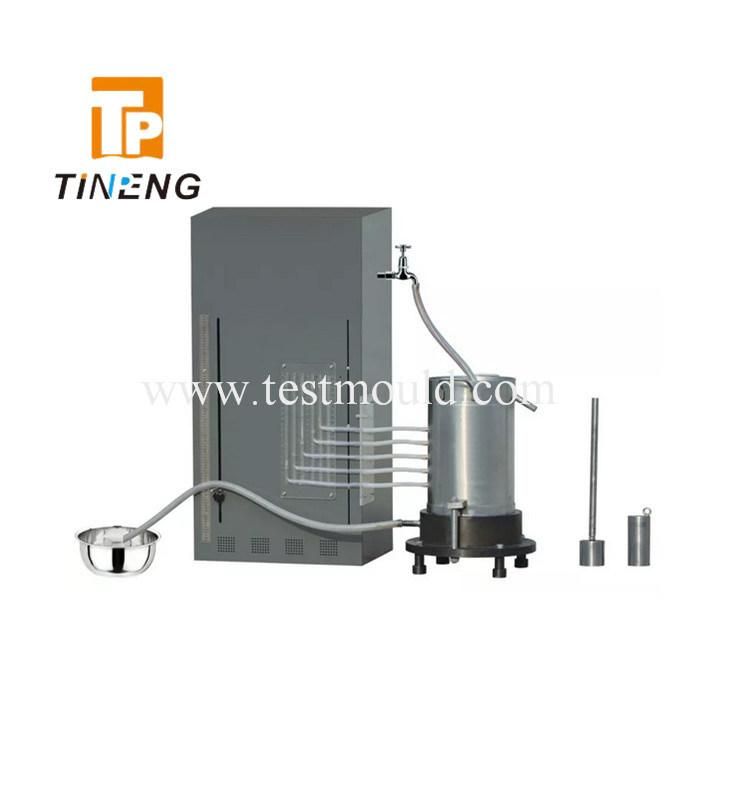

Coarse-Grained Soil Constant Water Head PermeameterModel ST-300 Coarse-Grained Soil Constant Water Head Permeameter is used to determine the permeability coefficient of coarse-grained soil and graded crushed stone with a maximum particle size of not more than 75mm.
Water tank volume: 80L
Inside dia. of cylinder mould: 300mm
Height of cylinder: 500mm
Thickness of cylinder wall: 10mm
Measuring pressure tube no.: 5pcs
Inside dia. of pressure tube: 8mm
graduated resolution of pressure tube: 1mm
Distance b/w the measuring pressure holes: 50mm
Diameter od water seepage hole: 16mm
Inside dia. of ovweflow tube: 16mm
Aperture size of porous plate size: 16mm
Weight: 150kg approx.
