• Model NO.：GD-8019
• Warranty：One Year
• Product Name：ASTM D381 Existent Gum Test Apparatus
• Transport Package：Wooden Case
• Trademark：GOLD
• Origin：Chongqing
• HS Code：903180900
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. GD-8019 Warranty One Year Product Name ASTM D381 Existent Gum Test Apparatus Transport Package Wooden Case Trademark GOLD Origin Chongqing HS Code 903180900 Production Capacity 100 Sets / Month

Product Description

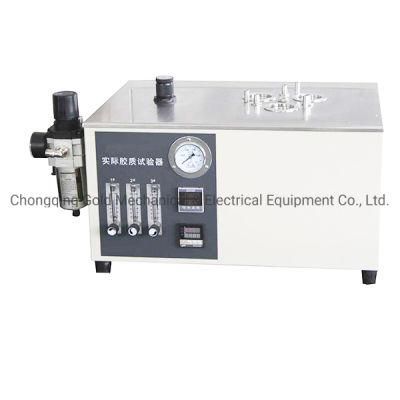

GD-8019 ASTM D381 Existent Gum Test Apparatus


Introduction:
GD-8019 ASTM D381 Existent Gum Test Apparatus is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381Standard test method for gum content in fuels by jet evaporation. Existent Gum Tester is suitable to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent gum content of aviation turbine fuel).



I. Main technical features:
1. Existent Gum Tester equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is good.
2. The material of working bench is stainless steel. It has 3 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 3 determinations at the same time.
3. Existent Gum Tester is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.



II. Main technical specifications:
1. Power supply: AC(220±10%)V,50Hz,2500W
2. Dimension of evaporation bath: φ260mm×130mm
3. Sample positions: 3 positions
4. Dimension of sample positions: φ51mm×70mm
5. Working temperature: (160~165)ºC
6. Temperature control: Automatic
7. Temperature display: Digital display
8. Flow display: Displayed by a ball float type flowmeter.
9. Working pressure of air reducing valve: 0.035MPa
10.Air source: External connection,over (1000±150)mL/s
Note:A air compressor is equipped
