• Model NO.：AR-132B
• Display：Digital
• Control：Manual Control
• Weight：420 G
• Power Source：Built-in Rechargeable Li-ion Battery
• Parameter：Ra.Rz.Rq.Rt
• Ra,Rq：0.005~16.00 Um , 0.020~629.9 Uinch
• Rz,Rt：0.020~160.0 Um , 0.078~6299 Uinch
• Accuracy：Not More Than 10%
• Probe Radius：5um
• Transport Package：Portable Aluminum Case
• Specification：140x52x48 mm
• Trademark：AM
• Origin：China
• HS Code：9031809090
• Production Capacity：999PCS,Month

Measuring Range

Ra,Rq:0.005~16.00 um / 0.020~629.9 uinchRz,Rt:0.020~160.0 um / 0.078~6299 uinchAccuracyNot more than ±10%Fluctuation of display valueNot more than 6%Resolution

0.001μm, 0.01μm, 0.1μm

ProbeRadius5μmMaterialDiamondMeasurement Force4mN(0.4gf)Angle90°Vertical Radius48mmMaximum Driving Stroke17.5mm/0.7inchCutoff Length0.25mm, 0.8mm, 2.5mm





Driving Speed



Measuring

Sampling Length: 0.25mm   Vt: 0.135mm/sSampling Length: 0.8mm     Vt: 0.5mm/sSampling Length: 2.5mm     Vt: 1mm/sReturningVt=1mm/sProfile digital filterFiltered ProfileRC,PC-RC,GAUSSNon-Filtered ProfileD-PEvaluation length1~5L optionalData Memorize7 GroupsPower Supply

Built-in rechargeable Li-ion battery

Size140x52x48 mmWeight420 g  (Not including batteries)



Product Accessories







Standard Accessories

Main Unit

Small ScrewdriverStandard Boilerplate

Standard Sensors,

Carrying CaseOperation Manual



Optional Accessories

USB data outputRS-232 data outputBluetooth™ data output



Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.

The following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output



Bluetooth Accessories



Amittari instruments generally can be  supplied  with Bluetooth data  output function ( except  few  instruments ) . As  Bluetooth data output  is included  in optional accessories, not  standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact  with the customer-service worker  if you need Bluetooth data output.

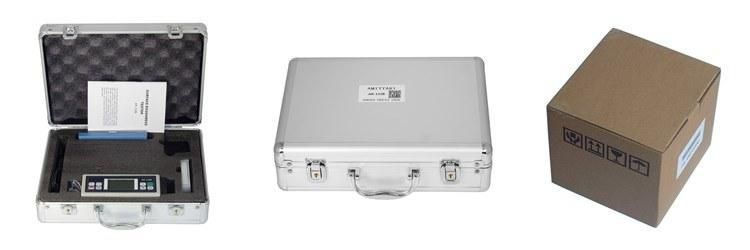

Package
