• Model NO.：PHW-15000
• Loading Method：Dynamic Load
• Display：Needle
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Certificate：Ce,ISO,SGS,BV.
• Unbalance Reduction Ria：90%
• Delivery Time：25 Days
• Warranty：1 Year
• Number of Packing：2 PCS
• MOQ：1 Set Rotor Dynamic Balancing Machine
• Color：Blue
• Usage：Auto Testing Machine
• Item：Dynamic Balancing Machine
• Power：Electronic
• Transport Package：Packed in Standard Export Wooden Case
• Specification：ISO9001: 2008 CE SGS
• Trademark：JP
• Origin：Shanghai China
• HS Code：9031100090
• Production Capacity：1000 Sets,Month

Technical data at a glancePHW-10000HPHW-15000PHW-20000PHW-30000Mass Scope of Workpiece(kg)10000150002000030000Max Diameter of Workpiece(mm)Φ2400Φ2800Φ2800Φ3000Distance Between Two Support Bearings(mm)Min 320Min 450Min 450Min 500Journal Diameter Scope of Workpiece(mm)Φ60~400Φ60~400Φ60~400Φ80~500Max Distance between Driving Flange and Right Bearing Support (mm)2500420052006000Rotational Speed of the Main Axis(r/min)Stepless speed
regulation195,336,561,
916,13744)195,336,561,
916,13744)127,218,365,
596,895,11044)Motor Power (kw)221)301)551)751)Torque of Universal Joint Shaft(N·m)2250225050007800Length of Bed (mm)5500600070008000Min Achievable Residual Unbalance Amount(emar)≤2g· mm/kg≤2g· mm/kg≤2g· mm/kg≤2g· mm/kg
1) Frequency conversion
2) Can add to 75-180
3)Can add to 120~240
4)Stepless speed regulation
 Range of Application
This balancing machine is mainly used in checking the balance of rotatable bodies such as good-sized and medium-sized motors, spindles of machine tools, blower, centrifuges, generator rotor , clinopodiums, pump impeller. drying cylinder. ceramic machinery,rollers,rubber sticks,etc.. Driven by gear box universal coupling , equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. With wide speed range,large driving power, high precision and easy operation etc

Customer use display



Eletrical Measuring System

Delivery inspection



Special Features

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanxiang Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments

Package and transport



About us & Certificate

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. We are professional balancing machines manufacturer, which located in international City Shanghai. The Company was founded in 2004,covering an area of 10000 square meters , and has 4 sales center in domestic.
We have ten series and more than 40 models of balancing machines, including  belt drive balancing machine, universal joint drive balancing machine, vertical balancing machine, cross flow fan blade balancing machine, drive shaft balancing machine, self-drive balancing machine and auto-positioning balancing machine, two-plane axial flow balancing machine, smart balancer, automatic balancing machine, soft bearing balancing machine, manual milling machine etc.
Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001:2008 authentication of TUV,CE Certificate of Ente Certificazione Macchine

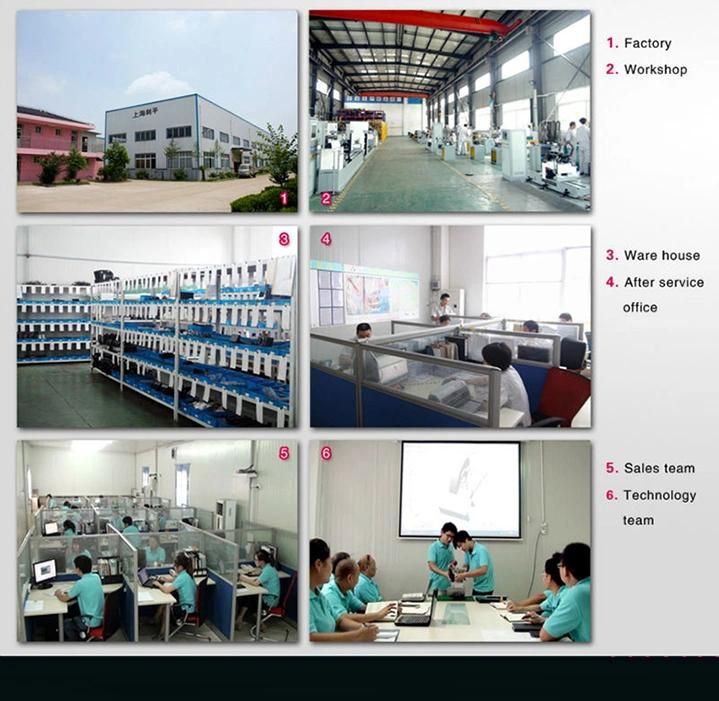

Factory Outlook



Certificates
