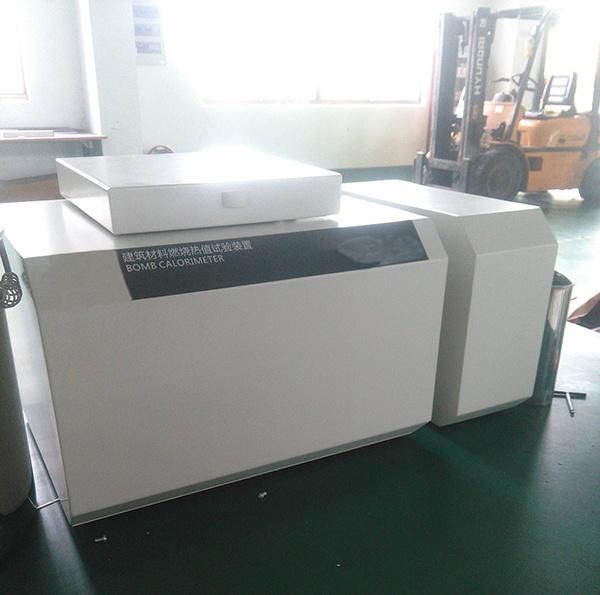

ISO 1716 Building Material Combustion Heat Tester
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Item Name：ISO 1716 Building Material Combustion Gross Heat T
- Name：ISO1716 Bomb Calorimeter
- Application：Determine The Heat of Combustion of Building Produ
- Reference Standards：ISO1716, En ISO 1716, GB14402
- Control Method：PC Control, Fully Automatic
- Temperature Detection：(4.5-50)C, 0.0001c, Resolution, Using The PT100 S
Base Info
- Model NO.：GD-1716
- Bomb Vessel Capacity：(300+,-50) Ml
- Heat Capacity of The Instrument：About 10000j , K
- Features：Test Procedure Safe and Reliable, Easy to Operate
- Power Supply：AC220V+,-10%, 50Hz
- Transport Package：Packed in Veneer Case
- Specification：Refer to the specifications
- Trademark：GOLD
- Origin：Chongqing, China
- HS Code：9031809090
- Production Capacity：100 Set,Month
Description
Basic Info.
Model NO. GD-1716 Bomb Vessel Capacity (300+/-50) Ml Heat Capacity of The Instrument About 10000j / K Features Test Procedure Safe and Reliable, Easy to Operate Power Supply AC220V+/-10%, 50Hz Transport Package Packed in Veneer Case Specification Refer to the specifications Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 100 Set/MonthProduct Description
ISO 1716 Building Material Combustion Heat TesterIntroduction:The burning calorific value of the building materials represents an important parameter of building materials in fire hazard and is an essential basic data for calculating the heat released by building materials and fire load.This tester is the latest version of the national standard gb8624-2012 building materials burning performance classification test one of the necessary equipment;The combustion calorific value test device is developed according to GB14402 standard.The calorific value of combustion of building materials is measured in an oxygen bomb calorimeter with constant heat capacity.Features:
- Small smart and user- friendly.
- Automatic control of the temperature of water with stirrer.
- Applicable to measure the lower heat of combustion, repeatability error <40 J/g.
- Equipped with Oxygen meter.
- Benzoic acid powder or pill for calibration.
- Integrated seamless stainless steel Oxygen cell for pressure standing of 21Mpa.
- Equipped with cigarette specimen mould.
- Standard: EN ISO 1716
| Item Name | ISO 1716 Building Material Combustion Heat Tester |
| Temperature resolution | 0.0001ºC |
| Measuring time | Around 11mins |
| Power supply | 220±20V, 50Hz±1Hz |
| Weight | 60kg |
| Dimension | 650mm*390mm*390H mm |
| Air source | Oxygen |
