• Model NO.：WDS-100
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：100-500Kg
• Power Source：AC220V
• Delivery Time：5 Days After Get Payment
• Certification：ISO Ce
• Max Load：100kn
• Transport Package：Export Package
• Specification：750*510*1900mm
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDS-100 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Delivery Time 5 Days After Get Payment Certification ISO Ce Max Load 100kn Transport Package Export Package Specification 750*510*1900mm Trademark HST Origin China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

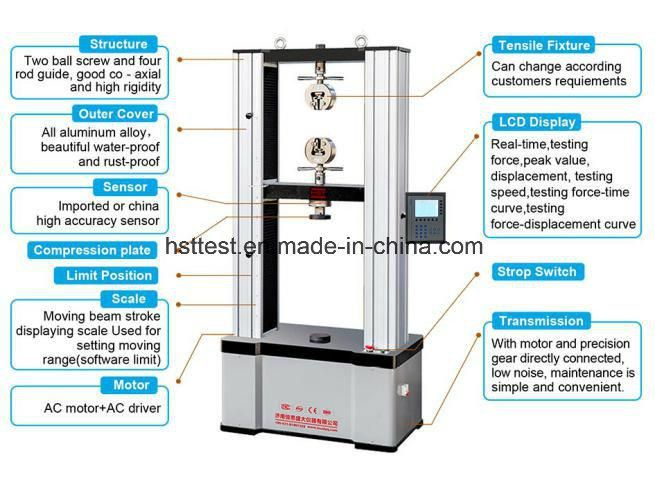

100kn Digital Display Universal Tensile Test Equipment (WDS-100)



1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:

Model	WDS-100
Max. Load	100 KN
Structure	Four-column Floor Model (Upper Is Tensile And Lower Is Compression)
Control Method	Single Chip Control
Load Accuracy	1 Class
Load Range	2%~100%F·S
Displacement Resolution	0.04um
Test Speed	1~200mm/min
Tensile Space	600mm (Can be customized)
Compression Space	600mm (Can be customized)
Test Width	450mm (Can be customized)
Power Supply	AC220V±10%, 50Hz (Can be customized)
Grips	Wedge Type, Plate Type And Other Grips As Customers' Demand
Weight	400 KG
Dimension	750*510*1900mm

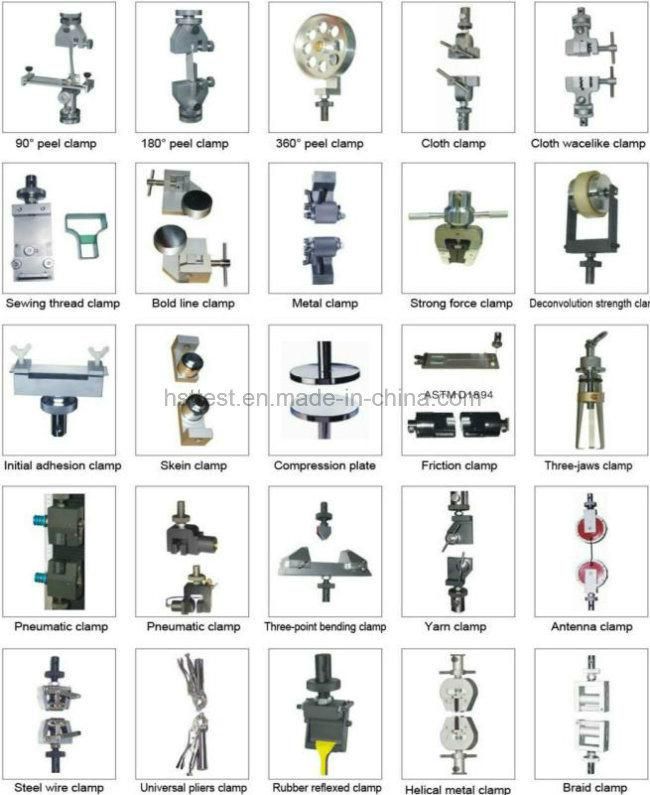

Fixtures for choice according to different material:
