• Model NO.：WAL-2000
• Accuracy Grade：1
• Load Way：Hydraulic
• Loading Method：Static Load
• Display：Computer or Digital
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Top
• Deliverying Time：30-80 Working Days
• Force Range：2%-100%Fs
• Test Force Accuracy：1 Class
• Max Tensile Space：15000mm or Customized
• Displacement Error：0.05%
• Displacement Resolution：0.005 mm
• Piston Stroke：1500mm According to The Tensile Space
• Max Piston Speed：100mm,Min or Customized
• Bolt Distance：550mm

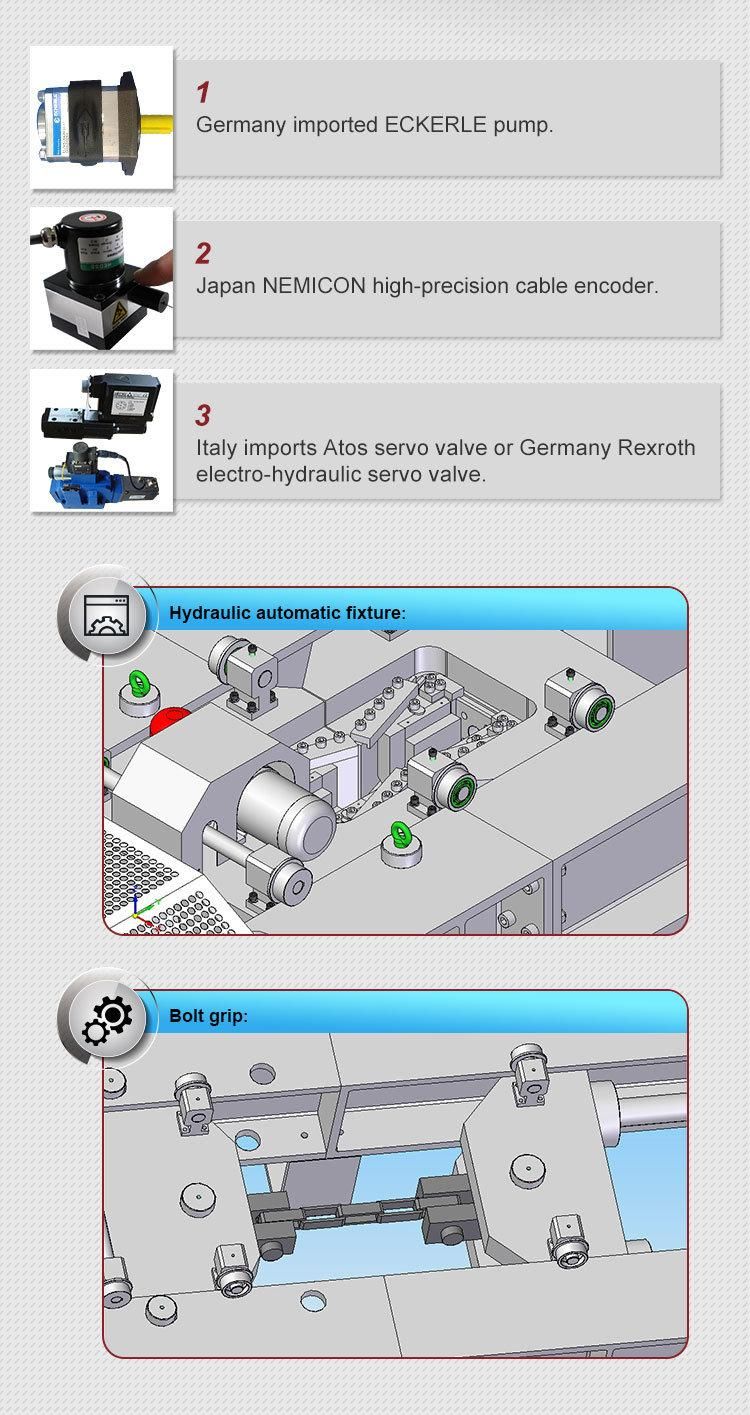

• Grip：Bolt Type and Hydraulic Clamp
• Transport Package：Standard Package
• Specification：20 feet container
• Trademark：HST,OEM
• Origin：China
• HS Code：9024800000
• Production Capacity：10 Sets, Months

Basic Info.

Model NO. WAL-2000 Accuracy Grade 1 Load Way Hydraulic Loading Method Static Load Display Computer or Digital Control Computer Control Weight >2000Kg Power Source AC380V Oil Cylinder Position Top Deliverying Time 30-80 Working Days Force Range 2%-100%Fs Test Force Accuracy 1 Class Max Tensile Space 15000mm or Customized Displacement Error 0.05% Displacement Resolution 0.005 mm Piston Stroke 1500mm According to The Tensile Space Max Piston Speed 100mm/Min or Customized Bolt Distance 550mm Grip Bolt Type and Hydraulic Clamp Transport Package Standard Package Specification 20 feet container Trademark HST/OEM Origin China HS Code 9024800000 Production Capacity 10 Sets/ Months

Product Description

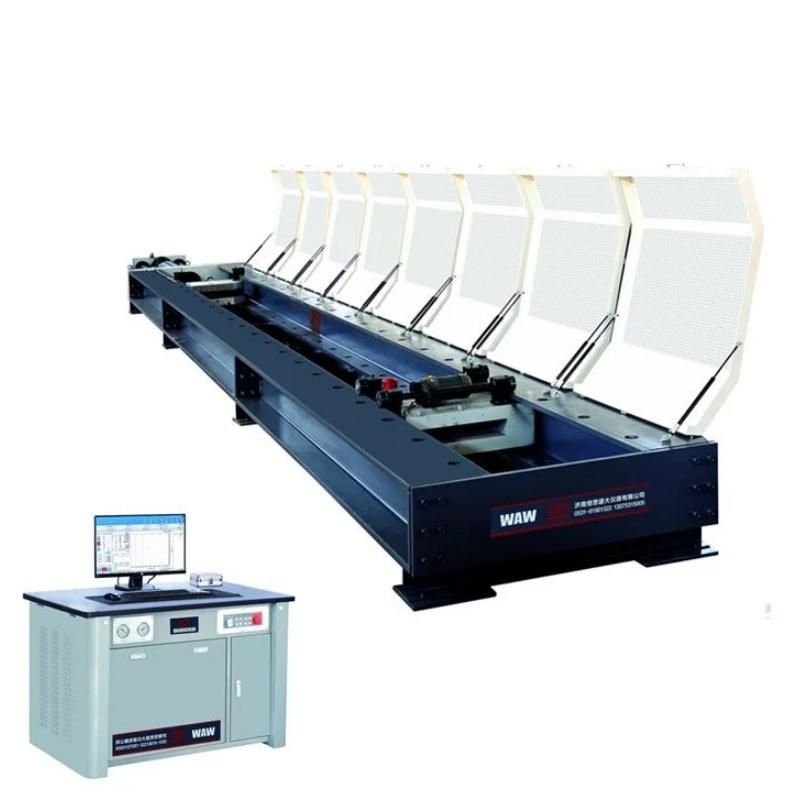

Chain Webbing Sling Horizontal Tensile Testing Machine 2000kN 200Ton+ Horizontal Test Bed


1. Application :

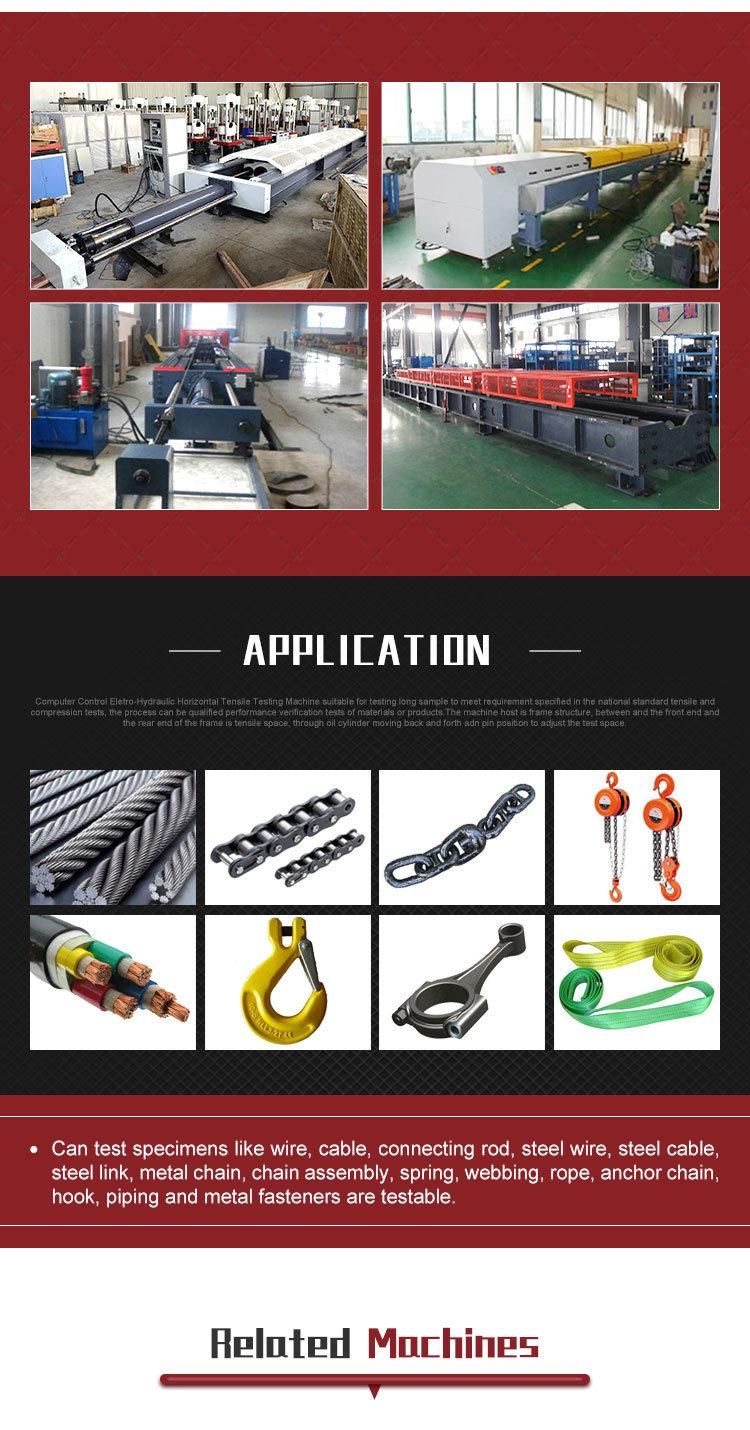

WAW-L series Computer Control Eletro-Hydraulic Horizontal Tensile Testing Machine adopting hydraulic drive, electro-hydraulic servo control technology, computer data acquisition and processing, enabling closed-loop control and automatically test high-precision test equipment,mainly composed by the host, oil source (hydraulic power source), measuring and control systems and test grip, the maximum test force 300kN with 1 class test accuracy . Meet the test standard ASTM E4. Can test specimens like wire, cable, connecting rod, steel wire, steel cable, steel link, metal chain, chain assembly, spring, webbing, rope, anchor chain, hook, piping and metal fasteners are testable

2. Host
It is a suitable for testing long sample to meet requirement specified in the national standard tensile and compression tests, the process can be qualified performance verification tests of materials or products .

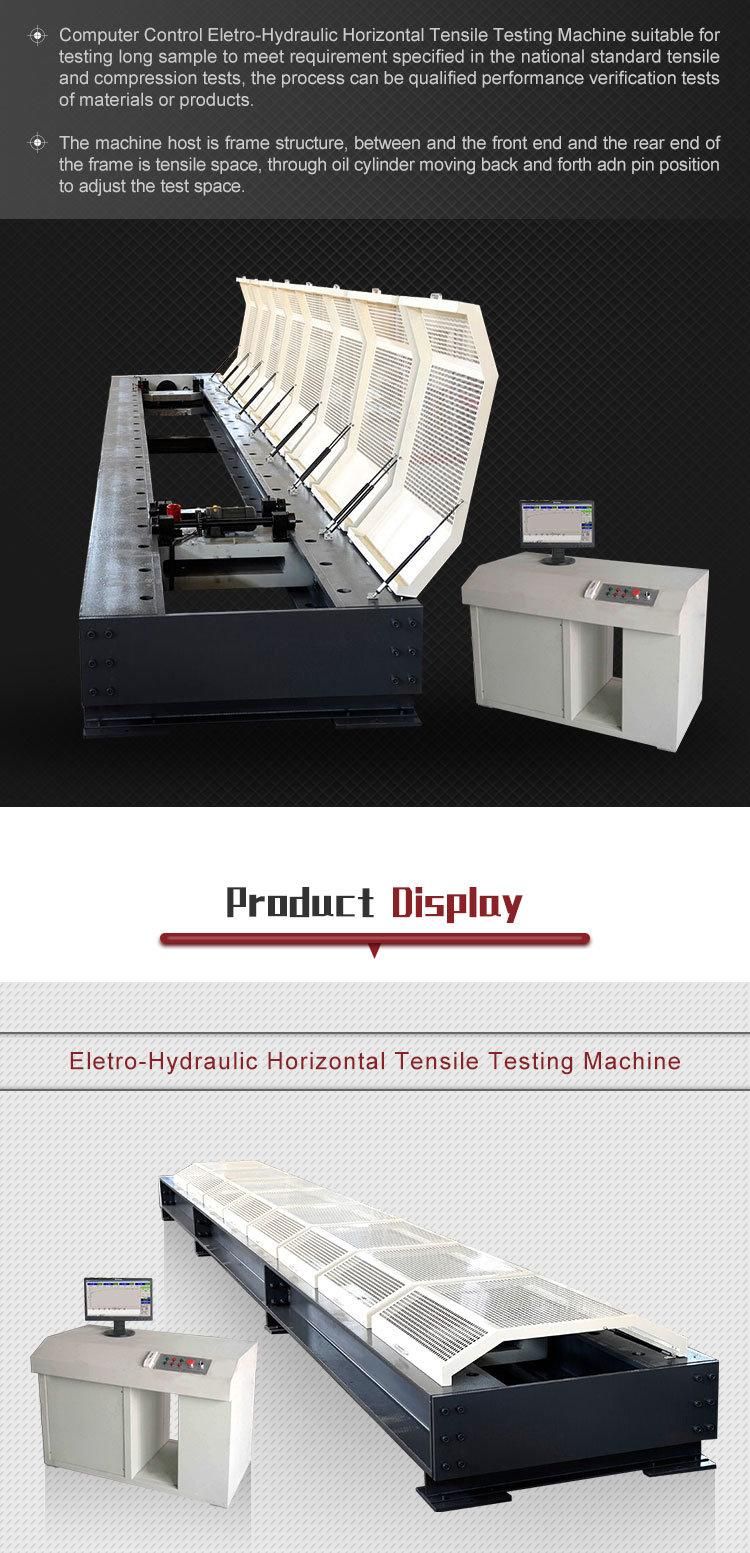

The machine host is frame structure, between and the front end and the rear end of the frame is tensile space, through oil cylinder moving back and forth adn pin position to adjust the test space .

3. Main technical parameter

Model	WAL-2000	WAL-5000
Max.Load(kN)	2000	5000
Load Range	2%~100% of Full Scale	2%~100% of Full Scale
Load Accuracy	±1%	±1%
Relative Error of Displacement	±1%	±1%
Stress Speed (Mpa/s)	1-45	1-45
Tensile Space(mm)	15000 (can customize)	15000 (can customize)
Piston Stroke(mm)	1500 (can customize)	1500 (can customize)
Method of Specimen Clamping	Bolt Method	Bolt Method
Effective Testing Space(mm)	Width 750	Width 750
Control Mode	Computer Control	Computer Control
Power Supply	380v±10%,50Hz	380v±10%,50Hz
