• Model NO.：HD-A534
• Control：Computer Control
• Weight：500-1000Kg
• Power Source：AC380V
• Delivery：Within 15 Days When Receive The Deposit
• Maximum Specimen Weight：600kg
• Motor：Panasonic Servo Motor
• Device Width：Less Than 2.5m
• Base Plate Dimension：2200*2100mm
• Calibration Accuracy：±1% F.S
• Clamping Plate Adjustable Height：0~1000mm
• Clamping Plate Adjustable Width：200~2000mm
• Clamping Plate Size：Height 48inch*Depth 48inch
• Transport Package：Strong Wooden Case
• Specification：ASTM D642 ISTA 6- SAMS CLUB
• Trademark：Haida
• Origin：China
• HS Code：9024800000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. HD-A534 Control Computer Control Weight 500-1000Kg Power Source AC380V Delivery Within 15 Days When Receive The Deposit Maximum Specimen Weight 600kg Motor Panasonic Servo Motor Device Width Less Than 2.5m Base Plate Dimension 2200*2100mm Calibration Accuracy ±1% F.S Clamping Plate Adjustable Height 0~1000mm Clamping Plate Adjustable Width 200~2000mm Clamping Plate Size Height 48inch*Depth 48inch Transport Package Strong Wooden Case Specification ASTM D642 ISTA 6- SAMS CLUB Trademark Haida Origin China HS Code 9024800000 Production Capacity 50 Sets Per Month

Product Description

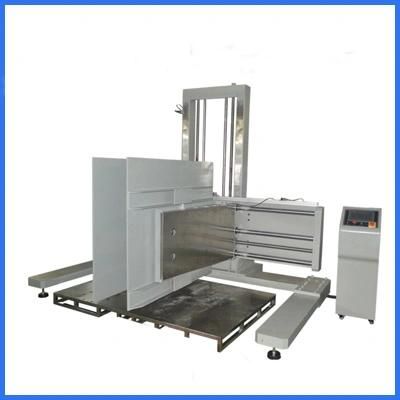

                       Micro-computer Control Clamping Force Testing Machine

Introduction

The ISTA Corrugated Carton Clamp Compression Tester is simulated the impact strength of packaging in the real circumstance of transportation, for example, the transportation of goods. This product is applied to the scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers and foreign trade or transportation departments.

Design Standard

ASTM D642 ISTA 6- SAMS CLUB ISTA 3J

Technical Parameters of ISTA Corrugated Carton Clamp Compression Tester:


Specimen shape	Parallelepiped transport package
Max. Specimen weight	500kg
Clamping pressure force	According to the transport diagram on the test sample, the operator can add 400~3000Lb (adjustable) pressure force on the corresponding surface
Clamping board size	H*D 48*48inch
Clamping board adjustable height	0~500mm
Elevation speed	10~300mm/min optional
Clamping board expansion width	200~2000mm
Baseboard dimension	W*D 1500*1500mm
Clamping board requirement	Make sure the two clamping board are flat, parallel and non-deform under the work condition(2000Pound) and clamp board and land are vertical. Clamping board thickness no less than 25mm.
Corrector of force	Force value display used to correct clamping force
Force precision	National standard 1.6 level
Operation	Manual operating rod simulates fork truck actual operating actions such as clamping control, opening, lifting up, lifting down or automatic switching mode operation (clamping board thickness no less than 25mm)
Device width	Less than 2.5m

(The table parameters for the company Standard Model parameters, we support customer customization parameters)

Clamp Compression Testing Method of Small Products

Before clamp testing, verify that the clamp for using the clamp force indicator. The indicator should be placed between the axes of the platen articulation points approximately 1/2 way up the platens.
During clamp compression testing of small products, 4 samples will be utilized as outlined below.

1. If, when oriented for clamp testing (based on the handling graphics) the sides perpendicular to the platens of a single sample ≤ 24" (61cm), then the 4 sample should be placed in a"side by side"oritentation as shown to the fig 1(with 2 samples on the bottom and 2 on the top)

2. If, when oriented for clamp testing the sides perpendicular to the platens of a single sample are >24" (61cm),, then the 4 samples should be placed in a top-bottom orientation as shown fig 2. If, when placed 4-high, any of the samples are completely above the top of the platens, that sample can be removed from clamping in this orientation only(fig 3 shows 3 MHC's ready for clamp testing with the 4th sample removed from testing in this orientation)

3. Each time the samples are clamped, the force should be applied for a minimum of 15 seconds and not to exceed 1 minute.

4. Apply the clamp force on the samples with the platens resting on the floor and the samples flush with the front edge of the platens (see fig2). If the samples are too large for the clamps to be flush to front edge, clamp as close to the edge as possible.

5. Clamp the product a total of 10times with the clamps in the flush orientation.

6. Apply the clamp force on the packaged product with the platens in a 2×2 inch offset position(see fig 3). Both the horizontal and vertical offset dimensions are measured at the front bottom corner of the platen. If the package is too large for the clamps to be positioned 2-inches from the front edge, clamp as close to this position as possible.

7. Clamp the product a total of 10 times with the clamps in the offset position.

8. Repeat the flush and 2x2 inch offset camping on all other sides of the product that are identified in the handling graphics as acceptable for clamp handling. Please note, depending on the box geometry, you may use both the side-by-side and top-bottom orientation during clamp testing.

Clamp Compression Testing Method of Large Products

1.Before placing the packaged product between platens, verify that the clamp force using the clamp indicator. The indicator should be placed between the axes of the platen articulation points approximately 1/2 way up the platens.

2.Each time the product is clamped, the force should be applied for a minimum of 15 seconds and not to exceed 1 minute.

3. Apply the clamp force on the sample with the platens resting on the floor and the front edge of the platens flush with the front of the package. If the package is too large for the clamps to be flush to front edge (i.e., large refrigerator, tractor etc.), clamp as close to the edge as possible.

4. Clamp the product a total of 10 times in the flush orientation.

5. Apply the clamp force on the packaged product with the platens in a 6×6 inch(15.2x15.2cm) offset position(see fig 5 ). Both the horizontal and vertical offset dimensions are measured at the front bottom corner of the platen. If the package is too large for the clamp to be positioned 6-inches from the front edge (i.e., large refrigerator, tractor etc.), clamp as close to this position as possible.

    1)Exception number 1: for large products with an obvious, visible external skid(see fig 6), offset clamp testing is not conducted if the product does not extend beyond any part of the skid and there is some form of handling graphic or note that indicates to clamp only from the skid. If there is no graphic or not indicating this or there is some overhang beyond the skid, then the entire clamp test protocol is conducted.

    2) Exception number 2: If the product height, when placed in its normal shipping orientation, is ≤ 12 inches, the 6 x6 inch offset testing is not conducted.

6. Clamp the product a total of 10 times with the clamp in the 6 x6 inch offset position.

7. Repeat step 5.2.5 except with a 2 x6 inch offset clamp position. The 2 x6 inch offset is similar to the 6 x6 inch offset except the platens are oriented such that they are 2-inches from the floor and 6-inches back from the package's front edge. If the package is too large for the clamps to be positioned 2-inches from the front edge (i.e., large refrigerator, tractor etc.), clamp as close to this position as possible.

8. Repeat flush and offset clamping on all other sides of the product that are indicated in the handling graphics as acceptable for clamp handling.
According to verdict standards, if there is one item failed the test, then put forward the "Test Failure Handling Sheet".



Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Packaging & Shipping:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.


Certificate


Customer Feedback


FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
