Automatic Metal Material Tensile Strength Testing/Test Machine

Dongguan Haida Equipment Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Type：Rubber Tensile Testing Equipment
  • Maxcapacity：200kg
  • Accuracy Grade：0.5
  • Load Way：Electronic Load

Base Info

  • Model NO.：HD-B609B-S
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Test Speed：0.1-500mm,Min(Convertible)

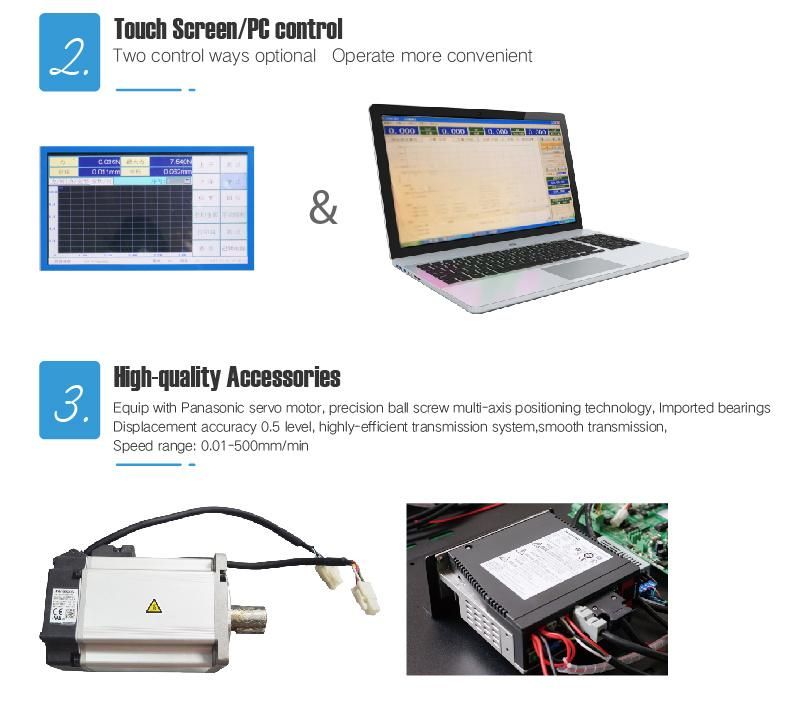

  • Motor：Panasonic Servo Motor
  • Panasonic Servo Motor：0.001mm
  • Stroke：1000mm
  • Sensor：Celtron Load Cell
  • Operate and Display：Computer
  • Transport Package：Strong Wooden Case
  • Specification：Atsm
  • Trademark：HaiDa
  • Origin：Guangdong China
  • HS Code：9024109000
  • Production Capacity：60sets,Month

Description

ItemsSpecificationSensorCeltron load cellCapacity5, 10, 20, 25, 50, 100, 200kgUnit SwitchoverG, KG, N, LBDisplay DeviceLCD or PCResolution1/250,000Accuracy±0.5%Max. Stroke1000mm (including fixture)Test Speed0.1-500mm/min (adjustable )MotorPanasonic Servo MotorScrewHigh Precise Ball ScrewElongation Accuracy0.001mmPower1ø, AC220V, 50HZWeightApprox.75kgAccessoriesOne set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual
