• Model NO.：XB-OTS-500
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Grips：Customized Depends of Different Test
• Test Speed：0.5~500 mm,Min
• Test Stroke：1000mm
• Stroke Resolution：0.01mm
• Max Capacity：40kn
• Force Precision：±0.5%
• Motor：Servo Motor
• Usage：Tensile Compression Testing Machine
• Transport Package：Strong Standard Wood Case
• Specification：Electronic
• Trademark：Evertech
• Origin：Qingdao, China
• HS Code：9024101000
• Production Capacity：150 Set,Sets Per Month

Displacement ControlDisplacement encoder count with four frequency technologySo that the displacement of four times the resolution can up to 0.0005mm

Force system: servo drives + Servo motor + precision ball screw drive



Control system:Mechanical transmission + TM2101 + Pulse Command and Control System control



Measurement and Control System : TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly improved, faster operation, control accuracy higher



Obtain data: The key components are used America's most stable and ultra-precision 24 yuan AD, sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the resolution of up to 1,000,000 indexing



Software functions

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7.With many units of measurement, the metric system and british system can switch;

8.Have automatic calibration function;

9.Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics



Corresponding Standard

ASTM D903,F2258,GB/T 2790/2791/2792, CNS-11888,JIS K6854,GB/T 6329,BS EN 14410-2003,YY/T 0729,GOST 21751 and other standards.



Company Information

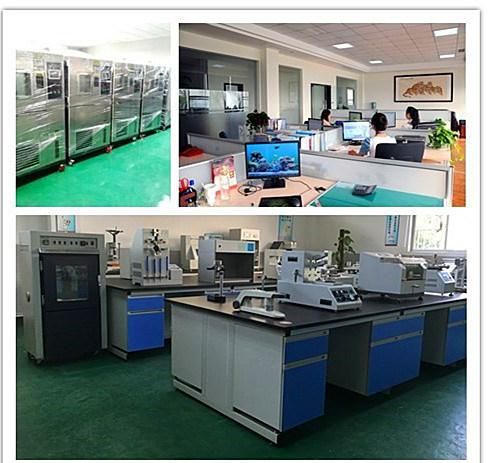

Qingdao Evertech Industry Co., Ltd.was established in 1978, with over 35 years' history, is one of the leading companies solely dedicated to manufacture of environment,class,mechanics,package testing equipment...(such as constant temperature and humidity chambers, environmental chambers, thermal shock test chambers,fast change rate chambers, yellowing resistance aging test chamber, salt spray chamber, tensile testing machine, universal testing machine,carton compression testing machines, bursting strength testing machine, vibration test, etc.) ...
  EVERTECH has the equipment and expertise, with own R&D and consultant team, to meet and exceed your testing requirement. with offices in unrivaled quality advantage, dynamic management team with superb manufacturing process,also the quality with the world norms: ISO , ASTM, DIN, EN, GB, BS, JIS, ANSI, UL,CE, TAPPI, AATCC, IEC, VDE...

1.How to choose the most suitable products?

Our professional team will give you the best suggestion as long as you tell us what kind of test you

need to do and the required specification.

2.What's the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3.Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.



4.How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



(1). Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.

How To Order:

1. We need to know the product name, size and others..
2. Discuss all details.
3. Start the mass production after getting your payment(deposit).
4. Send goods to you.
5. Receive the goods in your side.

Because it is convenient we can more quickly to give you a quotation. Thanks!
