• Model NO.：KMHW-13
• System：Balanced & Humidity Control System
• Temp. Range：-60 Oc~+120 Oc
• Humidity Range：10-95%R.H.
• Temp. Constancy：+,-0.5oc
• Humidity Constancy：+,-2.5%R.H.
• Temp. Uniformity：+,-2.0oc
• Humidity Uniformity：+,-5.0%R.H.
• Heat up Time：+20oc~+80oc Within 60mins
• Pull Down Time：+20 Oc~-55 Oc Within 90mins
• Transport Package：Strong Plywood Case, Meet International Standard
• Specification：Standard and Customized
• Trademark：KOMEG
• Origin：Dongguan, China
• HS Code：90321000
• Production Capacity：1000 Sets Per Year

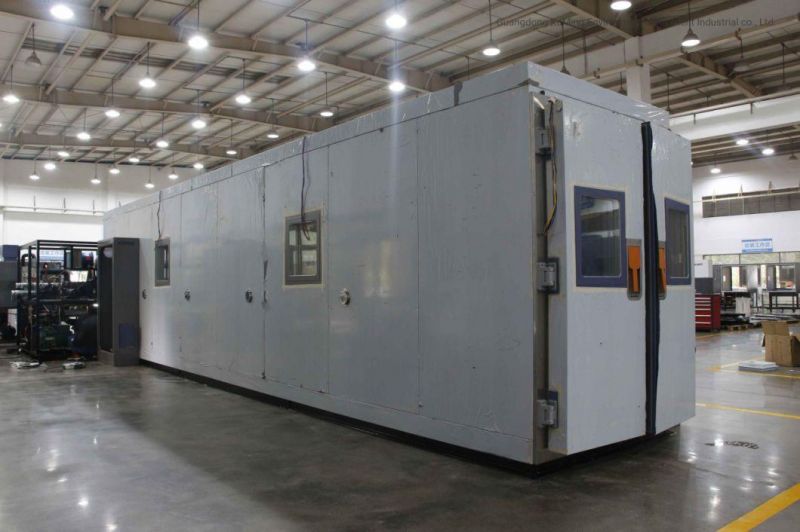

Walk-In ChambersSPECIFICATIONSNote: We reserve the right to change specifications without prior noticeModelKMHW-468131721Volume(m ³ )912.916.816.835.213.3Interior DimensionsW(mm)210030003900300039004800H(mm)210021002100210021002100D(mm)205020502050430043004300Exterior DimensionsW(mm)325041605050505050505950H(mm)235023502350235023502350D(mm)225022502250225045004500Safety Devices(standard)No fuse breaker, over pressure over heat and over current protection for compressor,
over temperature protection,
over load protection for blower, dry heat protectionStandard accessoriesSight window*1,cable port(portΦ50mm)*1,chamber lamp*1,
status indicatorControl System Balanced Temperature & Humidity Control SystemRefrigeration systemWater CooledSemi-hermetic compressor,
single stage or cascade refrigeration system,CFC free refrigerant ( HFC-507 and HFC-23 )ControllerPanel7-inch LCD Touch panel , Chinese or English display selectableOperation modelProgram or fix point runningMemory capacity120 programs,1200steps, all repeat 999 cycles , part repeat 99 cyclesAccuracyTemp.:0.1% of F.S±1 digit  Humidity:0.1% of F.S±1 digitInputTemp.:pt-100, Humidity:pt-100 or  ~ 5V DCVComm.port RS-232 or RS-485 (Softawre is option)Temp. rangeMaximum : 80  ºC, 120  ºC; Minimum : -60  ºC, -50  ºC, -40 ºC , -30  ºC, -20 ºC , -10  ºC, 0  ºCHumidity Range10 %, 20% , 30% ~ 95%Temp. constancy±0.5  ºCHumidity constancy±2.5 % R.HTemp. uniformity±2.0  ºCHumidity uniformity±5.0 % R.HAmbient Temp.+5  ºC~ +35  ºCWiring methodAC 380±10 %  50Hz ,3 phase 4 wires +Ground WiresHeat up time +20  ºC~ +80  ºC ,Within 60 minPull down time +20  ºC~ -55  ºC  -40  ºC -20  ºC -10  ºC ,Within 120 or 90 or 60  minInterior materialStainless Steel Plate(SUS 304)Exterior materialBaked Painting Steel Or Stainless steel(SUS304)Insulation materialRigid polyurethane foamDoor size (mm)Single wing : W800*H1800 ;  Double wing : W1600*H1800 ;Note:1. We reserve the right to change specifications without prior notice
2.Customized sizes and configurations available
Benefits more than you can get from other supplier in China
(KOMEG often tenders successfully in universities in China)
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
6)1 year warranties

Optional accessories  Cable Port: Two size of cable port is available: Φ50mm, Φ100mm.Double door  Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.Carry-in inclined platform: Provided below the door to facilitate moving of  specimens in and out through the door.Entire ceiling blow-out duct  The extremely wide air inlet reduces the airflow rate (down to apprrox.0.5m/s)Dehumidifier  The rotation regenerating dehumidifier (M-300)ensures precise control of low humidity (21 ºC,23%RH)for electrostatic reliability tests.Temperature and humidity recorder  100mm width recording paper with 6 dots180mm width recording paper with 12 dotsStatus indication lamp      Provide to signal chamber status and warnings when normal running, a  malfunction running or stand by occurs.Water purifier      Provided to keep the humidifier heater free from scale and ensure the supply of water to humidifier.Power socket  Air cooled type condense Your company has just developed a great new product,
and now it is your job to select a better environmental test
chamber to test it and make sure it will hold up, and to decrease your lost.

KOMEG has business on reliability test equipment for more than 30years.
KOMEG  is widely recognized and recommended by the top 500comopanies and also customers from electronic, computer, home appliance, communications, chemical industry and scientific reseach.

In 2003, KOMEG did the reseach and development of the main equipment with the Peking University for state key laboratory of environment and pollution simulation(located in Shenzhen High-Tech Park, and funded by national natural science foundation.)

After-sale service

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
