• Model NO.：HD-B609B-S
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Test Speed：0.1-500mm,Min(Convertible)
• Motor：Panasonic Servo Motor
• Panasonic Servo Motor：0.001mm
• 0.001mm：Approx.75kg
• Stroke：1000mm
• Load Resolution：1,250, 000
• Accuracy：0.5%
• Sensor：Celtron Load Cell
• Operate and Display：Computer
• Power：One Phase, AC 220V
• Transport Package：Strong Wooden Case
• Specification：Atsm
• Trademark：HaiDa
• Origin：Guangdong China
• HS Code：9024109000
• Production Capacity：60sets,Month

ItemsSpecificationSensorCeltron load cellCapacity5, 10, 20, 25, 50, 100, 200kgUnit SwitchoverG, KG, N, LBDisplay DeviceLCD or PCResolution1/250,000Accuracy±0.5%Max. Stroke1000mm (including fixture)Test Speed0.1-500mm/min (adjustable )MotorPanasonic Servo MotorScrewHigh Precise Ball ScrewElongation Accuracy0.001mmPower1ø, AC220V, 50HZWeightApprox.75kgAccessoriesOne set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual

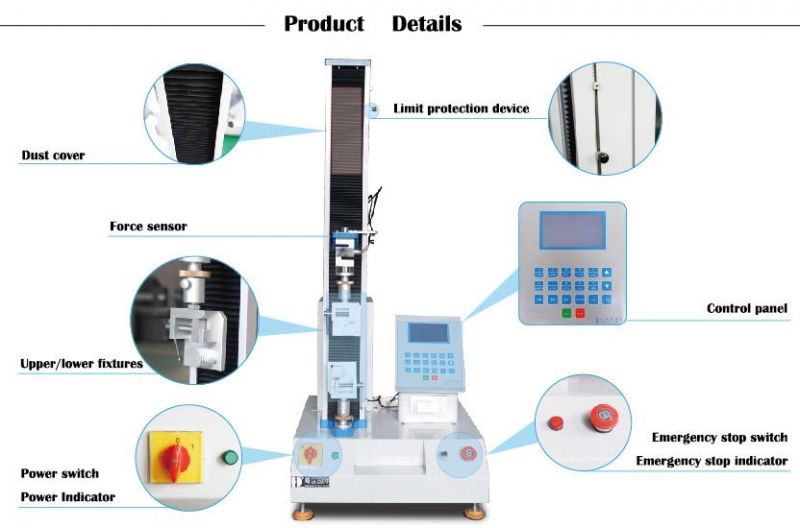

Product Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

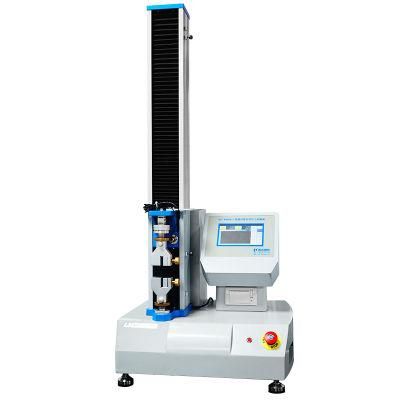

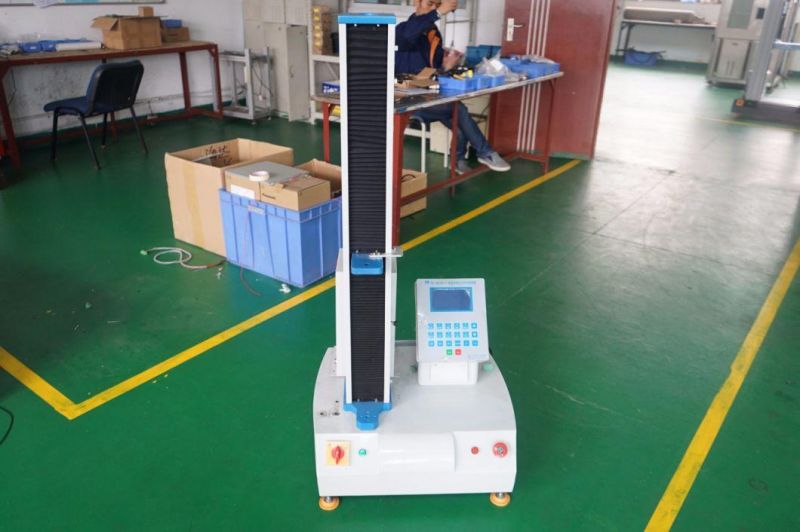

Product image:


The introduction of Haida:
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.

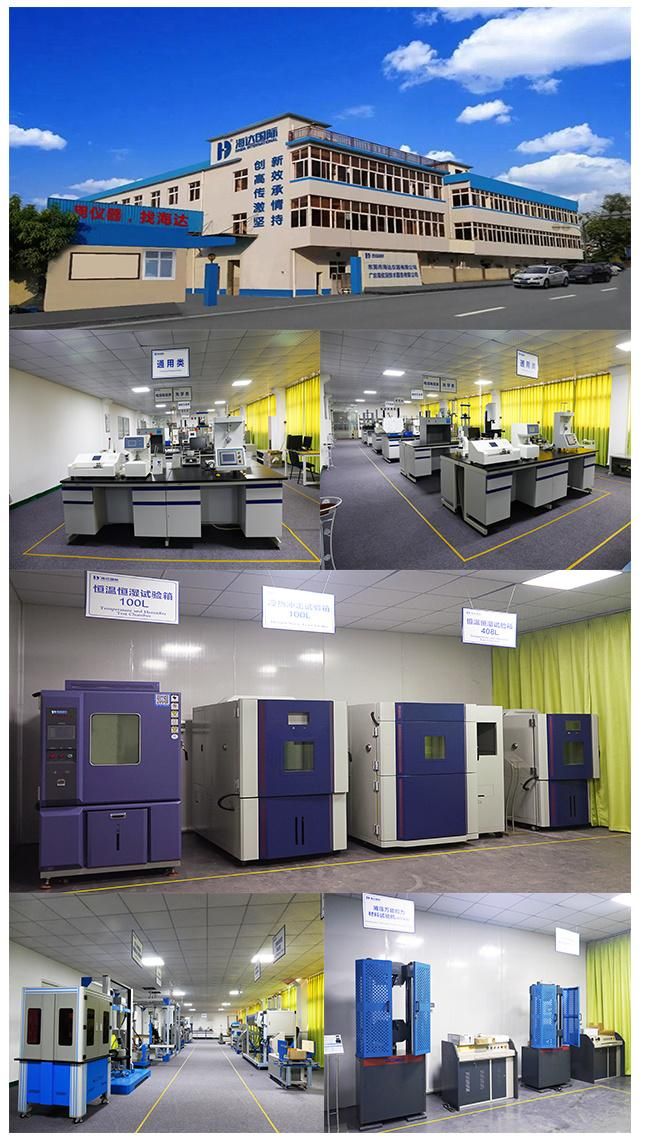

HAIDA Factory And Product Showing Room:


Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
