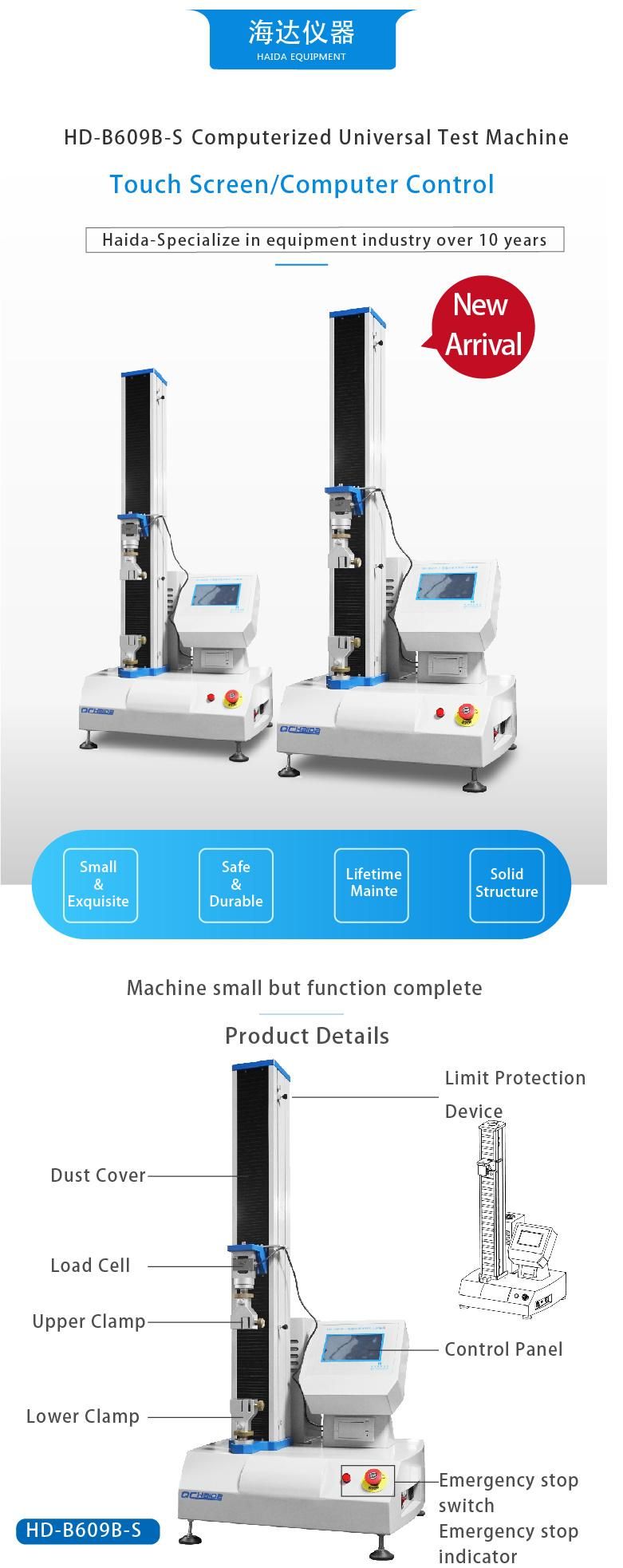

Single Column Adhesive Tape Peeling Force Testing Machine

Dongguan Haida Equipment Co., Ltd.
  • Type：Tensile Strength Test Machine
  • Maxcapacity：200kg
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-B609B-S
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Test Speed：0.1-500mm,Min(Convertible)
  • Motor：Panasonic Servo Motor
  • Panasonic Servo Motor：0.001mm
  • 0.001mm：Approx.75kg
  • Stroke：1000mm
  • Load Resolution：1,250, 000
  • Accuracy：0.5%
  • Sensor：Celtron Load Cell
  • Operate and Display：Computer
  • Power：One Phase, AC 220V
  • Transport Package：Strong Wooden Case
  • Specification：Atsm
  • Trademark：HaiDa
  • Origin：Guangdong China
  • HS Code：9024109000
  • Production Capacity：60sets,Month

Description

ItemsSpecificationSensorCeltron load cellCapacity5, 10, 20, 25, 50, 100, 200kgUnit SwitchoverG, KG, N, LBDisplay DeviceLCD or PCResolution1/250,000Accuracy±0.5%Max. Stroke1000mm (including fixture)Test Speed0.1-500mm/min (adjustable )MotorPanasonic Servo MotorScrewHigh Precise Ball ScrewElongation Accuracy0.001mmPower1ø, AC220V, 50HZWeightApprox.75kgAccessoriesOne set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual



Single Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing Machine


Single Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing MachineSingle Column Adhesive Tape Peeling Force Testing Machine
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1). Pre-service
    24 Hours online service for your consult.
    Help choose right model, and a series  of service, person, advise.
2). Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convenient.
    --Promptly production and delivery,inform you in time.
3). After sale service
   --1 year warranty service and all life maintenance.
   --Technical Engineer are available for oversea training.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
