• Model NO.：GWF
• Measurement Range：AC 0~500kv
• Divider Ratio：1000:1
• Measurement Accuracy：AC±1.5%
• Insulation Medium：America DuPont Dry Medium Material
• Capacitance：200~1000PF
• Voltage Factor：0.01%Kv
• Measurement Frequency：20~300Hz
• Environment Temperature：≤85rh
• Transport Package：Wooden Box with Wrapping Film
• Specification：ISO9001, ISO14001, OHSAS18001
• Trademark：United
• Origin：Wuhan, China

Basic Info.

Model NO. GWF Measurement Range AC 0~500kv Divider Ratio 1000:1 Measurement Accuracy AC±1.5% Insulation Medium America DuPont Dry Medium Material Capacitance 200~1000PF Voltage Factor 0.01%Kv Measurement Frequency 20~300Hz Environment Temperature ≤85rh Transport Package Wooden Box with Wrapping Film Specification ISO9001, ISO14001, OHSAS18001 Trademark United Origin Wuhan, China

Product Description

I. Product Description:

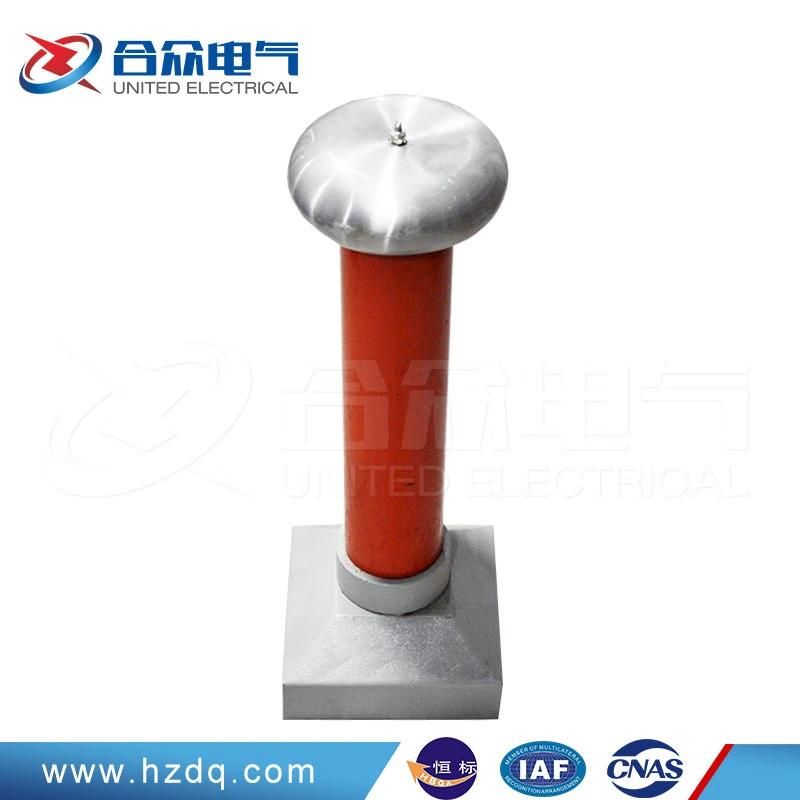

The GWF series capacitive voltage divider is mainly used for AC high voltage measurement. It has simple operation, intuitive display and high precision.

II.Product Features:
1.high-precision signal processing part, high performance OP is used for signal amplification, and the latest double integral AD sampling technology is used, and the highest resolution reaches to 0.001kV.
2.Anti-interference performance is good, use special shielding technology, high voltage divider and low voltage display meter adopts high quality coaxial cable connection, reduce the influence of high voltage to display value, so as to realize high stability, high linearity.
3.Safe and reliable, the instrument is composed of high voltage divider and low voltage display meter, the high voltage divider is adopted America Dupont filling materials, special process irrigation and sealing, smaller structure, lighter weight, lower internal partial discharge capacity, higher reliability.
4.The operation is simple, using the dial switch to handover high and low voltage, AC and DC, it's convenient and quick. Four and a half liquid crystal direct simply and intuitively display measurement results. It makes on site inspection work is more convenient.
5.Portable structure,the whole machine with aluminum alloy as main case, it is convenient to disassemble and install. Small size and light weight, easy to use and carry.

III.Product Parameters:

Measurement Range	AC 0~500kV	Capacitance	200~1000pF
Divider Ratio	1000:1	Voltage Factor	0.01%kV
Measurement Accuracy	AC±1.5%	Measurement Frequency	20~300Hz
Insulation Medium	America Dupont dry medium material	Environment Temperature	≤85RH
