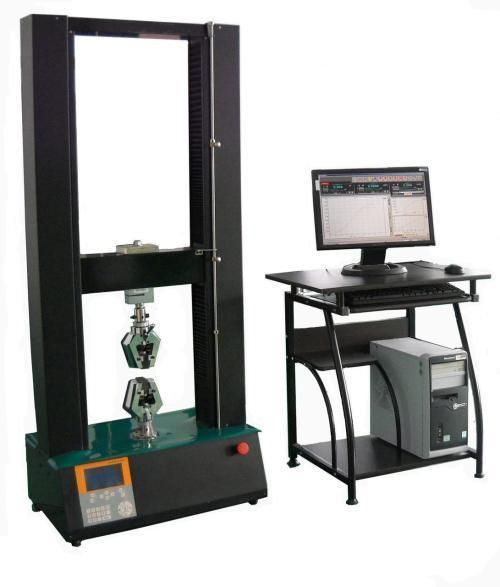

Hot! Computer System Universal Material Tensile Testing Machine / Tester
Qingdao Evertech Industry Co., Ltd.- Max Diameter of Workpiece:500mm
- Mass Scope of Workpiece:<900kg
- Type:Universal Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
Base Info
- Model NO.:ASR-2T
- Loading Method:Static Load
- Display:Digital
- Control:Computer Control
- Weight:100-500Kg, 400kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Application:Mainly Applicable to Metal
- Function:Mainly Applicable to Metal
- Specification:Can Be Customized, Electronic
- Power Consumption:0.4 Kw,a
- Test Speed:0.01-500 mm,Min
- Certificate:Ce ISO SGS
- Warranty:1 Year
- Transport Package:Standard Export Wooden Case
- Trademark:Evertech
- Origin:Qingdao, China
- HS Code:84778000
- Production Capacity:300 Set,Sets Per Month
Description
Basic Info.
Model NO. ASR-2T Loading Method Static Load Display Digital Control Computer Control Weight 100-500Kg, 400kg Power Source AC220V Oil Cylinder Position Under Application Mainly Applicable to Metal Function Mainly Applicable to Metal Specification Can Be Customized, Electronic Power Consumption 0.4 Kw/a Test Speed 0.01-500 mm/Min Certificate Ce ISO SGS Warranty 1 Year Transport Package Standard Export Wooden Case Trademark Evertech Origin Qingdao, China HS Code 84778000 Production Capacity 300 Set/Sets Per MonthProduct Description
Product DescriptionApplication :
This Machine is widely used in aviation, aerospace, petroleum chemical industry, machinery, metal materials and products, electric wire and cable, paper, printing and packaging, tape, bags handbags, textile fiber, pharmaceutical, food industry, etc. Testing for all kinds of materials and the physical properties of the products, semi-finished products, the choose and buy all kinds of different furniture can do tensile and compressive, the pull, bending, tear, peel, adhesion, shear test and etc.
parameter:
Maxium load | 5000KG/10000KG |
Accuracy level | 0.5 level |
Effective force range | 0.4%~100%(0.5level) |
Force accuracy | indicating±0.5% |
Testing machine resolution | the maximum load is 1/200000,internal and external undivided,and the entire resolution is unchanged |
Load sensor | Basic configuration:pull,pressure sensor(maximum load)one extended configuration:can be equipped with multiple sensors |
Extended configuration | 400mm(can be widened according to customer requirements) |
Effective test width | 800mm(can be widened according to customer requirements) |
Effectively stretch the space | 0.01~500mm/min |
Test speed range | indicating±0.5% |
Displacement measurement accuracy | indicating±0.5%(according to customer requirements matching large deformation or samll deformation) |
Deformation measurement accuracy | Electric limit protection |
Test bench lifting device | Fast/slow speed automatic control,adjustable point |
Test bench return function | Manual or automatic two options,automatic or manual at the end of the test to return the initial position at maximum speed |
Overload protection | More than 10% maximum load,automatic machine protection |
Fixture configration | Stretching fixtures a set |
Host size | 900*600*200mm |
Power system | Servo motor + high precision ball screw rod |
Power supply | 220v/50HZ |
Power | 1.5KW(Accroding to different force value requirements, standard with different power motor) |
Host weight | about 400kg |
