• Model NO.：DZ-101, DZ-101
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Capacity：50kn,100kn,200kn,300kn
• Speed Range：1-200mm,Min (Adjustable )
• Elongation Accuracy：0.001mm
• Resolution：1,250,000
• Warranty：18 Months
• Sensor：Celtron Load Cell
• Screw：High Precise Ball Screw
• Transport Package：Strong Plywood Case,Composite Material Box
• Specification：Electronic
• Trademark：Evertech
• Origin：Shandong, China (Mainland)
• HS Code：84778000
• Production Capacity：200 Set,Sets Per Month

Basic Info.

Model NO. DZ-101, DZ-101 Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Capacity 50kn,100kn,200kn,300kn Speed Range 1-200mm/Min (Adjustable ) Elongation Accuracy 0.001mm Resolution 1/250,000 Warranty 18 Months Sensor Celtron Load Cell Screw High Precise Ball Screw Transport Package Strong Plywood Case/Composite Material Box Specification Electronic Trademark Evertech Origin Shandong, China (Mainland) HS Code 84778000 Production Capacity 200 Set/Sets Per Month

Product Description

20kn 50kn 100kn universal tensile strength testing,30t tensile strength testing machine,300n tensile strength tester





Product Application- 20kn 50kn 100kn universal tensile strength testing,30t tensile strength testing machine,300n tensile strength tester

Textile fabric tensile testing machine widely used in footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

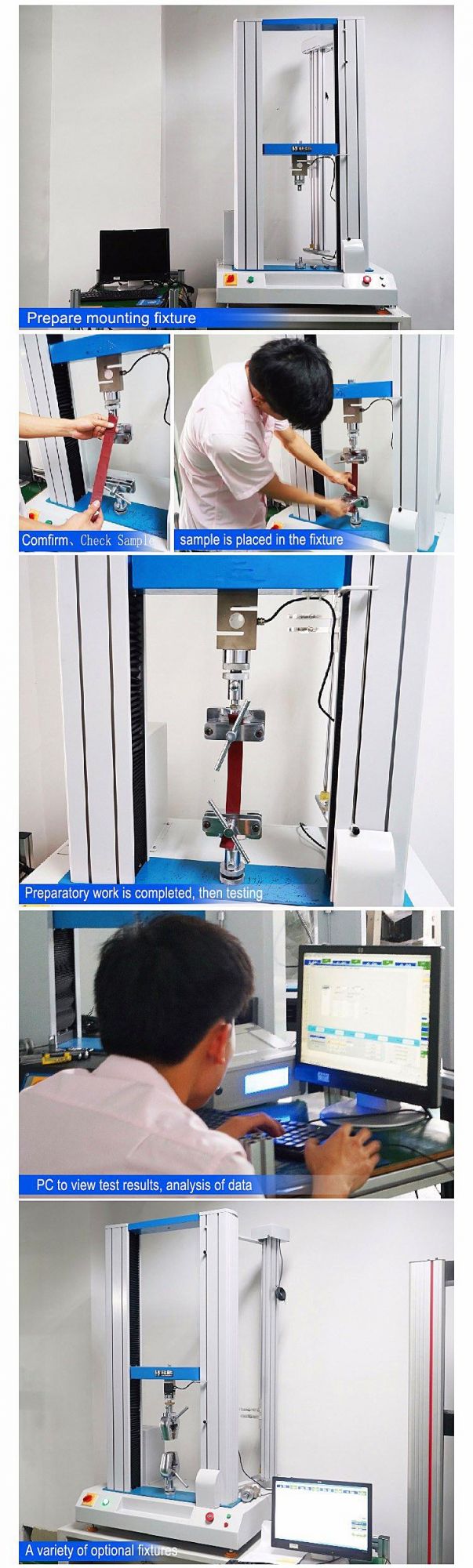

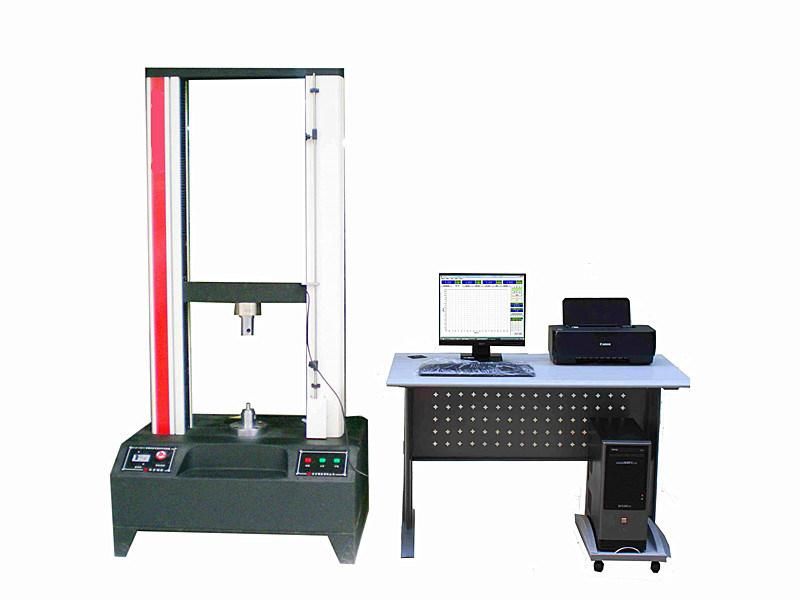

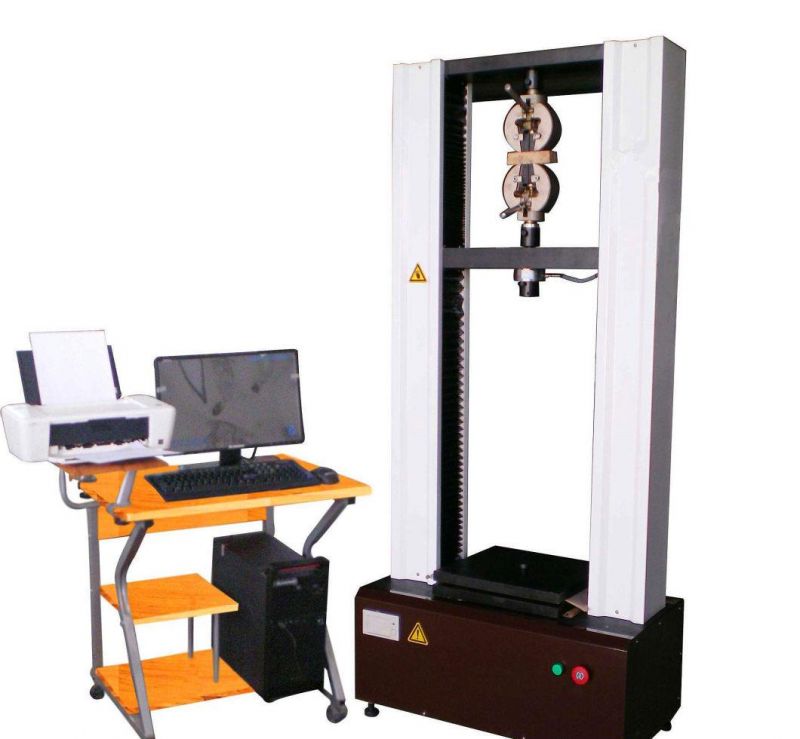

Textile fabric tensile testing machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.



The implementation of standards and standard configuration

ASTM D5344 : standard test method for extension force of partially oriented Yarn

ASTM D3107-2007(2011) : Standard Test Methods for Stretch Properties of Fabrics                                                    Woven from Stretch Yarns

ASTM D 6614-2000 :  Standrd Test Method for Stretch Propeties of Textile Fabrics-CRE Method



 Specification-20kn 50kn 100kn universal tensile strength testing,30t tensile strength testing machine,300n tensile strength tester

Capacity	100. 200. 500. 1000. 2000. 3000. 5000. 10000kg
Unit Switchover	G, KG, N, LB
Display Device	LCD or PC / Tensile Testing Machine
Resolution	1/250,000
Accuracy	±0.5%
Max. Stroke	1000mm (including fixture)
Test Speed	0.1-500mm/min (adjustable )
Motor	Panasonic Servo Motor
Screw	High Precise Ball Screw
Elongation Accuracy	0.001mm
Power	AC220V, 50HZ or customized
Weight	Approx.500kg / Tensile Testing Machine

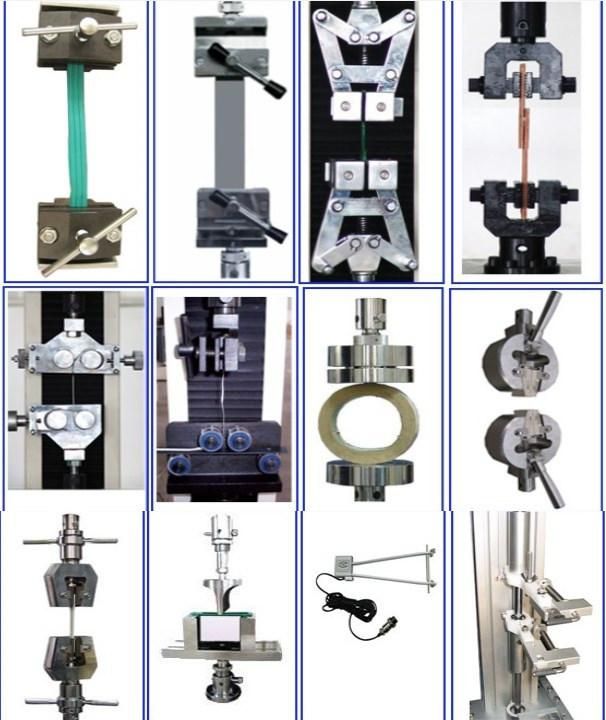

Accessories parts	tensile clamp, computer system, English software CD, operation CD,user manual

Main Features-20kn 50kn 100kn universal tensile strength testing,30t tensile strength testing machine,300n tensile strength tester



1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.





We have professional packing workers to pack your products!

1.Out packing:Standard export wooden case;
2.Inner packing:With careful stretch film+ hard cardboard;
Company Information

Our Service

Pre-service

24 Hours online service for your consult.                            Help choose right model,and a series of service,person,advise.

Middle service

--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.

After sale service

 --18 months warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan



FAQ

1. Q: What is your warranty ?
          - 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
2. Q: How-to vedio provided ?
       - Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant ?
          - Yes, welcome to visit our plant(factory), also we support OEM and ODM.
4. Q: What about the quality ?
         - Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
