Burning Characteristics Tester of UL 1581 Testing Equipment
Guangzhou Zhilitong Electromechanical Co., Ltd.- Warranty:One Year
- Type:Flammability Tester
- Load Way:Mechanical Load
- Display:Digital
- Control:Electricity
- Weight:100-500Kg
Base Info
- Model NO.:ZLT-HV4
- Power Source:AC220V
- Usage:Combustion Fire Testing
- Certification:ISO17025 Calibration Provided
- Material:Stainless Steel Cabinet
- MOQ:1 PC
- Delivery:in 30-35 Days
- Transport Package:in Plywood Carton
- Specification:ANSI,ASTM D 5207 & UL 1581
- Trademark:ZLTJC
- Origin:Guangzhou, Guangdong, China
- HS Code:9031809090
- Production Capacity:Stock Available
Description
Basic Info.
Model NO. ZLT-HV4 Power Source AC220V Usage Combustion Fire Testing Certification ISO17025 Calibration Provided Material Stainless Steel Cabinet MOQ 1 PC Delivery in 30-35 Days Transport Package in Plywood Carton Specification ANSI/ASTM D 5207 & UL 1581 Trademark ZLTJC Origin Guangzhou, Guangdong, China HS Code 9031809090 Production Capacity Stock AvailableProduct Description
Burning Characteristics Tester:Product details: Model ZLT-HV4:

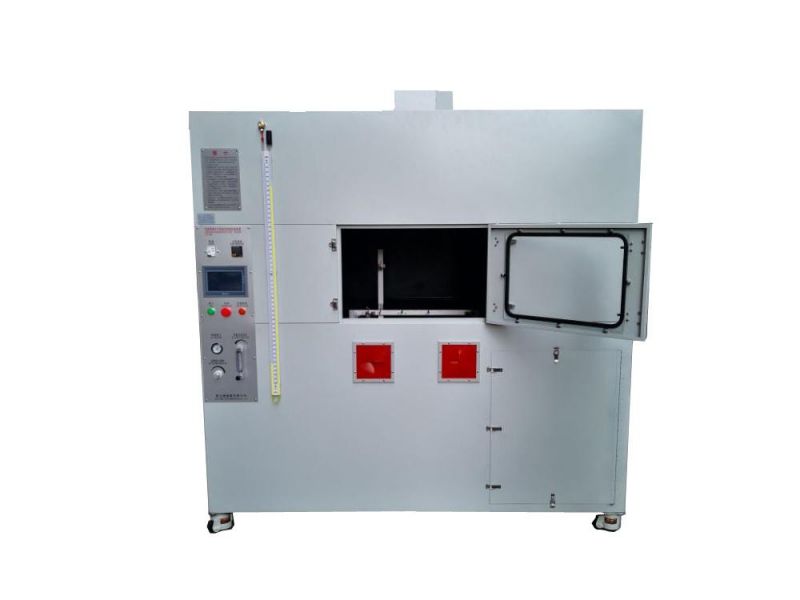

The ZLT Horizontal-Vertical Flame Chamber Tester is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator. The device complies with UL1581-2001(1060 FT1, 1061, 1080VW-1, 1090, 1100FT2) standards-related requirements designed. Applicable to the single wire and cable, and soft-line horizontal (FT1), vertical (VW1) combustion test. Burning time and burning the number of adjustable, can be automatic / manual, vertical / horizontal switching, gas pressure, flow adjustable and equipped with flame temperature recognition device.
Includes: Flame height gauge and 100% absorbent cotton
Flame standard | ANSI/ASTM D 5207 & UL 1581 |
Burner Tube | ANSI/ASTM D 5025 |
Burning Angle | 0° , 20° |
Thermocouple | Type K (Ni/Cr - Ni/Al), 200° ~1050° |
Thermocouple Size O/D | Φ 0.5mm, type K |
Temperature Resolution | 1º C |
Standard Copper Block | weight: 10 ± 0 . 05 g before drilling. Cu-ETP |
Time for Temperature to Increase | 1225W/50mm(16.5mm)/84± 2S A: 405 ± 10mL/min& 45± 5 mm water 2500W/125mm(40mm)/54± 2S A: 965 ± 30mL/min& 125± 25 mm water B: 385 ± 15mL/min& 552± 100 mm water C: 300 ± 10mL/ min& 600± 125 mm water |
Gas Supply(do not provide) | methane, min. 98% purity |
Input Power | 220 V 50 Hz 3A or 115 V 60HZ Optional |
Volume Of Chamber | > 4m³ , black interior |
Outer Dimensions | W*D*H=2000mm*1000mm*2000mm |
Conform to standard | UL1581: 1060/1061/1080/1090/1100 |
