• Model NO.：ZL-3001
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Temperature Tester：Room Temperature~200°c
• Temperature Accuracy：≤±0.3ºC
• Temperature Resolution：0.1ºC
• Motor Rotating Speed：100 Times,Min
• Die Cavity Frequency：1.7Hz
• Torque Resolution：0.001nm
• Ambient Temperature：0~35ºC
• Dimension：131*56*62cm
• Transport Package：Packed in a Polybag
• Specification：Electronic
• Trademark：Evertech
• Origin：Shandong, China (Mainland)
• HS Code：84778000
• Production Capacity：100 Set,Sets Per Month

Model

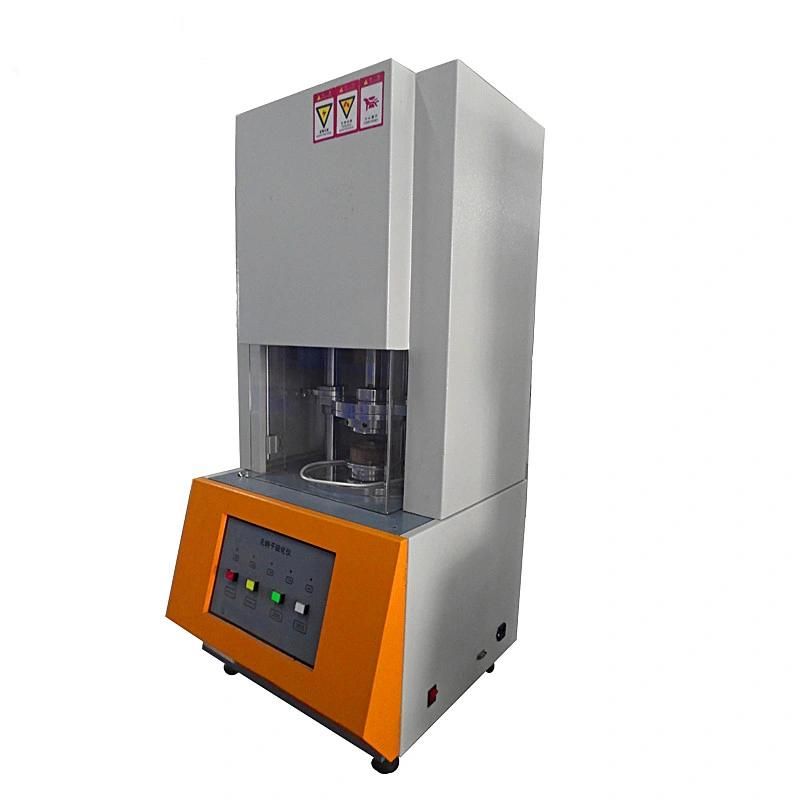

China Supplier Rubber Plastic Moving Die Rheometer MDR

Temperature tester

 Room temperature to 200°C

Temperature accuracy

≤ ±0.3°C

Temperature resolution

0.1°C

Torque range

0-5N.M,0-10N.M,0-20N.M

Torque resolution:

0.001NM

Motor rotating speed

100 times / min

Rotor range

Adopt 4 setting: 25, 50, 100, 200lbs per inch

Die cavity frequency

1.7Hz

Sway angle

±0.5°, ±1°, ±3°

Air compression

0.5Mpa--0.65MPa

Ambient temperature

0-35°C

Test result

Printing:date,time,temperature,vulcanization curve,

temperature curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2.

Dimension

131*56*62cm

Power

Single phase, 220V±10%, 50Hz

Display

Windows 7 + software

Weight

250kg

 We can produce all kinds of rubber lab test machines:



Honesty+Professional+Dedication=Value

Honesty-Credibility is the soul of the company, operating in good faith to promote enterprise development.

Professional-Professional service process,  professional quality services.

Dedication-Will spare no effort to serve for Customer.

Value -Take the customer demand as the guidance, provide super value service.

Packaging & Shipping


Our customers

1. What's the warranty statement?
Evertch warrants all the products manufactured by Evertch to free from defects in material and workmanship
under normal use of a period of 12 months or 36months after the date of the original purchase price if repair
or replacement is not possible of practical, Evertch warranty covers ONLY the product itself.
Evertch will assume no liability for labor costs, installation costs, or other losses. Your warranty rights will be honored
only when the product has been installed and used properly as deemed by Evertch, Zhongli will not repair products
damaged by improper use or faulty installation.

2. What's the return policy?
All order shipments leave our factory complete and in working order, customer must report and damage within 7days of
receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged merchandise,
package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier,
and any claim beyond this 7days period will not be deemed valid by Evertch .

3. How about in case of breakage?
Evertch will accept returns for a refund within 30days of the shipment of your order. Please note exceptions bellow:
Returns must be first acknowledged by Evertch PRIOR to return, Please contact the related salesman in charge.
All packages sent to Evertch MUST have the initial sales invoice number issued and printed clearly on the outsite of
package, A lack thereof will result in the item being immediately restocked and no credit or refund will be issued.
All returns must be made in their original packaging with sufficient packing material. Modified or installed items will not
be accepted for return.

4. How about the after-sales service?
24 hours around the clock & 12 months warranty, if need our engineers can provide door-to-door service
Life-long maintenance service for the product

Thanks for your support to Evertech!
