• Model NO.：YF-900
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Sensor：Celtron Load Cell
• Capacity：100, 300, 500, 1000, 2000kg
• Display Device：PC
• Max. Stroke：1000mm (Excluding Fixture)
• Test Speed：0.1-500mm,Min
• Motor：Panasonic Servo Motor
• Screw：High Precise Ball Screw
• Elongation Accuracy：0.001mm
• Transport Package：in Wooden Case or as Your Requirements
• Specification：Electronic
• Trademark：Evertech
• Origin：Shandong, China (Mainland)
• HS Code：84778000
• Production Capacity：60 Set,Sets Per Month

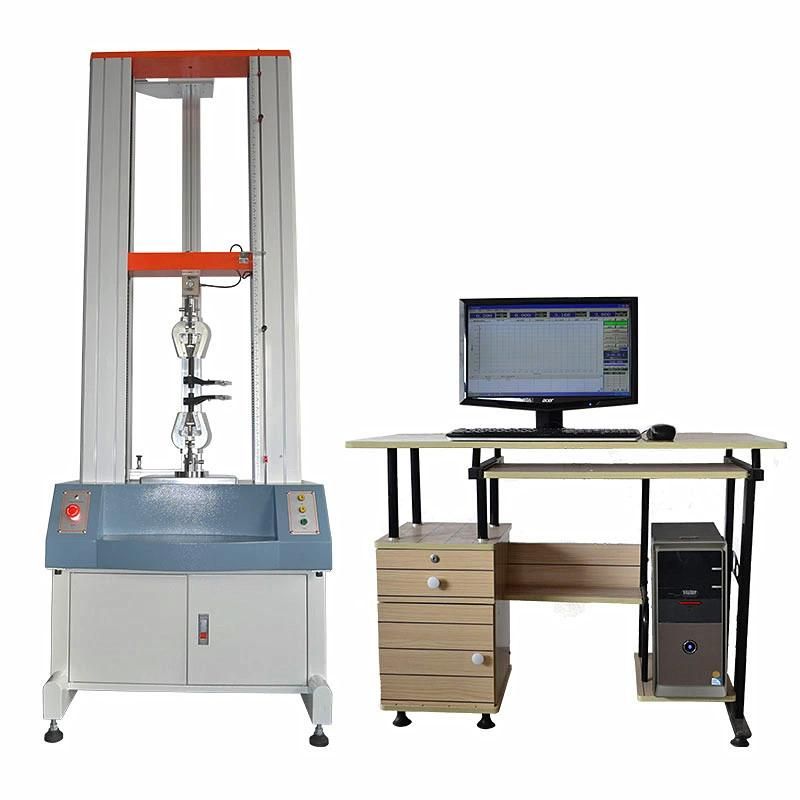

Tensile Testing Machine   Type:YF-900

Sensor

Celtron load cell

Capacity

500, 1000, 2000KG

Unit Switchover

0.1°C

Display Device

PC

Resolution

1/250,000

Accuracy

±0.5%

Max. Stroke

1000mm (excluding fixture)

Test Speed

0.1-500mm/min (adjustable )

Motor

Panasonic Servo Motor

Screw

High Precise Ball Screw

Elongation Accuracy

0.001mm

Power

1 ø ,AC220V, 50HZ

Weight

Approx.200kg

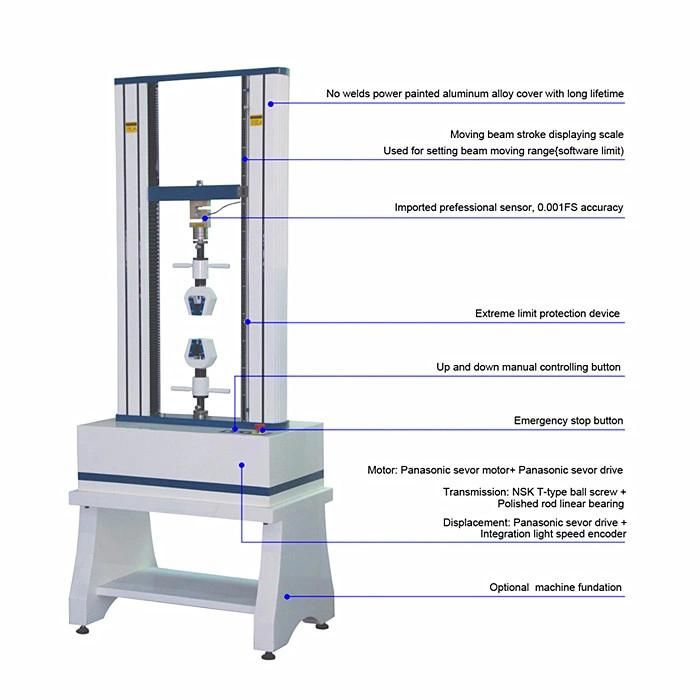

advantages

• Precision reducers, ball screws which significantly reduce the noise and transmission losses while increasing the transmission efficiency.
• 2 Years Warranty
• The seal plate mining anode hardening protects the ball screw and increase service life and precision of the instrument.
• Load cell has memory lock function which memorizes various parameters.
• Plug and play load cell.
• When using the external I/O signal contact various functions can be expanded.
• Jog control and very easy for operation of machine

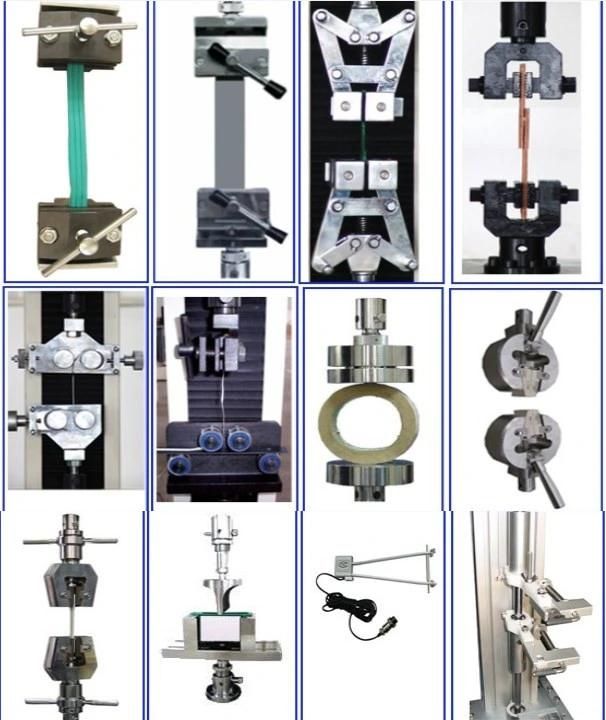

• Many relevant tests can be performed with optional grips and extensometer of fixtures.

Pictures

Exibition & Customers

We have customers in many countries,such as Europe and the United States,

Malaysia,Vietnam, India, South America and many other countries.

After-sales Service

1. Over seas service, two technician provides debug and training FOR 7-14 DAYS,

charge 80 USD per day for one man .and you are responsible for round tickets, visa. Living,

eating and so on.,one technician train worker how to produce rubber powder; another one

rain worker how to make rubber tile.

2. During warranty, if quality problem appears (not include man made problem), we can

replace it by free.

3. We will reply during 24 hours once problem appears, we can solve through guide pictureor video; if problem can not solved through these solutions , we can send engineer to your

factory.

4.Two year guarantee for whole machine,24 hours technical support by email or call calling

or door-to-door service.

All the product are CE,ISO,SGS Approved
