• Model NO.：WDW-10M
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg, 250kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Standard：GB,ISO,ASTM,DIN
• Function：Compression, Tensile, Bend
• Certificate：ASTM
• Color：Request
• Motor：Panasonic Servo Motor
• Screw：High Precise Ball Screw
• Transport Package：Export Wooden Box or as Your Request
• Specification：Electronic
• Trademark：Evertech
• Origin：Shandong, China (Mainland)
• HS Code：84778000
• Production Capacity：100 Set,Sets Per Month

Basic Info.

Model NO. WDW-10M Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg, 250kg Power Source AC220V Oil Cylinder Position Under Standard GB,ISO,ASTM,DIN Function Compression, Tensile, Bend Certificate ASTM Color Request Motor Panasonic Servo Motor Screw High Precise Ball Screw Transport Package Export Wooden Box or as Your Request Specification Electronic Trademark Evertech Origin Shandong, China (Mainland) HS Code 84778000 Production Capacity 100 Set/Sets Per Month

Product Description

Universal Tensile Strength Testing Machine, Tensile Tester





Product Description

Main Function and Usage

1. It is mainly used in the testing of compression strength of the concrete.

2. Control Method of Testing Rate: Manual Control

Main Specifications and Technical Parameter



Model	WDW-10M
Max. Testing Force	10kN
Character	Adopting TECO servo systems and servo motor, with full-digital Measure control system
Machine Stiffness(kN/mm)	80
Measure Range of Testing Force	2%-100% of the Max. testing force
Accuracy of Testing Machine	Over ±1% than the value display
Accuracy of Deformation Measure	±1%
Measure of Cross-beam Displacement(mm)	Discrimination 0.001
Accuracy of Testing Force Value Display	Over ±1% than the value display
Measure Range of Deformation	2-100%
Measure Range of Large Deformation	10~800(optional)
Accuracy of Large Deformation	With in ±1% of the value display
Discrimination of Displacement(mm)	0.001
Adjustment Range of Force Control Speed	0.001~10%
Accuracy of Force Control Speed	≤±1%
Adjustment Range of Deformation Speed	0.00025 /S~0.0025 /S
Control Accuracy of Deformation Rate	≤±1%
Adjustment Range of Displacement Rate	0.01mm/min~500mm/min;(random setting)
Accuracy of Displacement Rate and Space	≤±1%
Tensile Volume(mm)	800
Width of the Testing Space(mm)	370
Overall Dimension (mm)	686 ×525×1880
Clamping Type	Standard Refiguration: wedge tensile,compression, bending optional implement,wedge, plate and any other jaw optional implement
Weight(kg)	250
Motor Power(kW)	0.75
Type of Machine	Floor type

Advantages

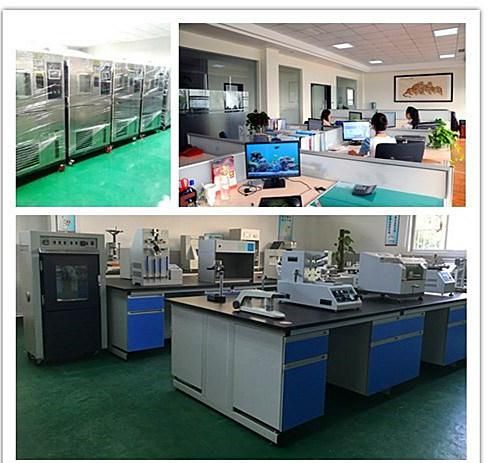

Company Information



1. Why Choose Us?

>Coaxial degree of good host: Tensile test to avoid the impact of lateral force to ensure a very high test success rate
>High rigidity of the host: low failure rate, good reliability, long service life
>Measurement and control hardware: sensors, extensometers, photoelectric encoders are brand-name configuration. High accuracy, good year stability.

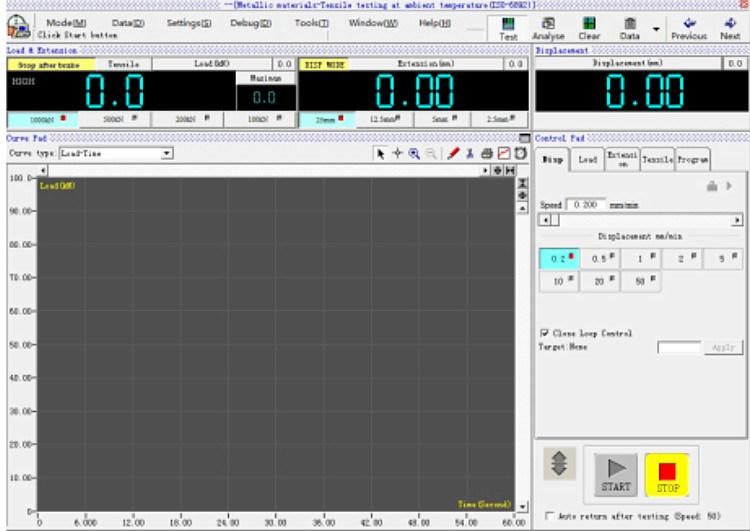

>Measurement and control system software: After the National Steel Materials Testing Center review. To ensure that the export data qualified, the success rate of comparative test.
>Each hydraulic universal testing machine factory has passed the 138 program test items
>Each electronic universal testing machine factory has passed 112 program test items
>Each pressure test machine factory has passed the 76 program test items
>We promise, after-sales service for 12 months, promptly and promptly deal with all the problems aftermarket.

2.Are you a factory?

>Yes,Factory+trade,17 years focusing on test instruments field.



3. What's the product delivery time?

>Within 5 days after receive the payment



4.What's your payment terms?

>We accept T/T, L/C or Western Union.



5.What's your terms of trade?

>We accept EXW, FOB, CNF, CIF, and so on.
