• Model NO.：RT-101
• Maxcapacity：<1000KN
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Function：to Determine The Rubber Vulcanizing Performance
• Standards：ASTM D5289, ISO6502, T30,T60,T90
• Test Mode：Automatically, Controlled by Computer
• Temperature Range：Room Temperature -- 300 ºC
• Warming Time：≤ 15min
• Temperature Resolution：0.1 C
• Temperature Fluctuation：0.5 C
• Torque Range：0n.M -- 10n.M
• Torque Display Resolution：0.001n.M
• Air-Pressure Requirement：0.5MPa--0.65MPa
• Transport Package：Packed as Export Safety Wooden Case
• Specification：Electronic
• Trademark：Evertech
• Origin：Qingdao, China
• HS Code：84778000
• Production Capacity：300 Set,Sets Per Month

Basic Info.

Model NO. RT-101 Maxcapacity <1000KN Accuracy Grade 0.5 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Function to Determine The Rubber Vulcanizing Performance Standards ASTM D5289, ISO6502, T30,T60,T90 Test Mode Automatically, Controlled by Computer Temperature Range Room Temperature -- 300 ºC Warming Time ≤ 15min Temperature Resolution 0.1 C Temperature Fluctuation 0.5 C Torque Range 0n.M -- 10n.M Torque Display Resolution 0.001n.M Air-Pressure Requirement 0.5MPa--0.65MPa Transport Package Packed as Export Safety Wooden Case Specification Electronic Trademark Evertech Origin Qingdao, China HS Code 84778000 Production Capacity 300 Set/Sets Per Month

Product Description

Hot Sale China Rubber Tester Rheometer With Rotorless Price

Product Description

What is the Speicification of No Rotor Rubber Moving Die Rheometer?

Model:	Hot Sale China Rubber Tester Rheometer With Rotorless Price
Standard:	GB/T16584    IS06502
Temperature:	room temperature to 200 Centigrade
Heating-up:	15 Centigrade/min
temperature fluctuation:	≤ ±0.3 Centigrade
temperature resolution :	0.1 Centigrade
torque range:	0-5N.M,0-10N.M,0-20N.M
torque resolution:	0.001NM
Power:	50HZ, ~220V±10%
Pressure:	About 0.4Mpa
Air-pressure requirement:	0.5Mpa--0.65MPa (user prepare the dia 8 trachea)
Environment temperature :	10 Centigrade--20 Centigrade
Humidity range:	55--75%RH
Compressed air:	0.35-0.40Mpa
Swing frequency :	100r/min(about 1.67HZ)
Swing angle:	±0.5 Centigrade ,±1 Centigrade ,±3 Centigrade
Printing:	Date,time,temperature,vulcanization curve,temperature  curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2.





Equipment summary:

Hot Sale China Rubber Tester Rheometer With Rotorless Price is a widely used tester in rubber processing industry, rubber quality control and basic research rubber,

For optimize formula of rubber provide accurate data, It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.



Main functions:
Hot Sale China Rubber Tester Rheometer With Rotorless Price used monolithic rotor control, which include: host, temperature measurement, temperature control, data

 acquisition and processing, sensors and electrical chains and other components. These measurements, temperature control circuit consists of a temperature control device, platinum resistance, heater composition, capable of automatic tracking power and ambient temperature changes, automatically correct PID parameter

s to achieve fast and accurate temperature control purposes. Data acquisition system and mechanical linkage to complete the rubber vulcanization process of force torch signal automatic detection, automatic real-time display of temperature and settings. After curing, automatic processing, automatic calculation, print

vulcanization curve and process parameters. Show curing time, curing power Ju, also has a variety of audible alert.

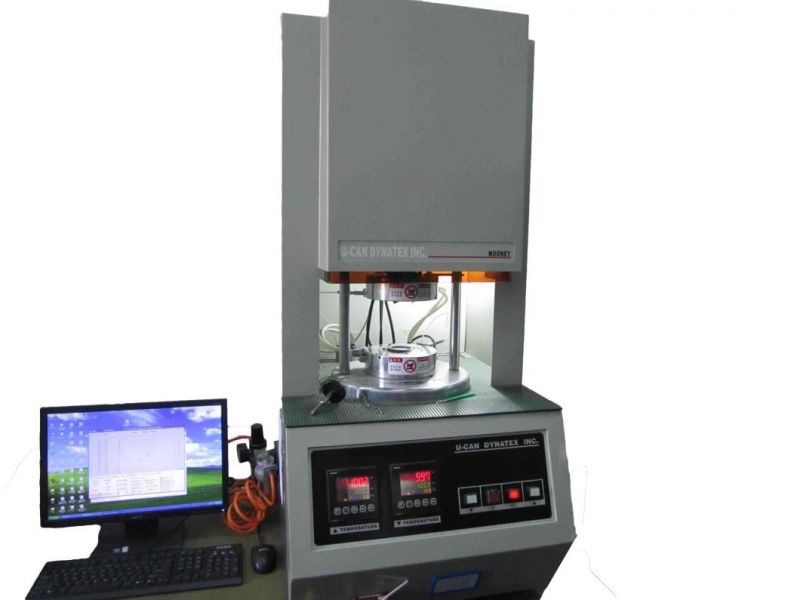

RT-101 No Rotor Rubber Moving die rheometer controlled by computer, the computer setting the parameters of the direct control

of test parameters rheometer. Display real-vulcanization curve and temperature curve, store test results,

different adjustable comparison of test results and in a different color.

Features:
1. This instrument is really confined mold cavity, and the United States Alpha (formerly Monsanto) has done. Repeatability, and test data comparable with the Alpha. At the international leading position in the same industry.
2,.The instrument development platform based on large databases, temperature control devices using the

software to directly control and collection and processing. Instrument to overcome the general curing

temperature of the shortcomings of using temperature controller (accuracy poor). The technical leadership

of international new trend.
3. This instrument has statistics, analysis, storage and comparison functions. Humanized design, easy to

 operate
4. Using imported high-precision sensors

How it works:
The rubber sample into the mold cavity is almost entirely enclosed and maintained at test temperature,

the mold cavity are of two parts, of which the lower part with a small linear reciprocating movement

(swing oscillation), oscillatory shear specimen produced strain determination is the reaction torque of the

mold cavity (force), this torque (force) depends on the shear modulus of rubber.

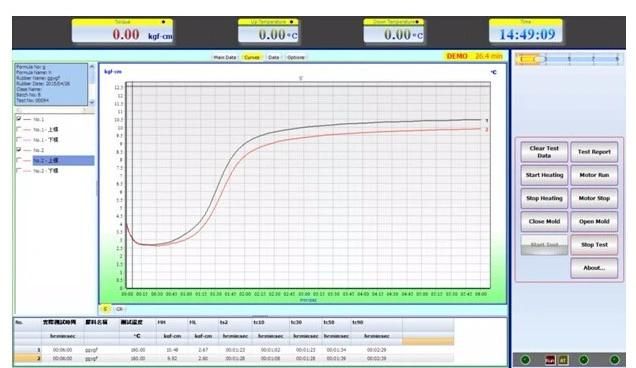

    Curing test specimens after the start of the shear modulus increases, the computer machine real-time

 display and record the torque (force), when the torque (force) rose to a stable value or the maximum as

well as return to the state, they get a torque ( force) and time curve, that is, curing curve (Figure 1), shape

of the curve and test the temperature and plastic material characteristics.


Applicable industry:

Widely used in rubber products industries.



corresponding standard :

Accord with GB/T16584<rubber- no rotor rheometer to measure the characteristics of vulcanized>

 ISO6502:1991 and ASTMD5289-95

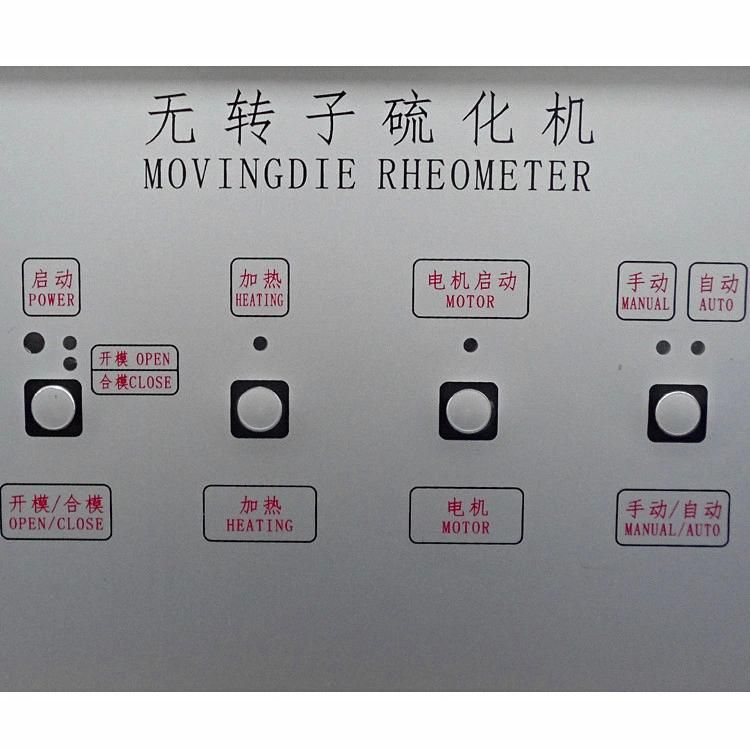

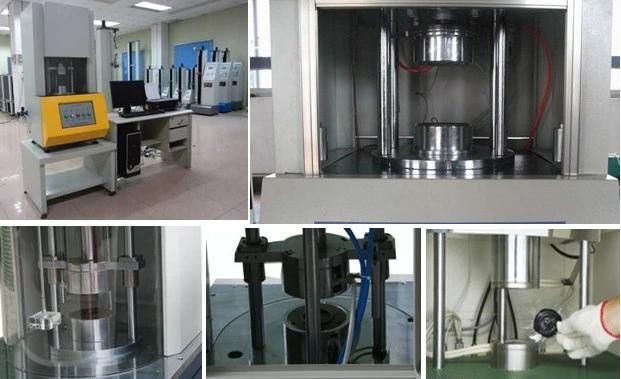

Product Show


Packaging & Shipping

*Shippment

-By sea

-By plane

-By couriers, TNT, DHL, FEDEX, UPS, etc.



*Standard Export carton

1.Inner Package: Thin plastic film surround the machine;
2.Outer Package: Internationally standard package export safety wooden case.

Related ProductCompany Information

Qingdao Evertech Industry Co.,Ltd is specialize in rubber and plastic testing machine over 10 years,With our advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.

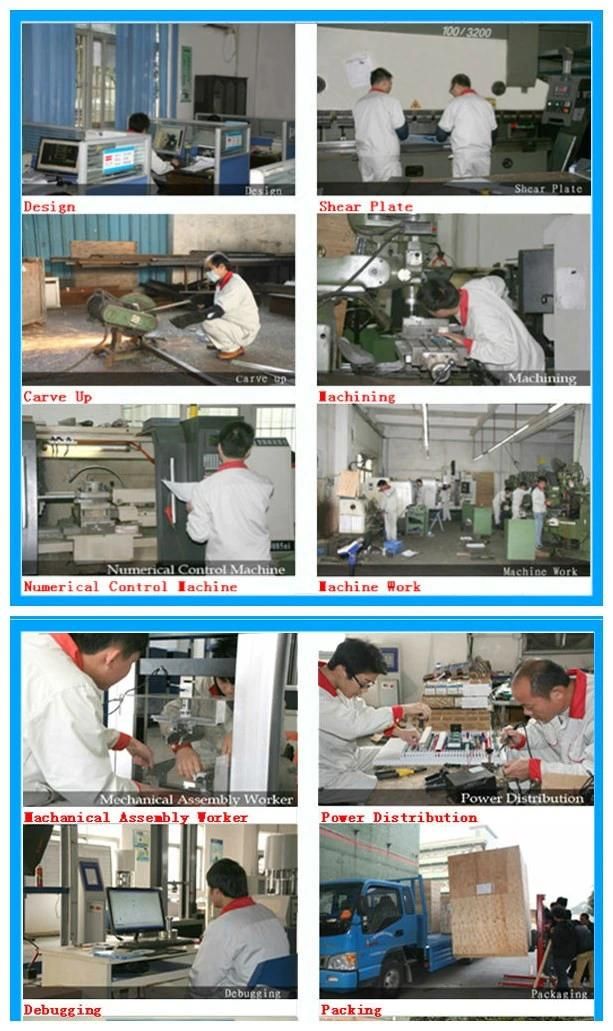

Our production line have turning machine,griding machine,milling machine,CNC machining center and sheet metal bending machine,design department has 5 people special for design and research new product.With these advantages,we can control product quality from source.
