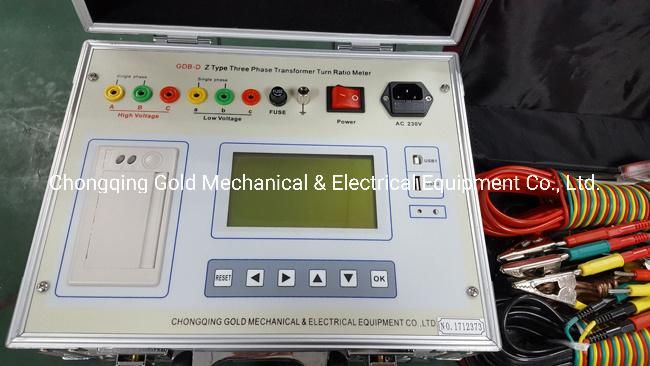

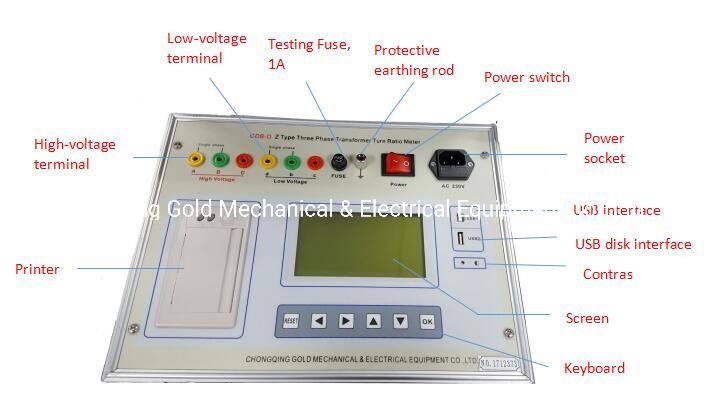

Turns Ratio Range 0.8-10000 Three Phase Z Type Transformer Turn Ratio Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Item Description：3 Phase Transformer Turn Ratio Tester
  • Turns Ratio Tester Application：Measure Turns Ratio, Turn Ratio, TTR of Transforme
  • Apply to：Three Phase Transformer, Z Type Transformer, Speci
  • Turns Ratio Range：0.8 - 10000
  • Features：Can Measure Z Type Transformer, Small Size and Lig
  • Group Difference Range：1-12

Base Info

  • Model NO.：GDB-D
  • Turns Ratio Meter Price：Low Price
  • OEM Service：Yes
  • Power Supply：220V, 50Hz
  • Warranty：One Year
  • Transport Package：Packed in Container
  • Specification：Refer to the specifications
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9031809090
  • Production Capacity：100 Set,Month

Description


ItemTurns Ratio Range 0.8-10000 Three Phase Z Type Transformer Turn Ratio TesterTurns Ratio Range0.8~10000Group Difference Range1~12Turns Ratio Range Accuracy
0.2%(180V:0.8~1000)
0.5%(180V:1000~10000)
0.2%(10V:0.8~200)
Turns Ratio Resolution0.0001Angle Resolution0.01°Power Supply220V±10%, 50Hz±1HzWorking Temperature-20ºC~40ºCRelative Humidity≤85%,no condensationOverall325mm×278mm×188mmInstrument Weight7kg
Turns Ratio Range 0.8-10000 Three Phase Z Type Transformer Turn Ratio Tester

Turns Ratio Range 0.8-10000 Three Phase Z Type Transformer Turn Ratio Tester
