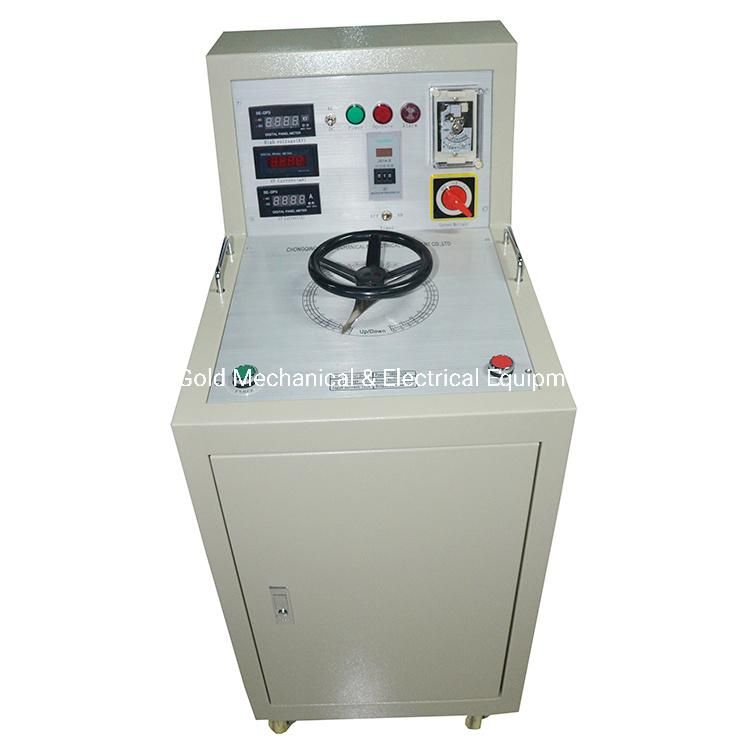

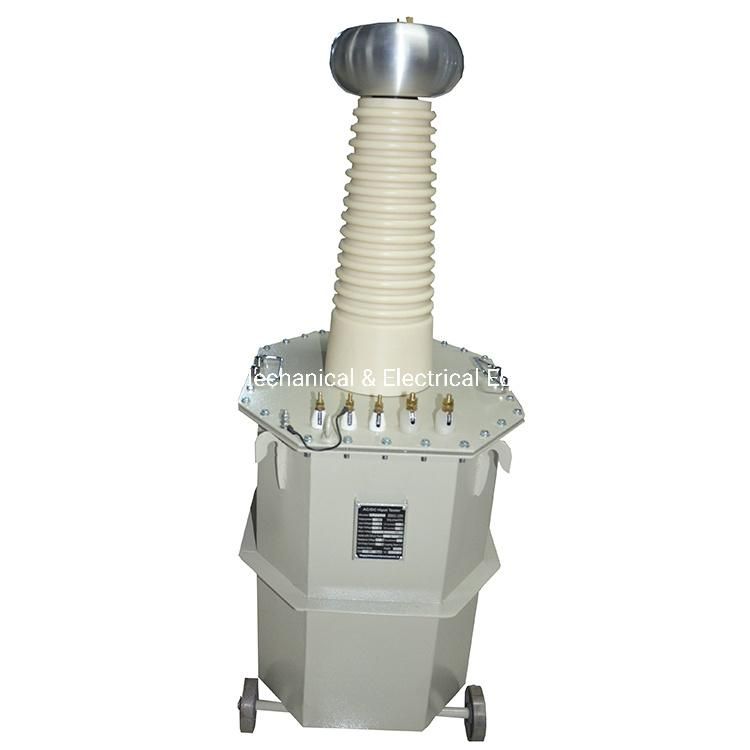

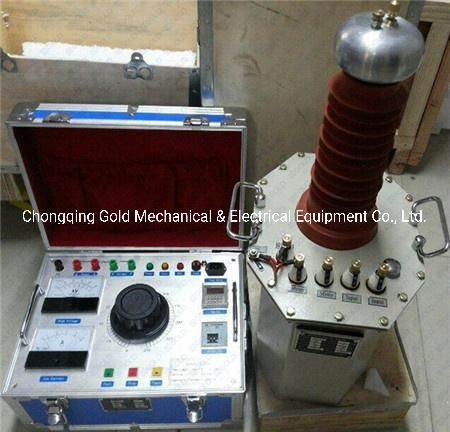

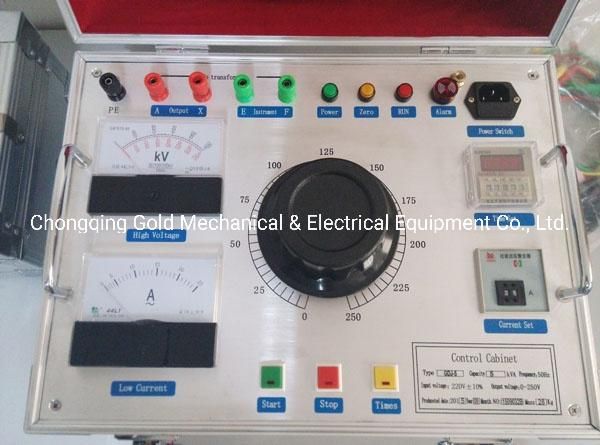

Oil Type Testing Transformer 50kv to 300kv AC DC Hipot Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Item Description：Oil Type 50kv to 300kv AC DC Hipot Tester
  • Application：Supply High Voltage for Electrical Equipment Testi
  • Capacity：1.5kVA-300kVA
  • High Voltage Hv Output：50kv-300kv
  • Hipot Tester Type：Oil Type, Oil-Immersed Hipot Tester
  • Control Cambint Features：Reasonable Structure, Small Size, Light Weight

Base Info

  • Model NO.：GDJ
  • Hipot Tester Optional：AC Type, DC Type or AC DC Type
  • Price：Low Price
  • OEM Service：Yes
  • Warranty Period：One Year
  • Specification：Refer to the specifications
  • Trademark：GOLD
  • Origin：Chongqing, China
  • HS Code：9031809090
  • Production Capacity：100 Set,Month

Description

ModelCapacity
(KVA)High Voltage
(KV)High tension current(mA)LV input voltage(V)LV input current(A)RatioGDJ-1.5/501.550302007.5500GDJ-3/503506020015500GDJ-5/5055010020025500GDJ-10/50105020020050500GDJ-20/50205040038052.6500GDJ-30/50305060038079500GDJ-50/5050501000380132500GDJ-5/100510050200251000GDJ-10/10010100100200501000GDJ-20/1002010020038052.61000GDJ-30/10030100300380791000GDJ-50/100501005003801321000GDJ-50/150501503333801321500GDJ-100/1501001506673802631500GDJ-100/2001002005003802632000GDJ-200/20020020010003807902000GDJ-100/3001003005003803953000GDJ-200/3002003006673805263000GDJ-300/30030030010003807903000
Oil Type Testing Transformer 50kv to 300kv AC DC Hipot Tester
Oil Type Testing Transformer 50kv to 300kv AC DC Hipot TesterOil Type Testing Transformer 50kv to 300kv AC DC Hipot TesterOil Type Testing Transformer 50kv to 300kv AC DC Hipot Tester
