• Model NO.：GDY-1A+
• Computer Interface：No
• Printing：with Built-in Printer
• Dimension：600*460*430mm
• Delivery Time：10 Working Days(If Urgent, We Can Push)
• Transport Package：Wooden Case for Gdy-1A+
• Trademark：GOLD
• Origin：Chongqing, China
• Production Capacity：100 Sets, Month

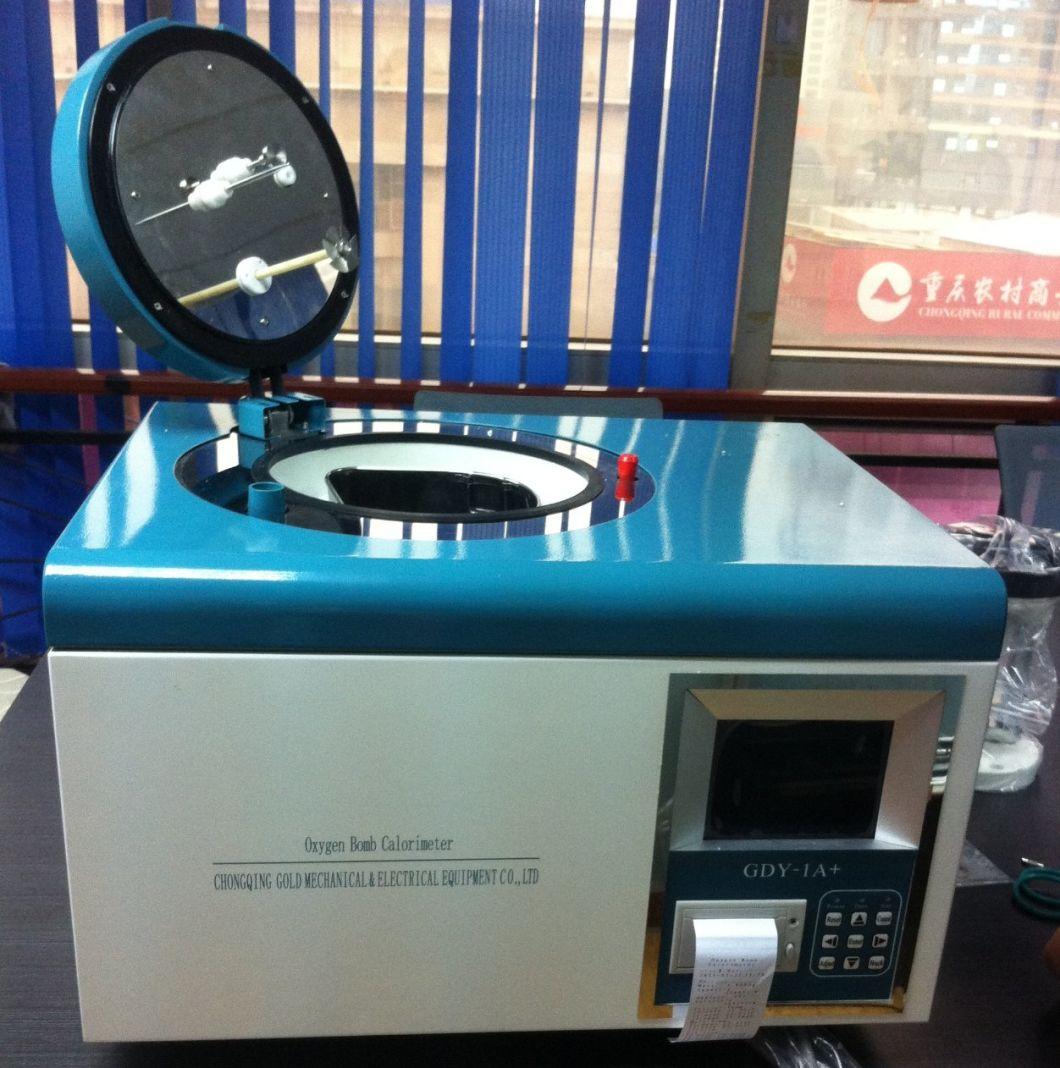

Model and product nameStandardtest sampleAdvantagesGDY-1A+ Semi-auto Oxygen Bomb Calorimeterastm d240
astm d5865water free oil products:gasoline, jet fuel, diesel oil and fuel oil, etc
combustible material: coal, coke, paraffin wax contentautomatic, efficient, safe, high precision, fast test speed and easy to use


Features:
1) Semi-auto Oxygen Bomb Calorimeter uses a single-chip control technology, color LCD display,
high-precision temperature sensor and high-performance A / D conversion device, consisting of a high degree
of automation, screen effect is good, easy to use, convenient intelligent data compilation instrument.

2) Semi-auto Oxygen Bomb Calorimeter is fully automated in the testing process, after the sample
in place, correct input various parameters automatically without manual intervention to complete each test

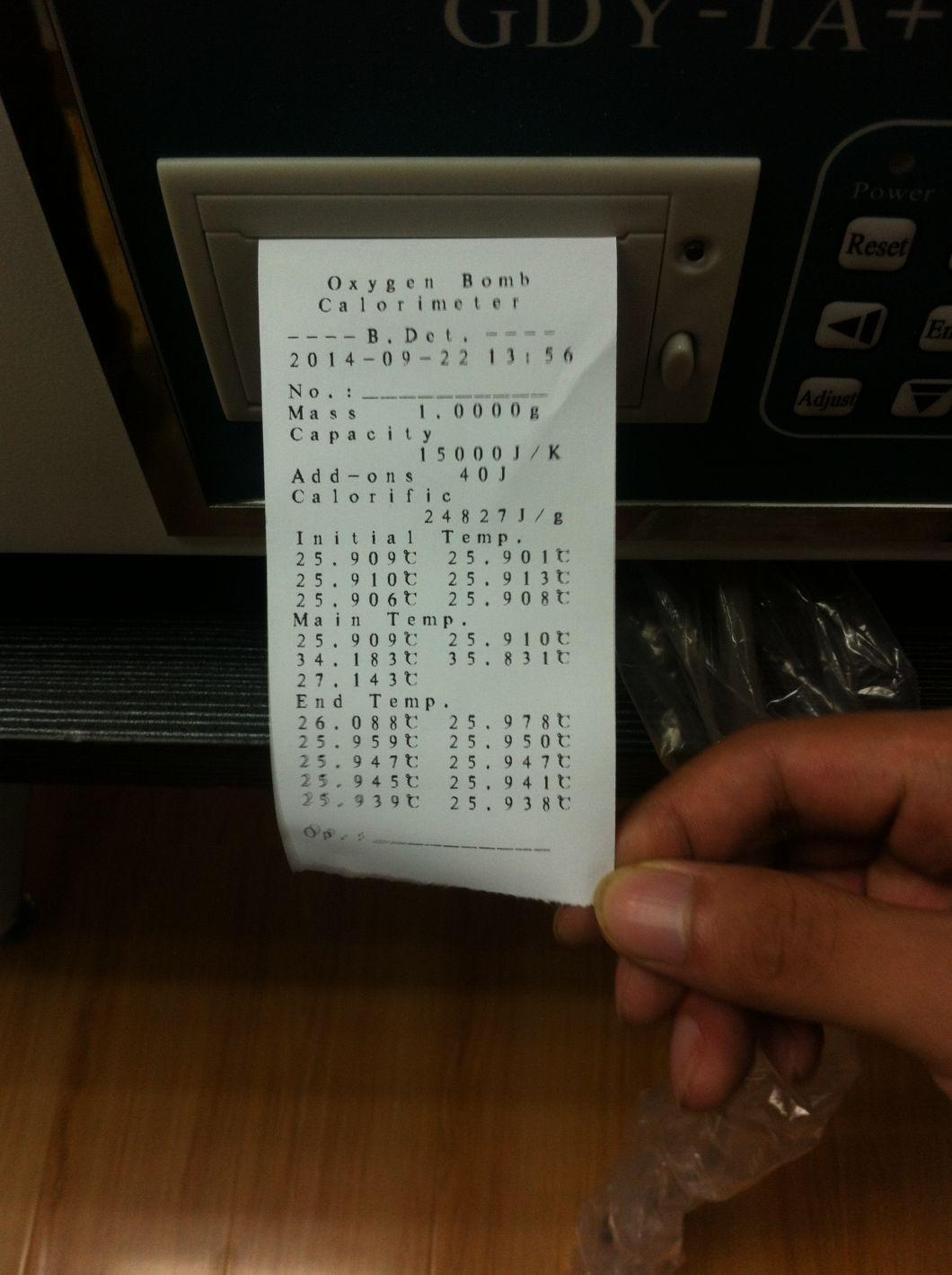

process; you can print measurement data directly on the A4-format printer configuration after the end of the
trial.

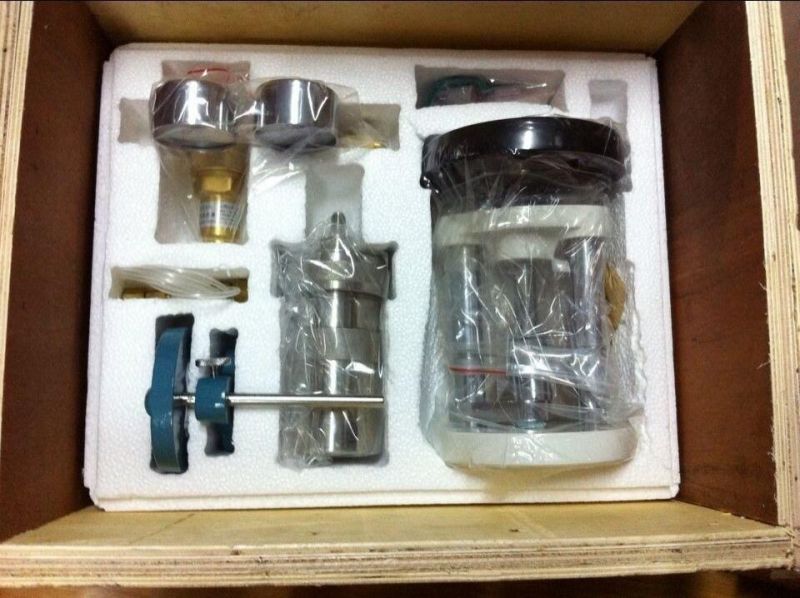

3) Semi-auto Oxygen Bomb Calorimeter adopts the self sealing type oxygen bomb, all the
structure is made of stainless steel, and the strength is enough to withstand the pressure test of 20MPa at room
temperature.

4) The inner tube of the instrument is made by stainless steel sheet, put the barrel of water
was 3000 grams, water cylinder with electric blender, to ensure that the inner tube water bath temperature
uniformity.

5) The instrument of the external water jacket is a double container and experiment when filled with water,
through the water jacket mixer to cylinder in uniform temperature, formed to meet the test requirements of the
constant temperature environment.

Specifications:

Note: If the test sample is pulverized coal samples, in order to obtain better test results,
we recommend separately of the company's private press cake machine.

GDY Series Calorific Value Measurement Calorimeter:

ParametersGDY-1AGDY-1A+GDY-1CTest modeManualSemi-autoAutomaticControl modelIn-build computerMicro-computerComputerPacking Size

72*59*51

47*47*28

71*56*50

46*37*26

69*55*48

45*37*25

58*52*84

Gross Weight40kg33kg63kg

Exhibition:
We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya,Nigeria, South Africa and other countries worldwide. And we have gained strong advantage and high reputation in international market.
After several years' development, our products have become high intelligent and wide coverage.
And our company has become one of the leading manufacturer of petroleum testing instrument
