• Model NO.：GD-2430A
• Bath Liquids Stirring：Electric Stirring.The Power Is 6W, 1200r,Min
• Transport Package：Wooden Case for Automatic Freezing Point Tester
• Specification：560*550*810mm
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-2430A Bath Liquids Stirring Electric Stirring.The Power Is 6W, 1200r/Min Transport Package Wooden Case for Automatic Freezing Point Tester Specification 560*550*810mm Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

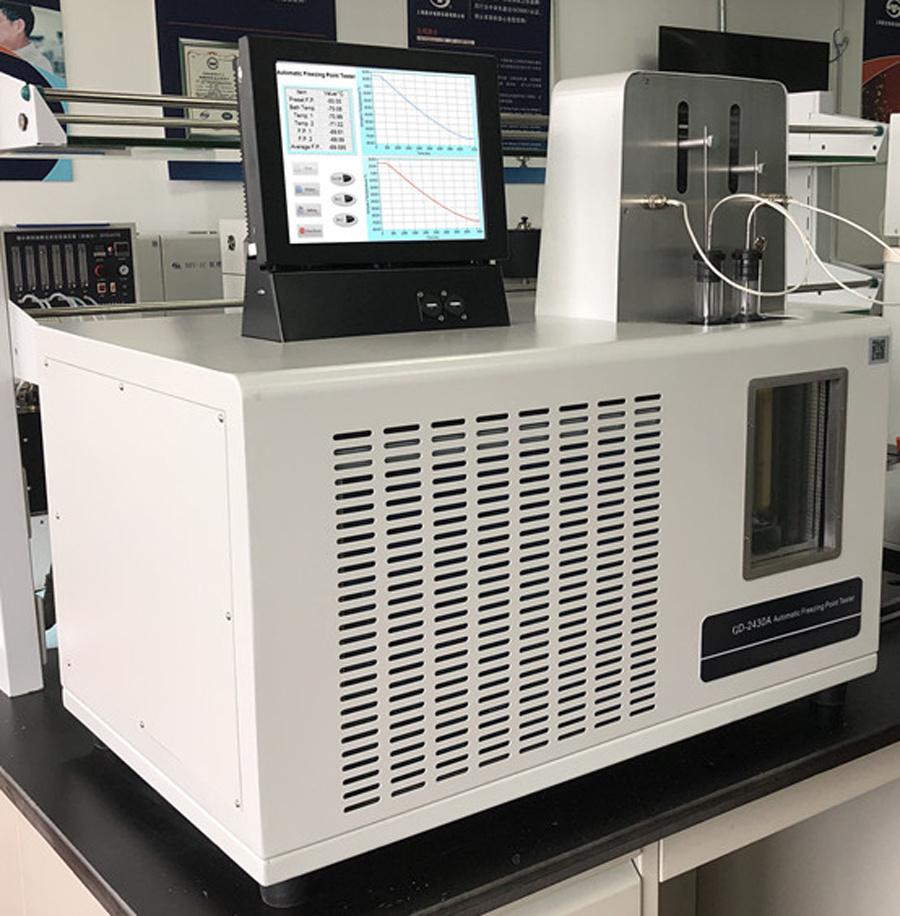

Automatic Freezing Point Tester of Gasoline ASTM D1177 and ASTM D2356



Automatic freezing point tester is designed and made as per ASTM D1177 and ASTM D2386. It can be used to test the freezing point of jet fuel, engine coolant and its concentrated solution.

 I.SummaryAutomatic freezing point tester is designed and made as per ASTM D1177,D2386 Standard Test Method for Freezing Point.
It is floor stand structure; double glass observation window; with the advanced temperature control technology, the lowest temperature is -70ºC;automatically judge the freezing point temperature.



II. Main technical specifications

1	Standard	ASTM D2386; ASTM D1177
2	Test parameters	Freezing point
3	Power supply	AC 220 V±10%, 50 Hz
4	Working bath	stainless steel,double vacuum glass observing window
5	Freezing point range	-54ºC~2ºC
6	Cold bath measurement temperature	-70ºC~20ºC
7	Temperature controlling accuracy	±0.5ºC
8	Bath liquids stirring	electric stirring.the power is 6W,1200r/min
9	Refrigerator system	imported refrigerator compressor
10	Sample stirring	mechanical stirring is 0~120r/min,continuously adjustable
11	Ambient temperature	≤30ºC
12	Maximum power consumption	2000 W
13	Dimension	560×550×810mm

III.Related products:

Parameter	GD-510G-1	GD-510D	GD-510F1	GD-2430A
Name	Petroleum products solidifying point tester	Petroleum products pour and cloud point tester	Multifunctional low temperature tester	Freezing point tester
Standards	ASTM D6371-05, ASTM D5771-12	ASTM D97, ASTM D2500	ASTM D97, ASTM D2500	ASTM D2386, ASTM D1177
Test parameters	Solidifying point, cold filter plugging point	Pour point, cloud point	Solidifying point, pour point, cloud point, cold filter plugging point	Freezing point
Full scale	Ambient~-70ºC	Ambient~-51ºC Ambient~-70ºC	Ambient~-70ºC	-70ºC~+20ºC
Temperature controlling accuracy	±0.5ºC	±1ºC	±0.5ºC	±0.5ºC
structure	Single trough two baths	Two through four baths	Four trough eight baths	Integrated

IV. How to order products?
---Send inquiry to us or contact with us via skype or trademanager

---Confirming the model, specification, price, qty, delivery time and payment method

---Sending invoice to customer

---Customer makes payment and send us receipt

---Arranging production

---Sending products picture to customer after the production is ready

---Shipping products to customer



V. Contact Us:

If you have interest, please feel free to contact with me:

Chongqing Gold Mechanical&Electrical Equipment Co., Ltd

website: chinainstrument.en.made-in-china.com
