ASTM D4294 Sulfur Content Tester in Crude Oil with Large Touch Screen

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：Petroleum Products Xrf Sulfur Content Analyzer Ast
  • Standard：ASTM D4294
  • Test Sample：Petroleum Oil with Sulfur Content 50 Ppm to 5%
  • Dimension：468*368*136mm
  • Delivery Time：10 Working Days(If Urgent, We Can Push)
  • Working Temperature：5~40 Celsius

Base Info

  • Model NO.：GD-4294
  • Relative Humidity：Less Than 85%
  • Power Supply：AC220V±20V, 50Hz
  • Usage：Used to Determine Mass% of Total Sulfur in Oil
  • Detection Limit：10 Ppm
  • Reproducibility (R)：<0.1215(S+0.05555)
  • Oil Sample Quantity：3 Ml
  • Transport Package：Wooden Case for Gd-4294
  • Trademark：GOLD
  • Origin：Chongqing, China
  • Production Capacity：100 Sets, Month

Description

Basic Info.

Model NO. GD-4294 Relative Humidity Less Than 85% Power Supply AC220V±20V, 50Hz Usage Used to Determine Mass% of Total Sulfur in Oil Detection Limit 10 Ppm Reproducibility (R) <0.1215(S+0.05555) Oil Sample Quantity 3 Ml Transport Package Wooden Case for Gd-4294 Trademark GOLD Origin Chongqing, China Production Capacity 100 Sets/ Month

Product Description

Total Sulphur Analyzer with Large Touch Screen


X-ray Fluorescence(XRF)method sulphur content analyzer; designed and made as per ASTM D4294; 8-inch Large color touch-screen; New type; RS232
ASTM D4294 Sulfur Content Tester in Crude Oil with Large Touch ScreenASTM D4294 Sulfur Content Tester in Crude Oil with Large Touch Screen

I. Introduction:Total sulphur content analyzer is specially designed as ASTM D4294 to determine sulfur content in the petroleum products rapidly and precisely with a minimum of sample.

II.Test samples:diesel fuel, jet fuel, kerosine, other distillate oil, naphtha, residual oil, lubricating base oil, hydraulic oil, crude oil, unleaded gasoline, gasoline-ethanol blends, biodiesel (see Note 2), and similar petroleum products


III. Main technical specification and parameters
1StandardASTM D4294
2Test methodX-ray Fluorescence(XRF) Method
3Measurement range50 ppm to 5%
4Detection limit10 ppm
5Oil sample quantity3 ml (it is equal to sample depth of 3 mm~4 mm)
6Measurement timeit can be set to 30s or 60s or 90s or 120s or 150s
7Calibration curve numbersit can save 10 calibration curves
8Power supplyAC 220V±20V, 50 Hz/60Hz; Rated power: 50 W
9Size and weight460mm×260mm×260mm; 12 kg


IV.Detail Images:

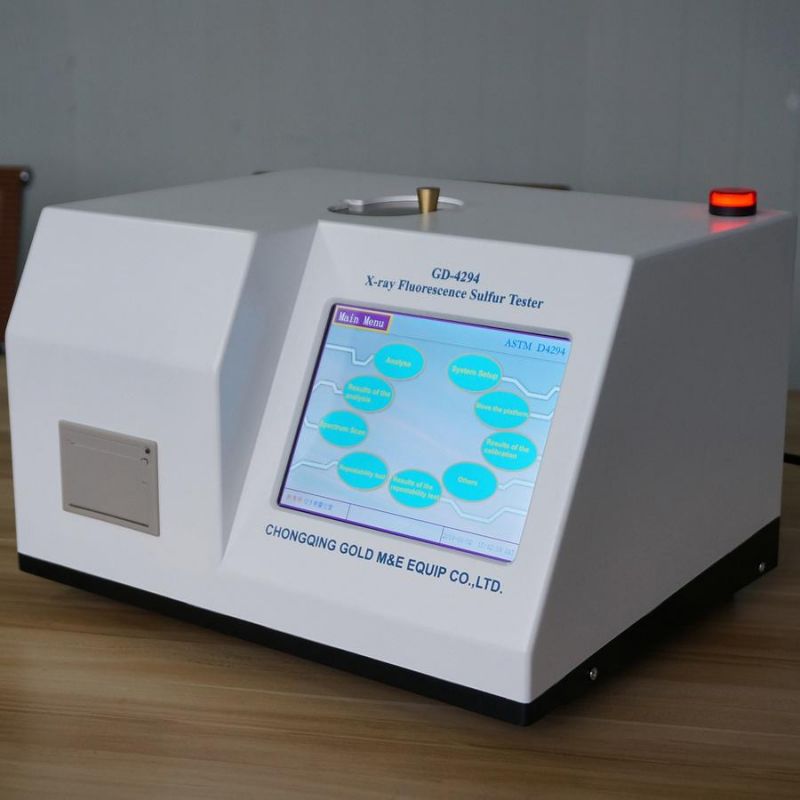

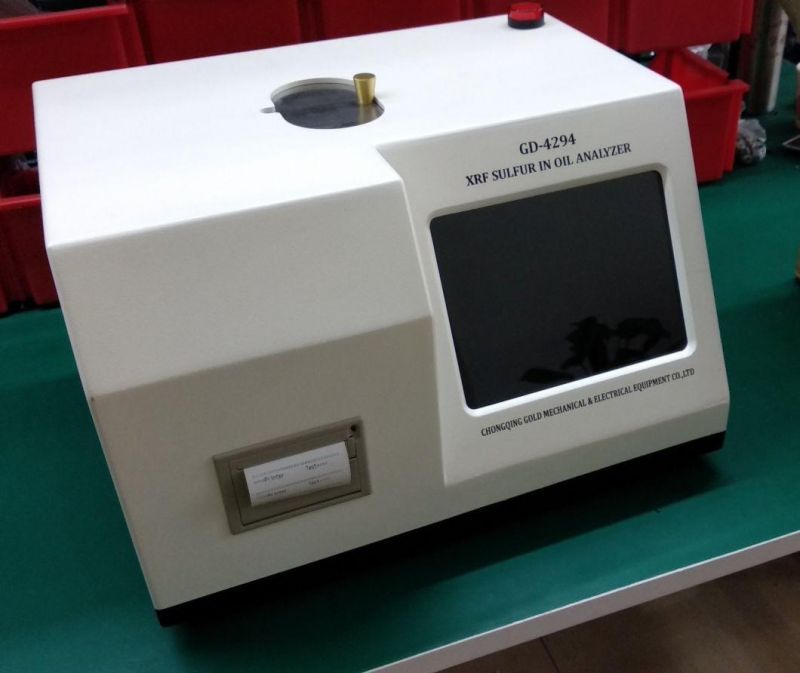

ASTM D4294 Sulfur Content Tester in Crude Oil with Large Touch ScreenASTM D4294 Sulfur Content Tester in Crude Oil with Large Touch Screen


V. Package
---Carton box, wooden case or specified package for total sulphur analyzer
 ---Suitable for international transport through shipping by sea, by air or any other delivery method.

  (Note: we can provide special packages according to buyer's requirements.)


VI. How to order products?

---Send inquiry to us or contact with us via skype or trademanager

---Confirming the model, specification, price, qty, delivery time and payment method

---Sending invoice to customer

---Customer makes payment and send us receipt

---Arranging production

---Sending products picture to customer after the production is ready

---Shipping products to customer



 VII. Contact Us:

If you have interest, please feel free to contact with me

Chongqing Gold Mechanical&Electrical Equipment Co., Ltd

website: chinainstrument.en.made-in-china.com
