• Model NO.：GDSL-D-1000
• Ambient temperature：-20 ºC to 50 ºC
• Current accuracy：≤ 1.5% (F.S)
• Delivery time：10 working days
• Size：520*350*740mm
• Weight：70kg
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9030899090
• Production Capacity：10000 Sets,Year

Basic Info.

Model NO. GDSL-D-1000 Ambient temperature -20 ºC to 50 ºC Current accuracy ≤ 1.5% (F.S) Delivery time 10 working days Size 520*350*740mm Weight 70kg Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030899090 Production Capacity 10000 Sets/Year

Product Description

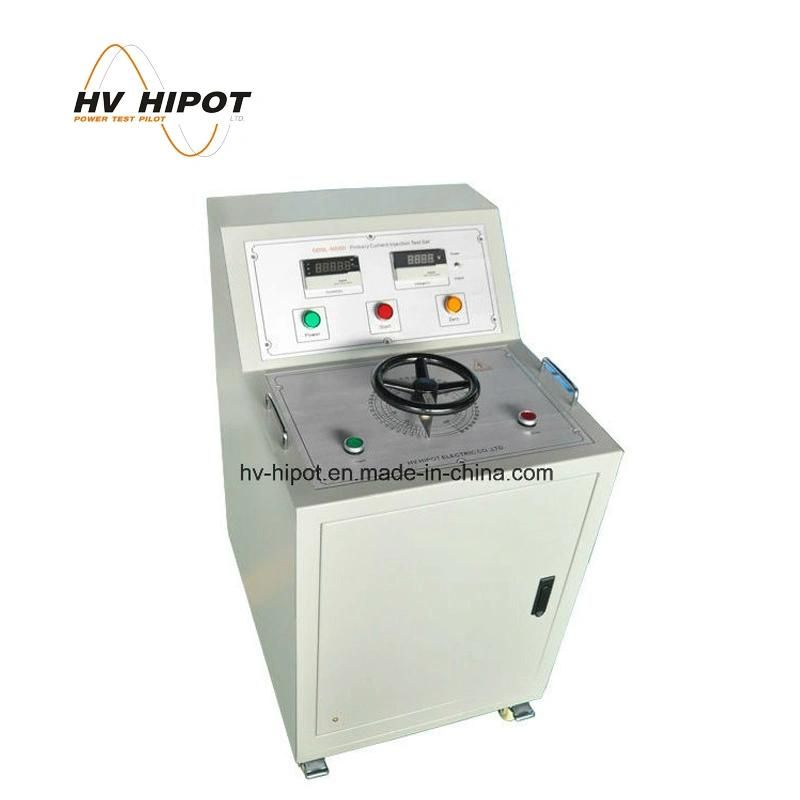

Digital Current Generator Current Injection Test Set

GDSL-D-1000 Primary Current Injection Test Set, is the ideal equipment for testing high-current device in the power and electric industry, used in power plants, distribution stations, electrical manufacturing and research institutes, with the features of small size, light weight, easy use and maintenance.



Features

1. Manual control, digital display of input voltage and output current.
2. Movable structure, current output is adjustable.
3. With zero protection function, to prevent the impact of large current damage to the tested objects, cannot start without zero position.

Specifications

Output current	0-1000A AC
Output Voltage	6V
Capacity	6kVA
Input voltage	AC220V, Single phase, 50Hz
Input current	27.3A
Operating time	1000A/2-3minutes; 500A/3-6minutes.
Timing range	1s-99h
Ambient temperature	-20 ºC to 50 ºC
Current accuracy	≤ 1.5% (F.S)
