• Model NO.：GW-103
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Mask Breathing Valve Air Tightness Tester
• Model No：Gw-103
• Export Markets：Global
• Control Method：Computer
• Micro-Pressure Measuring Range：-1000-0, Accuracy 1PA
• Buffer Tank Volume：5L
• Flow Meter：100ml , Min
• Basic Principle：Simulated Breathing by Vacuum Pump, and Detection
• Test Pressure：-1000-0
• Pressure Value Resolution：1PA
• Time Accuracy：0.1s
• Test Medium：Air
• Detection Flow：100ml , Min, Accuracy 0.1ml
• Scope of Application：Kn, Kp Breathing Masks
• Transport Package：Wooden Case
• Specification：50kg
• Trademark：Great Win
• Origin：China
• HS Code：8449009000
• Production Capacity：500 Pieces,Year

Basic Info.

Model NO. GW-103 Loading Method Dynamic Load Display Digital Control Computer Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Mask Breathing Valve Air Tightness Tester Model No Gw-103 Export Markets Global Control Method Computer Micro-Pressure Measuring Range -1000-0, Accuracy 1PA Buffer Tank Volume 5L Flow Meter 100ml / Min Basic Principle Simulated Breathing by Vacuum Pump, and Detection Test Pressure -1000-0 Pressure Value Resolution 1PA Time Accuracy 0.1s Test Medium Air Detection Flow 100ml / Min, Accuracy 0.1ml Scope of Application Kn, Kp Breathing Masks Transport Package Wooden Case Specification 50kg Trademark Great Win Origin China HS Code 8449009000 Production Capacity 500 Pieces/Year

Product Description

Testing standards:
GBT32610-2016 Respiratory protective equipment
GB2626-2006 Respiratory protective equipment

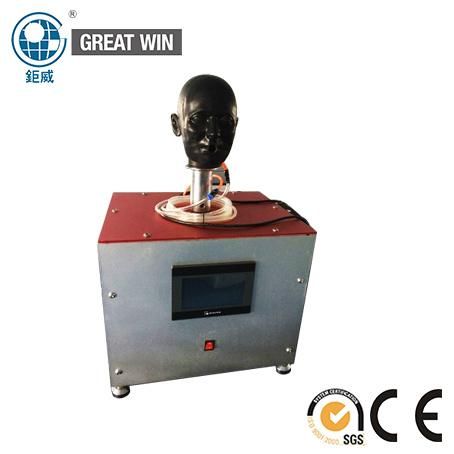

Breathing mask resistance tester and breathing valve air tightness tester are used for breathing resistance test of self-priming filtering anti-particle respirator and air tightness testing of breathing valve. The equipment is equipped with software, which can display pressure curve in real time and output test report Save test data. Meet the test standards GBT32610-2016, GB2626-2019 Respiratory protective equipment self-priming filter type anti-particle respirator standards. Can be used for KN type respirators and KP type respirators.
Features:
1. The equipment is equipped with vacuum pump and air pump for simulating artificial respiration.
2. The tester is equipped with a vacuum sensor, which is used to collect the test data pressure and reflect it into the computer software.
3. The pressure has stepless adjustable function, and can set technical parameters such as holding pressure and holding time.
Detector technical parameters:

Flowmeter range	2l / min
Control method	computer
Micro-pressure measuring range	-1000-0, accuracy 1pa
Timing accuracy of 0.1s	Vacuum pumping rate of 2L / min
Buffer tank volume	5L
Flow meter	100mL / min
Basic principle	simulated breathing by vacuum pump, and detection of pressure and flow
Test pressure	-1000-0
Pressure value resolution	1Pa
Time accuracy	0.1s
Test medium	air
Control method	computer
Detection flow	100mL / min, accuracy 0.1ml
Scope of application	KN, KP breathing masks

Configuration list:
1 pressure sensor,1 computer,Flow meter 1,Vacuum pump 1,Chassis 1,
Needle valve 2,Electrical appliances 1 set,Plc 1,Pressure relief valve 1
Software 1, buffer executive 1
