• Model NO.：HTPV-02AB
• Warranty：One Year
• The Mass of Fixture：8.9n
• Test Fixture Speed：150mm,S
• Carbon Steel Blade Thick：0.64mm
• Transport Package：Wooden Case
• Specification：IEC61215 standard
• Trademark：HOTOTECH
• Origin：Dongguan
• HS Code：9013809000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. HTPV-02AB Warranty One Year The Mass of Fixture 8.9n Test Fixture Speed 150mm/S Carbon Steel Blade Thick 0.64mm Transport Package Wooden Case Specification IEC61215 standard Trademark HOTOTECH Origin Dongguan HS Code 9013809000 Production Capacity 50 Sets Per Month

Product Description

PV Module Cut Susceptibility Testing Equipment

purpose
It's to determine whether any front and rear surfaces of the module made of polymeric materials are capable of withstanding routine handing during installation and maintenacne without exposing personnel to the danger of electric shock . this test is derived from ANSI/UL1703

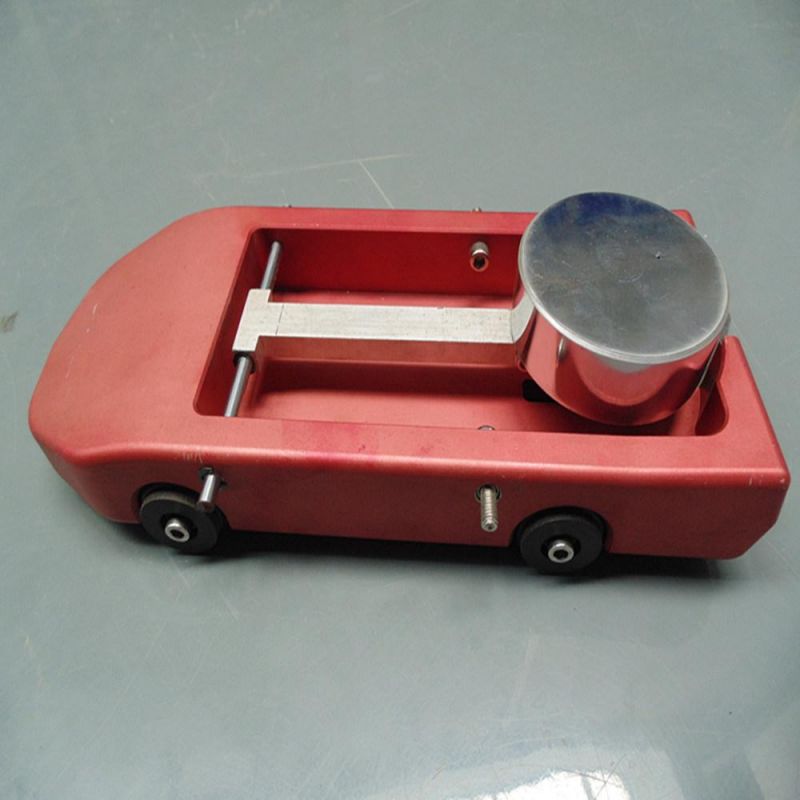

Apparatus
Designed to draw a defined shpaed object. A 0.64mm±0.05mm thick carbon steel blade (for example the back of a hacksaw blade) over the surface of the module with and applied force of 8.9N±0.05N

procedure
The procedure is as follow:
1.Position the module horizontally with the front surface facing upward
2.The test fixture is to be placed on the surface for 1 min and then draw across the surface of the module at a speed of (150±30)mm/s
Repeat a) and b) for the rear surface of the module

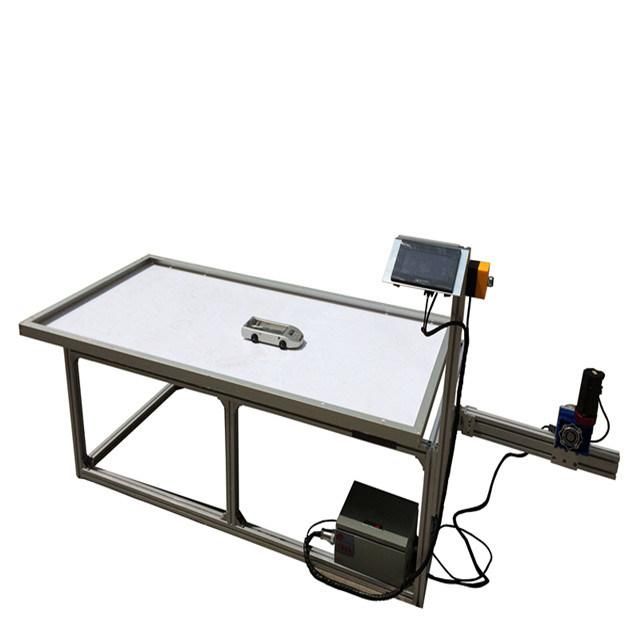

Product images show





Customers with us

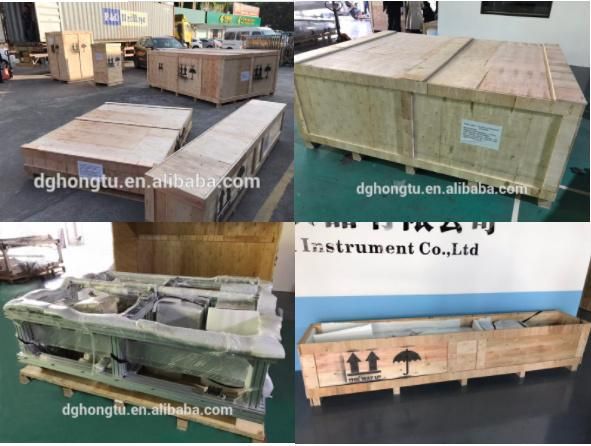

Package show
