• Model NO.：WAW-1500H
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Application：Steel Rebar, Tube, Metal, Copper, etc
• Capacity：100kn,300kn,600kn,1000kn,1500kn,2000kn
• Test Range：2%~100%
• Color：White, Blue or Customized
• Usage：Tensile, Compression, Bending, Shear, Peel, etc
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：1060*890*2260mm
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Set,Month

WAW-
300HWAW-
600HWAW-
1000HWAW-
1500HWAW-

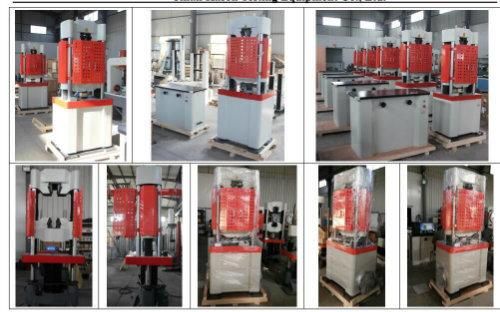

2000HMax Test Force300kn600kn1000kn1500kn2000knStructure6 columnControl wayConstant stress uniform deformation constant displacement three closed loop control and program controlMax.load 2000kNMiddle cross beam adjust methodNut rotateLoad accuracy≤±1% /≤± 0.5% Load range2%-100%FS /0.4%-100%FS Load resolution1/300000Deformation Measurement Range 2%~100%FSDeformation accuracy≤±1%/± 0.5%Displacement resolution 0.01mmDisplacement error≤±0.5%Max.piston stroke250mmMax piston moving speed 0-50mm/min stepless speed adjustingCrosshead lifting speed200mm/minMax. tension test space 8008008008501000Max.Compression Test Space650650600650750 Distance between columns460530650650780Clamping methodHydraulic clampRound specimen clamping range10-3213-4013-6013-60Φ12-Φ70Flat specimen clamping range0-150-150-200-200-35Flat specimen clamping width115mmCompression plate size Φ240mmBending roller distance450mmWidth of bending rollers 160mmPower supply3-phase,AC380V, 50Hz(can be customized)Real Pictures:

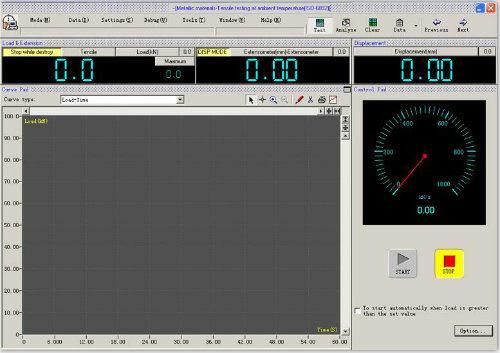

Software:

Package & Transportation :

CE Certificate:

Company information
