IEC 61000-4-5 15kv Combination Wave Simulator for Surge Immunity Test (SUR S15)

Shanghai Shinegil Trading Co., Ltd.
  • Product Name：Combination Wave Simulator
  • Application：Surge Immunity Test
  • Open-Circuit Voltage：0.2~ +,-15kv
  • Standard：IEC 61000-4-5
  • Power Supply：220V 50Hz (Custom)
  • Warranty：1 Year

Base Info

  • Model NO.：SUR S15
  • Custom Service：Available
  • Certificate：ISO9001
  • Transport Package：Export Wooden Case
  • Specification：weight: 40kg
  • Origin：Shanghai
  • Production Capacity：3000 Sets, Year

Description

ModelSUR S15Surge WaveformOpen-circuit voltage wave: 1.2/50μs
Short-circuit current wave: 8/20μsOpen-circuit Voltage0.2~ ±15kVShort-circuit Current0.1~± 7.5kAPolarityPositive/ negative/ alternatingPhase Angle0~ 359°synchronous, asynchronous, or automaticEffective output impedance2Ω (common mode 12Ω)Coupling/ decoupling networkBuilt-in, single-phase three-wire, 20A
(customer specific on demand)Coupling modeDifferential mode 18μF, common mode 9μF/ 10ΩCount1~ 9999Interval10~ 9999sPower SupplyAC 220V ±10% 50/ 60HzAmbient Temperature15ºC~35ºC
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!
IEC 61000-4-5 15kv Combination Wave Simulator for Surge Immunity Test (SUR S15)

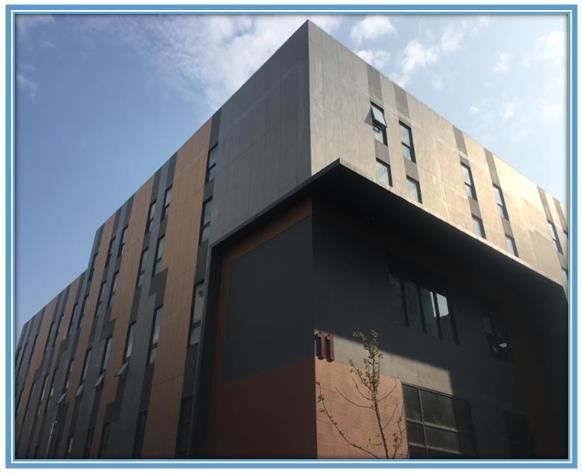

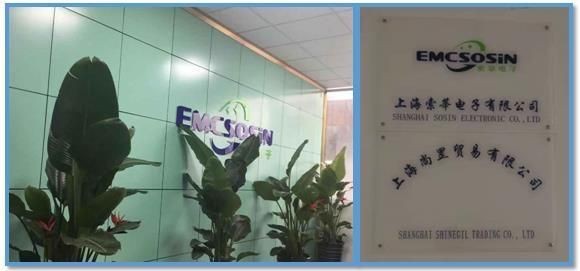

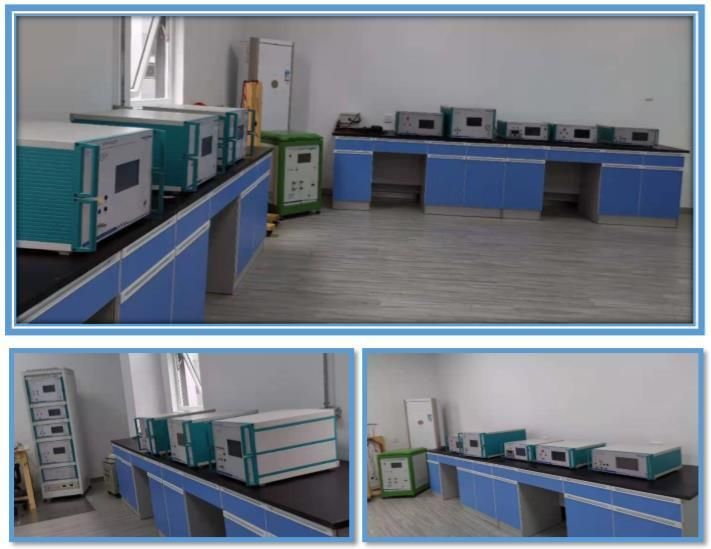

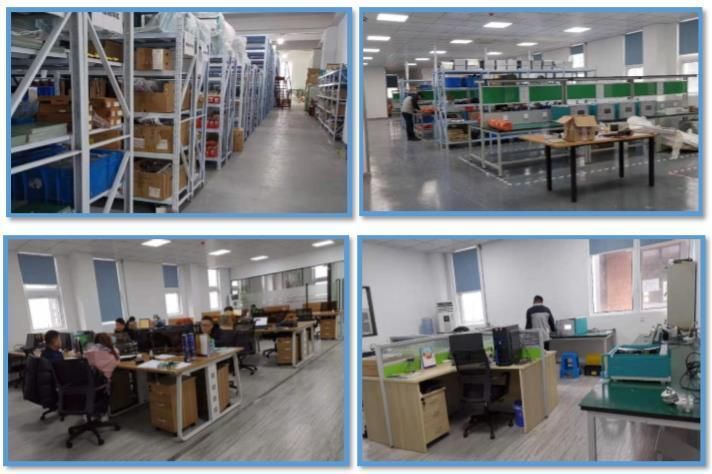

Manufactory and Office
IEC 61000-4-5 15kv Combination Wave Simulator for Surge Immunity Test (SUR S15)
IEC 61000-4-5 15kv Combination Wave Simulator for Surge Immunity Test (SUR S15)
IEC 61000-4-5 15kv Combination Wave Simulator for Surge Immunity Test (SUR S15)

Qualification and Certificate
IEC 61000-4-5 15kv Combination Wave Simulator for Surge Immunity Test (SUR S15)

Our Client
IEC 61000-4-5 15kv Combination Wave Simulator for Surge Immunity Test (SUR S15)

Packing
IEC 61000-4-5 15kv Combination Wave Simulator for Surge Immunity Test (SUR S15)

Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.

If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com

We look forward to working with you sincerely!
