• Model NO.：STM-8
• Weight：135kg
• Power Source：AC220V
• Standard：ASTM D1559, D5581
• Transport Package：Plywood Case
• Trademark：YF
• Origin：China
• HS Code：9031809090

Basic Info.

Model NO. STM-8 Weight 135kg Power Source AC220V Standard ASTM D1559, D5581 Transport Package Plywood Case Trademark YF Origin China HS Code 9031809090

Product Description

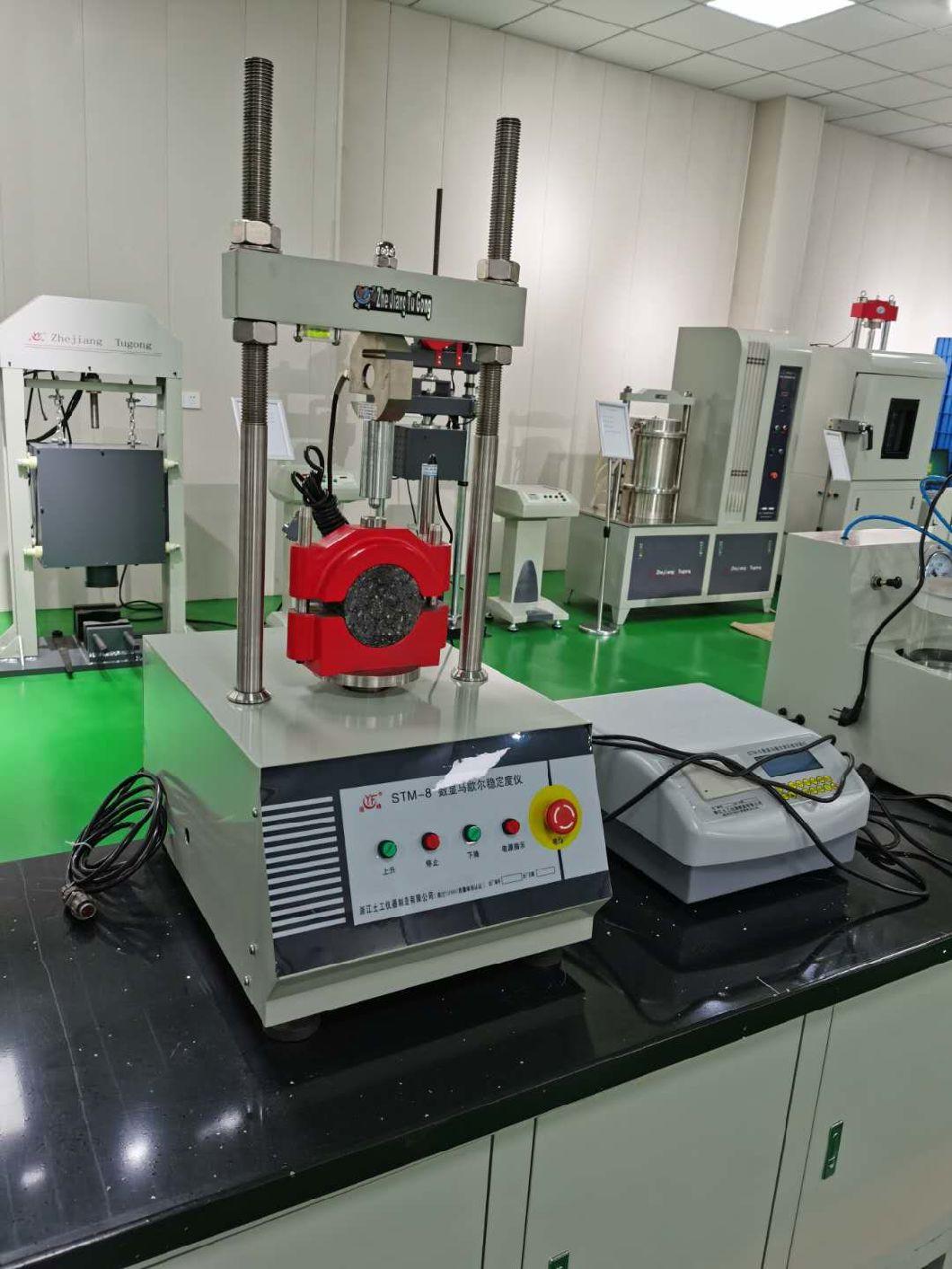

Marshall compression testers
Standard: ASTM D1559, AASHTO T245, NF P98-251-2, CNR NO. 30, ASTM D5581 (4" DIA. SPECIMENS) EN 12697-34, 12697-23, 12967-12, D 6927

Features:
1.Adopt European design, equipped with one S  shape load cell and  displacement sensors, peak value automatically preserved and printing, the principal axis automatically fall after printing
2.Advance bench-mounted mechanical load frame with build-in digimatic display unit with ruggedly constructed to compass the strain loads involved with the test.
This machine supplied with high accuracy load cell & displacement transducer 15 mm stroke ± 1% indipendent linearity.
3.Handle provided for manual operation during calibration. 4"diameter stability mould & mini printer with graf also available as optional accessories.



Model	STM-8
Capacity	0-50kN precision:1%
Resolution	0.1kN,0.01kN
Twin displacement structure, displacement resolution	0.01mm
Environment temperature	-10ºC-40ºC
Test speed	50.8mm/minute
Supplied with one breaking head	diameter 101.6mm or 152.4mm
Flow value range	0-15.00mm
