Asphalt Lab Equipment Automatic Softening Point Ring and Ball Test Apparatus ASTM D36

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Product Name：Automatic Softening Point Ring and Ball Test Appar
  • Standard：ASTM D36
  • Features：Automatic
  • Measurement Range：32~160 Celsius
  • Measurement Resolution：0.01 Celsius
  • Heating Rate：5 Celsius Automatically After Three Minutes

Base Info

  • Model NO.：GD-2806G
  • Sample Quantity：2
  • PC Port：Yes
  • Printing：Yes
  • Transport Package：Wooden Case for Automatic Ring and Ball Sofening P
  • Trademark：GOLD
  • Origin：China
  • Production Capacity：100 Sets, Month

Description

Basic Info.

Model NO. GD-2806G Sample Quantity 2 PC Port Yes Printing Yes Transport Package Wooden Case for Automatic Ring and Ball Sofening P Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

Lab Automatic softening Point Ring and Ball Test Apparatus ASTM D36

I.Summary
The Softening Point ring and ball test apparatus is designed and made as per ASTM D36 Standard Test Method for Softening of Bitumen (Ring-and-Ball Apparatus).

Softening Point ring and ball test apparatus is suitable to determine softening point of petroleum asphalt, coal pitch, liquid petroleum asphalt, and various asphalts.

Softening Point ring and ball test apparatus can be widely used for asphalt manufacturing companies, highway and bridge construction companies, relative colleges and universities, and scientific research institutes.



II. Main technical features
1. This Softening Point ring and ball test apparatus adopts microcomputer to control the test. Automatically stir,linear heating, automatically detect the result, automatically print test result.

2. The beaker adopts high temperature resisting glass material. The sizes of steel ring and ball can meet standards.

3. Small desktop structure. LCD display. Light touch panel. It can determine two samples at a time. Easy to use and results reliable.

4. Equips a RS-323C port. Can communicate with PC


 III. Main technical specifications
1. Power supply:  AC(220±10%)V, 50Hz
2. Temperature resolution: 0.1 ºC
3. Measurement range:
(1) Heating medium: distilled water 20 ºC~90ºC(softening point <=80 ºC)
(2) Heating medium: glycerin 70ºC~160ºC(softening point >80 ºC)
4.Heating rate: it will be adjusted to 5.0±0.5 ºC/ min automatically after three minutes
5.Heating power: 600 W
6.Stirrer: the electromagnetic stirring speed can be adjusted continuously, the stirring speed is (0~300) r/min
7. Cubage of beaker: 1000 ml
8.Test result: LCD screen shows results and printer to print.
9. Computer communication interface: RS-232C communication interface
10. Ambient temperature: 15ºC~35ºC
11. Relative humidity: ≤85%
12. Total power consumption: <700 W
13.Dimension: 400mm×300mm×250mm

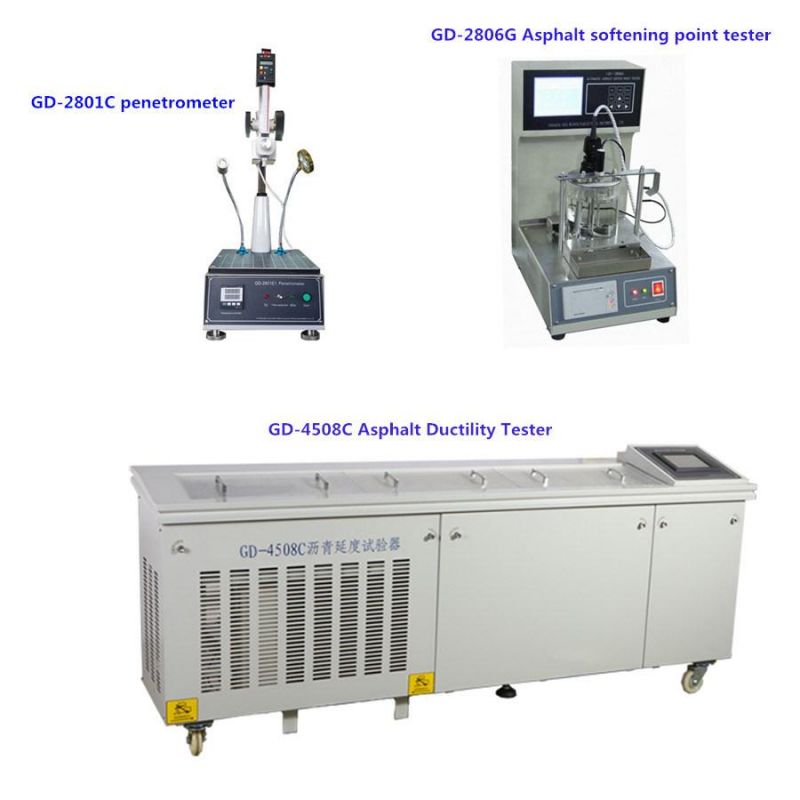

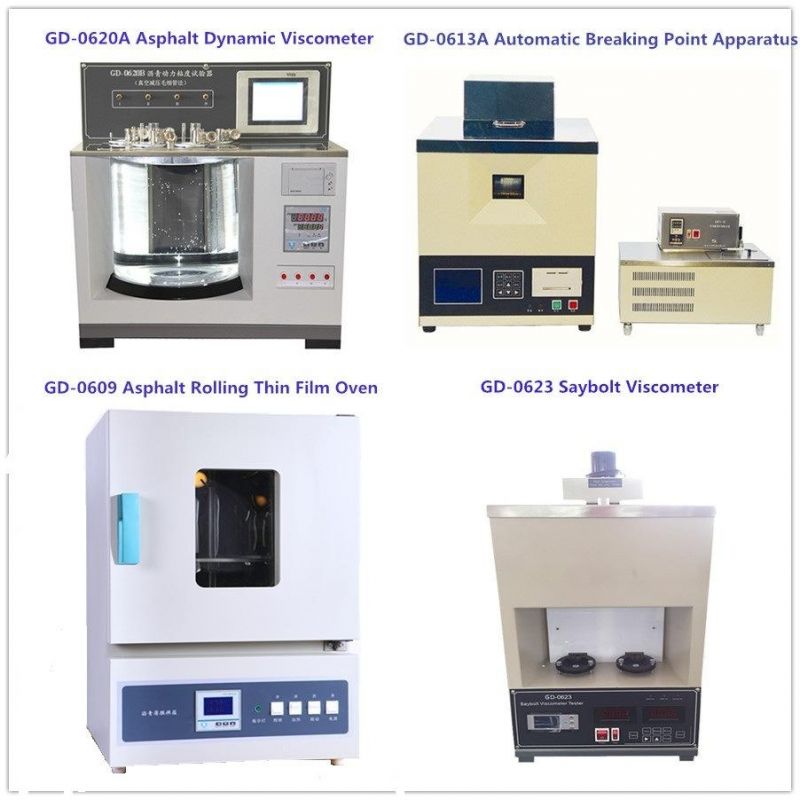

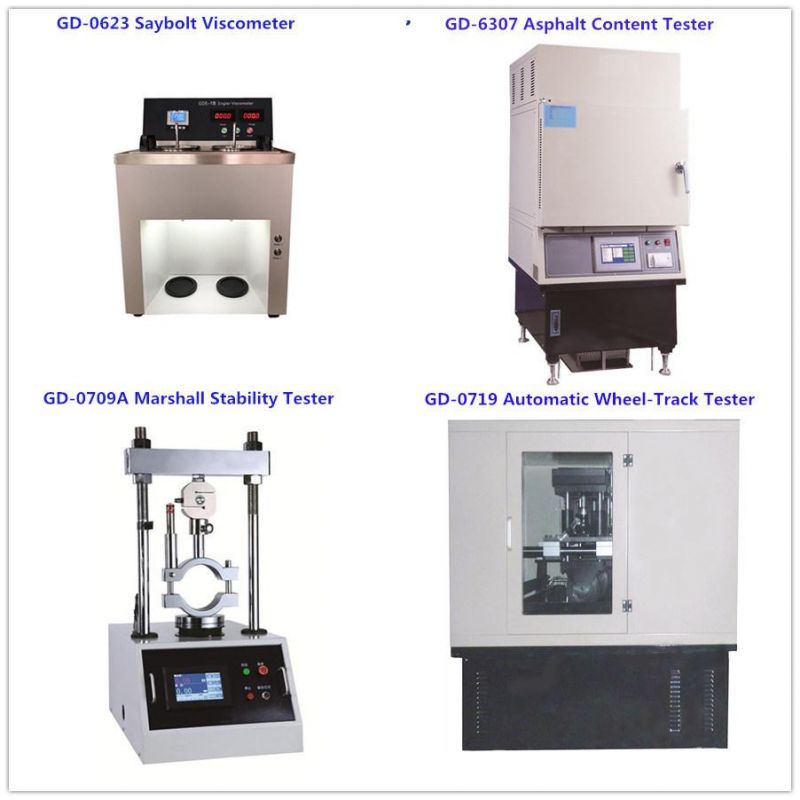

IV. Other Asphalt Testing Instrument:
Asphalt Lab Equipment Automatic Softening Point Ring and Ball Test Apparatus ASTM D36
Asphalt Lab Equipment Automatic Softening Point Ring and Ball Test Apparatus ASTM D36
Asphalt Lab Equipment Automatic Softening Point Ring and Ball Test Apparatus ASTM D36
