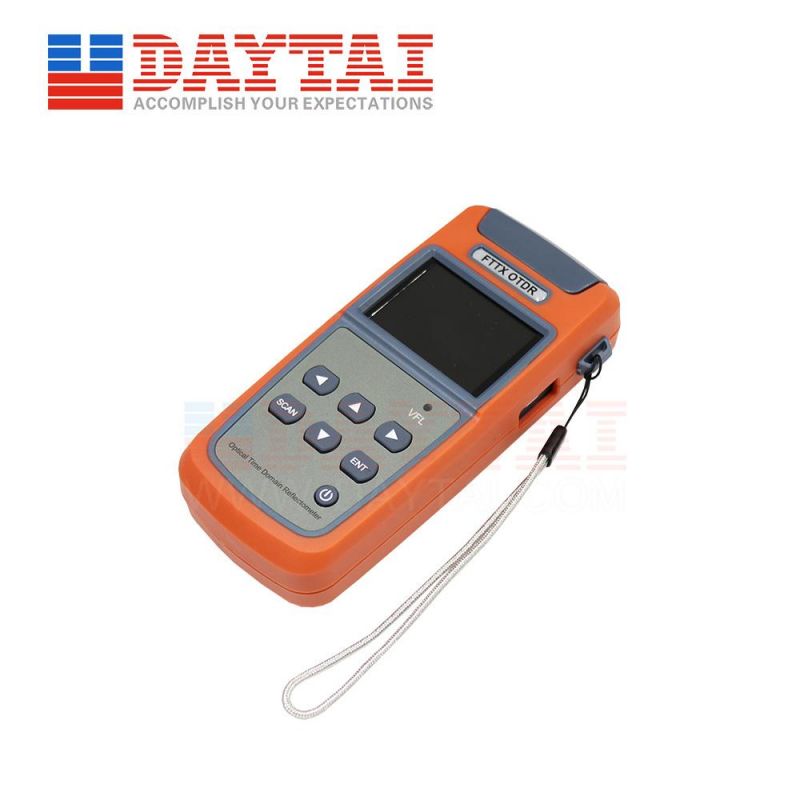

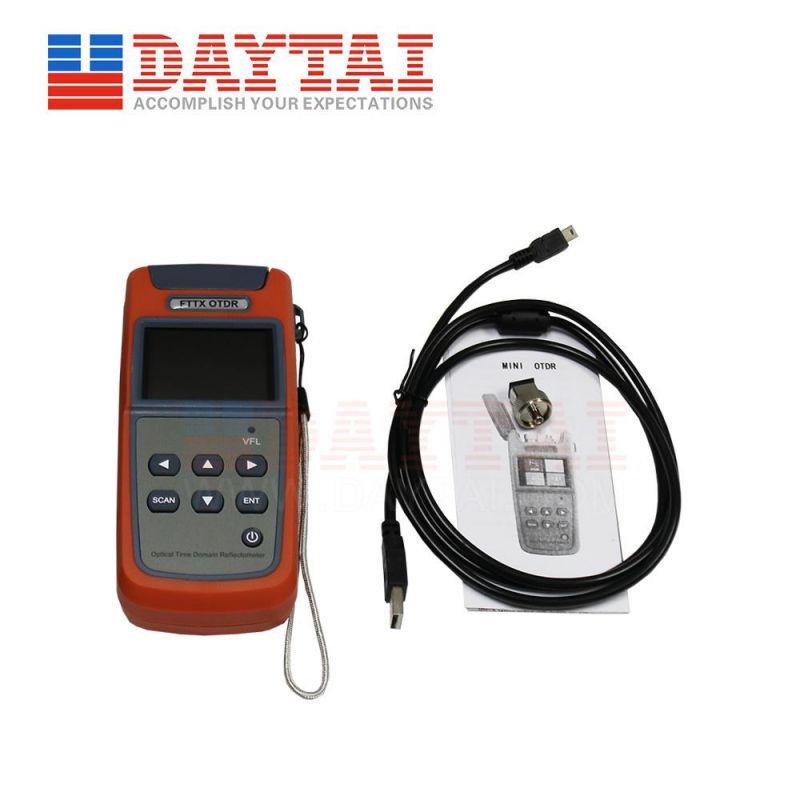

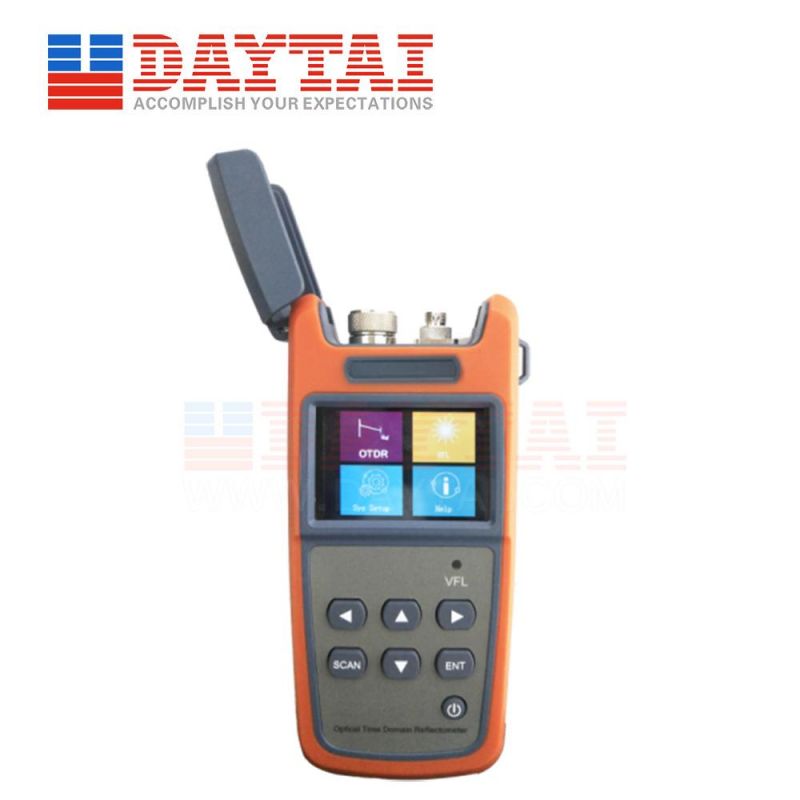

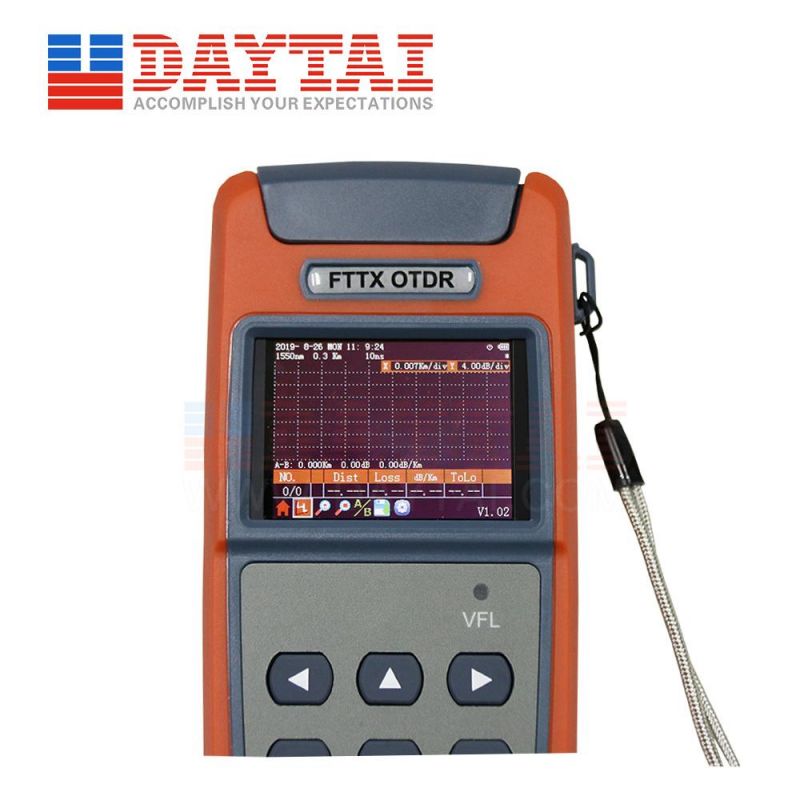

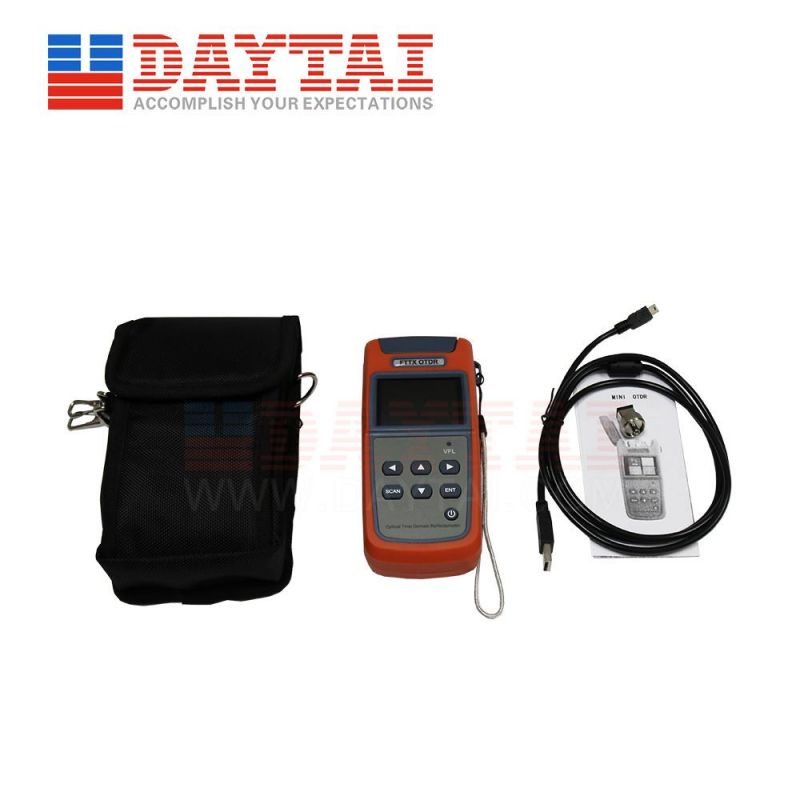

High Quality Mini OTDR-60km-22dB (DT-7305A) Pon OTDR
Hangzhou DAYTAI Network Technologies Co., Ltd.- Connectors：Sc,FC
- Test Mode：Other
- Usage：Network Cable Tester
- Cable Type：Other
- Power：Electricity
- Certification：CE, FCC, RoHS, ISO
Base Info
- Model NO.：OTDR 7305A
- Customized：Customized
- Trademark：DAYTAI
- Origin：Japan
- Production Capacity：10000,Month
Description
Basic Info.
Model NO. OTDR 7305A Customized Customized Trademark DAYTAI Origin Japan Production Capacity 10000/MonthProduct Description
★DescriptionMini OTDR-60KM-22dB (DT-7305A),Wavelength:1310nm or 1550nm is optional,
Type of fiber:9/125um SM Fiber,Connector:FC,SC/PC,Event blind zone:3m,

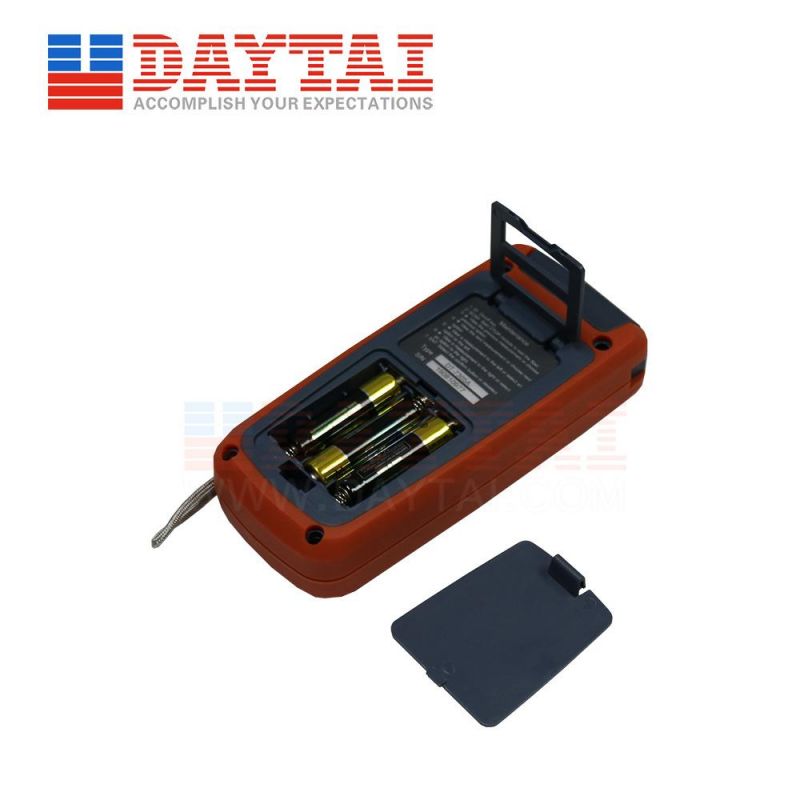

Attenuation blind:10m,Power Supply:3pcs of Dry battery,Battery Work time:≥2000 times measure,Save Data:>500,Work Temperature:-5~40ºC,Save Temperature:
-10~60ºC,humidity:0~85%(no condensation,Net weight:300g.
★Specification
| Model | MINI OTDR |
| Wavelength | 1310nm or 1550nm |
| Type of fiber | 9/125um SM Fiber |
| Connector | FC,SC/PC |
| Dynamic Range | 22dB |
| Pulse Width | 10ns~ 2.5us,Auto |
| Measurement | m |
| Event blind zone | 3m |
| Attenuation blind | 10m |
| Range accuracy | ±(1m+2×10-4×distance) |
| VFL | ≥1mW |
| Power Supply | 3pcs of Dry battery |
| Battery Work time | ≥2000 times measure |
| Save Data | >500 |
| Work Temperature | -5~40ºC |
| Save Temperature | -10~60ºC |
| humidity | 0~85%(no condensation) |
| Net weight | 300g |
