Foaming Tendencies of Oil Tests ASTM D892 Lubricating Oils Foam Test Apparatus

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Type：Universal Testing Machine
  • Weight：0-100Kg
  • Power Source：AC220V
  • Test Method：ASTM D892
  • Foam Test：Analyzing The Foaming Tendency of a Lubricant
  • Test Object：Lubricating Oils at 24c and 93.5c

Base Info

  • Model NO.：Foam Test Apparatus
  • Air Flow Rate：(94+,-5)Ml,Min, Adjustable
  • High Temperature Bath：(Room Temp.~99.9)C
  • Low Temperature Bath：(5~99.9)C
  • Temperature Control Accuracy：+,-0.5c
  • Timer：5min and 10min, Accurate to Second
  • Net Weight：48kg
  • Transport Package：Plywood
  • Origin：Made in China
  • HS Code：9031809090
  • Production Capacity：200 PCS , Month

Description

Basic Info.

Model NO. Foam Test Apparatus Air Flow Rate (94+/-5)Ml/Min, Adjustable High Temperature Bath (Room Temp.~99.9)C Low Temperature Bath (5~99.9)C Temperature Control Accuracy +/-0.5c Timer 5min and 10min, Accurate to Second Net Weight 48kg Transport Package Plywood Origin Made in China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

FOAMING TENDENCIES OF OIL TESTS ASTM D892 Lubricating Oils Foam Test Apparatus

Foaming Tendencies of Oil Tests ASTM D892 Lubricating Oils Foam Test Apparatus

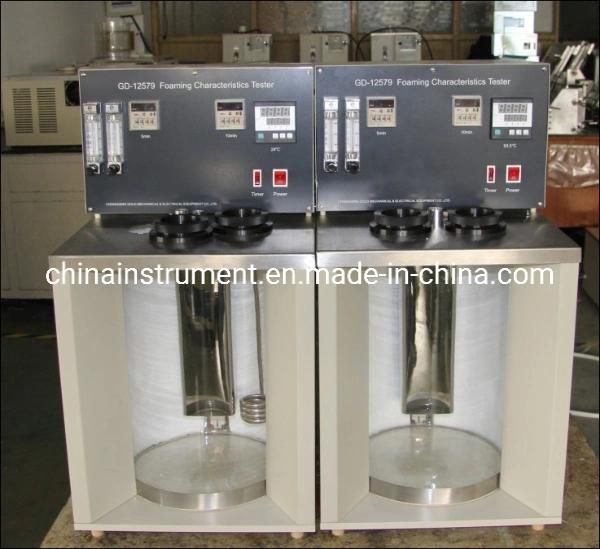

Lubricating Oils Foam Test Apparatus:

The Lubricating Oils Foam Test Apparatus is designed and made as per standards GB/T12579 Determination of foaming characteristics of lubricating oils and ASTM D 892 Standard Test Method for Foaming Characteristics of Lubricating Oils. The Lubricating Oils Foam Test Apparatus is used to determine the foaming tendency and stability of lubricating oils.


Features:

1. The Lubricating Oils Foam Test Apparatus adopts all-in-one structure. It includes three parts: low temperature test part and it's control, high temperature test part and it's control, a portable cooler for low temperature test part.
2. The temperature controller has parameters modifying function. If there is bias between showing temperature and testing temperature,it ca be corrected by this function.
3. The Foaming Characteristics Tester equips an automatic timing alarm.


Specifications:

1. Power supply:  AC(220±10%)V, 50Hz
2.Total power consumption: ≤2700W
3. Air flow rate:  (94±5)ml/min,adjustable
4. Temperature control range for high temperature bath: (Room temp.~99.9)ºC
5. Temperature control range for low temperature bath:  (5~99.9)ºC
6. Temperature control accuracy: ±0.5ºC
7. Timer: 5min and 10min,accurate to second
8. Ambient temperature: (15~35)ºC; Relative humidity: ≤85%
9. Dimension: Main unit:690mm×460mm×700mm; Cooler:400mm*450mm*300mm
10.Net weight: 48kg.
