• Model NO.：GD-265H
• Application：Kinematic Viscosity of Liquid Petroleum Products
• Instrument Display：Colored LCD Display
• Working Efficiency：It Can Do 4 Samples at The Same Time
• Bath Capacity：20L
• Capillary Viscometer Tubes：4 Capillary Viscometers
• Stirring Motor：1200 Rpm
• Warranty：12 Months
• Transport Package：Plywood
• Origin：Made in China
• HS Code：9031809090
• Production Capacity：200 PCS , Month

Basic Info.

Model NO. GD-265H Application Kinematic Viscosity of Liquid Petroleum Products Instrument Display Colored LCD Display Working Efficiency It Can Do 4 Samples at The Same Time Bath Capacity 20L Capillary Viscometer Tubes 4 Capillary Viscometers Stirring Motor 1200 Rpm Warranty 12 Months Transport Package Plywood Origin Made in China HS Code 9031809090 Production Capacity 200 PCS / Month

Product Description

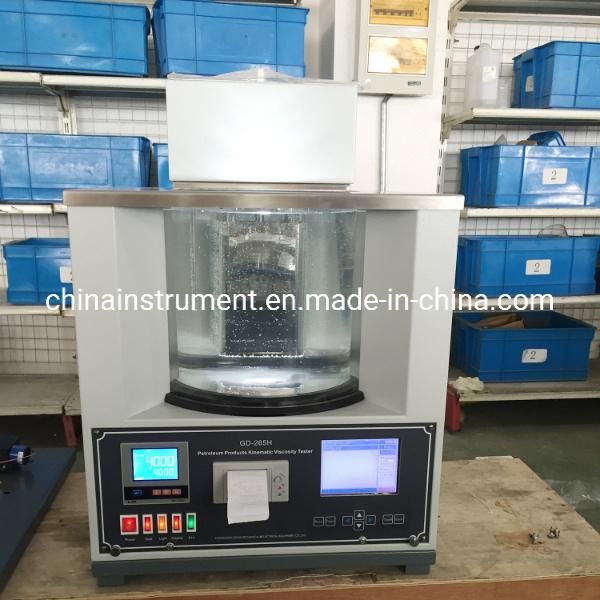

Automatic KV Kinematic Viscosity Bath for kinematic viscosity measurement of oil



Regarding Kinematic Viscosity:

The definition of viscosity is a measure of a liquid's resistance to movement. It means how thick or thin the liquid is, how easily it flows.

Kinematic Viscosity is a measure of resistance to the liquid moving.This is different to Dynamic viscosity, which measures the resistance of another object moving through the liquid.

The time taken for the liquid to flow is measured, it could be the time it takes to travel through a capillary, or through a cup with a hole in the base.

The Kinematic Viscosity reported in centiStokes (cSt) or report in mm2/s.


Key Features:

1. Colored LCD display, it can display time and test results.
2. The Kinematic Viscosity Bath adopts glass bath and electric stirrer, easy to observe the sample and ensure the uniform of bath temperature.
3. The Kinematic Viscosity Bath can do 4 samples at the same time.
4. High accuracy.
5. The Kinematic Viscosity Bath can preset the viscosity coefficient , calculate the viscosity after the test and print the test results automatically. Easy to operate.


Specifications:

1. Power supply:AC(220±10%)V, 50Hz;
2. Total power consumption: ≤1800W;
3. Temperature range:Ambient to 100.0ºC
4. Temperature control accuracy:±0.01ºC
5. Bath capacity:20L
6. Timing range: 0.0s~9999.9s
7. Timing accuracy: ±0.05% within 60min
8. Amount of capillary viscometer tubes: 4 capillary viscometers
9. Stirring motor:1200 RPM
10.Working condition: 15ºC~35ºC, RH: ≤85%
11.Temperature sensor: RTD, Pt100
12.Capillary viscometers tubes(Pinkevitch viscometer): 7 pieces in total.The inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm
13.Dimension:  530mm×400mm×670mm
