• Model NO.：GD-H1705
• Screen Display Content：Test Pressure, Test Time, Sample Constant Temperat
• Result Calculation：Windows Version High Temperature and High Shear VI
• Working Power：AC220V 50Hz
• Transport Package：Wooden Case for High Temperature and High Shear Dy
• Trademark：GOLD
• Origin：China
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. GD-H1705 Screen Display Content Test Pressure, Test Time, Sample Constant Temperat Result Calculation Windows Version High Temperature and High Shear VI Working Power AC220V 50Hz Transport Package Wooden Case for High Temperature and High Shear Dy Trademark GOLD Origin China Production Capacity 100 Sets/ Month

Product Description

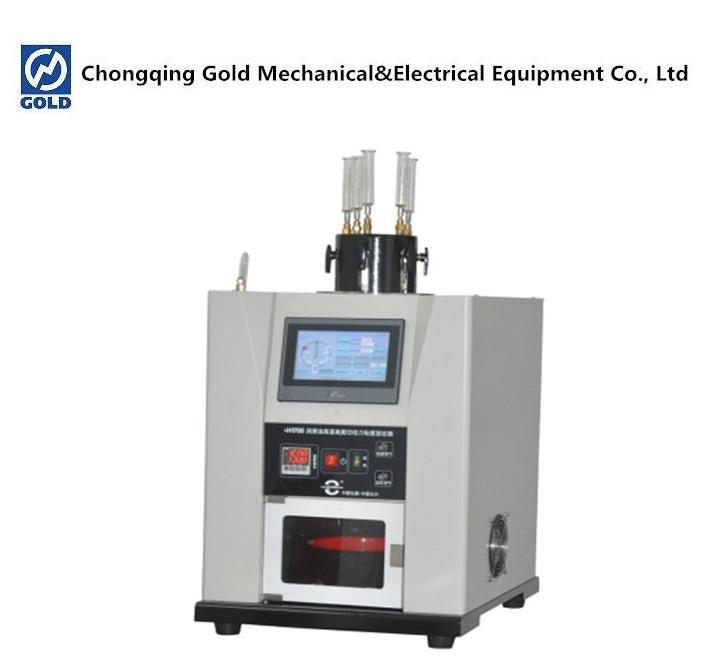

ASTM D5481 HTHS High Temperature and High Shear Dynamic Viscometer

ASTM-D5481 Standard Test Method for Measuring Apparent Viscosity at High-Temperature and High-Shear Rate by Multicell Capillary Viscometer.
Our HTHS viscometer can do 5 units at one time; touch screen;



I. Product introduction
  Our HTHS viscometer is designed and made as per ASTM D5481. It mainly determines the apparent viscosity of lubricating oil at high temperature and high shear rate.


II. Technical Parameters

1	Applicable standard	ASTM D5481
2	Heating method	electric heating rod heating
3	Test temperature	normal temperature ~ 150 ºC ± 0.1 ºC
4	Working unit	5 unit tube
5	Control method	touch LCD screen
6	Screen display content	test pressure, test time, sample constant temperature time
7	Result calculation	Windows version high temperature and high shear viscosity calculation software
8	Working power	AC220V 50HZ
9	Working gas source	nitrogen or other inert gas (provided)

III. Main feature
1. Equipped with special high shear viscosity calculation software;
2. No solvent cleaning is needed, only a small number of new samples can be washed;
3. the HTHS viscometer ASTM D5481 allows 24 hours a day, 365 days of uninterrupted operation;
4. The glass capillary meets the standard requirements, with a diameter of 0.15mm and a length of 16mm;
5. For research purposes, users can set different shear rates and test temperatures;
6, 5 sample units can be measured continuously and quickly one by one, and 15 to 20 samples can be made per hour;
7, touch LCD screen control, can be directly operated on the LCD screen;
8. The software automatically recommends the test pressure, and the test results can be generated into an Excel report;
