• Model NO.：GD-265C
• Transport Package：Wooden Case
• Specification：300mm*340mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply: AC(220±10%)V,50Hz±5%2. Heating power: 1600W3. Stirring motor: 6W, 1200RPM4. Temperature control range:  Ambient to 100ºC5. Temperature control accuracy: ±0.1ºC6. Constant temperature bath: 20L,double shell structure7. Working environment: Ambient temperature: room temperature~35ºC,Relative humidity: ≤85%8. Temperature sensor:   RTD, Pt1009. Maximum power consumption:  1800W10. Capillary viscometer tubes

(Pinkevitch viscometer)7 pieces in total, inner diameter for each:

0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm

11. Dimension:  530mm×400mm×670mm



Introduction:

This kinematic viscometer bath is designed and made as per ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent

and Opaque Liquids. It is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian fluids) by measuring

the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer at a constant temperature.



Main technical features

1. This kinematic viscometer apparatus adopts LCD temperature controller,having features of rapid temperature control,
fast response,small overshoot. The temperature control accuracy can reach ±0.1ºC.

2. The kinematic viscometer apparatus adopts hard glass bath and heat preservation shell(double shell structure).The heat preservation
property is good. Easy to observe the sample.

3. The kinematic viscometer apparatus adopts desktop and all-in-one design.The integrality is good.Convenient to operate.

4. The kinematic viscometer apparatus adopts electric stirring device.The temperature in water bath is uniform.

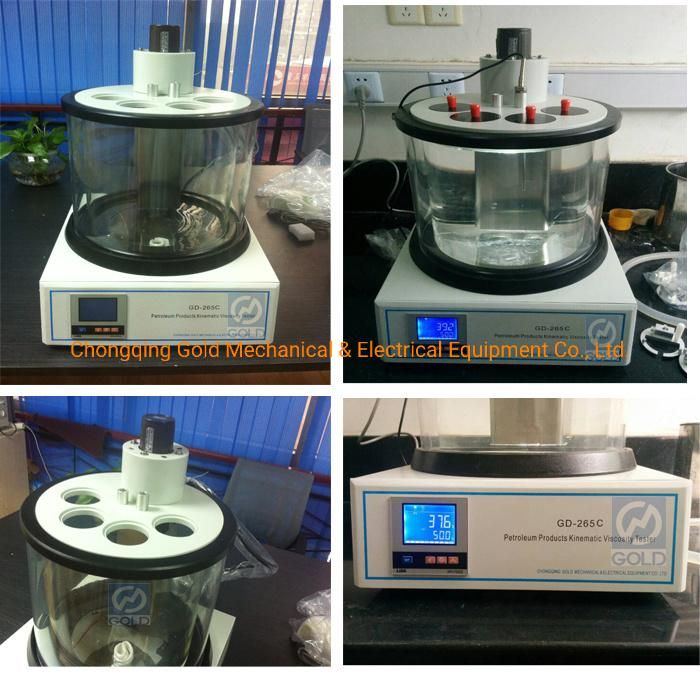

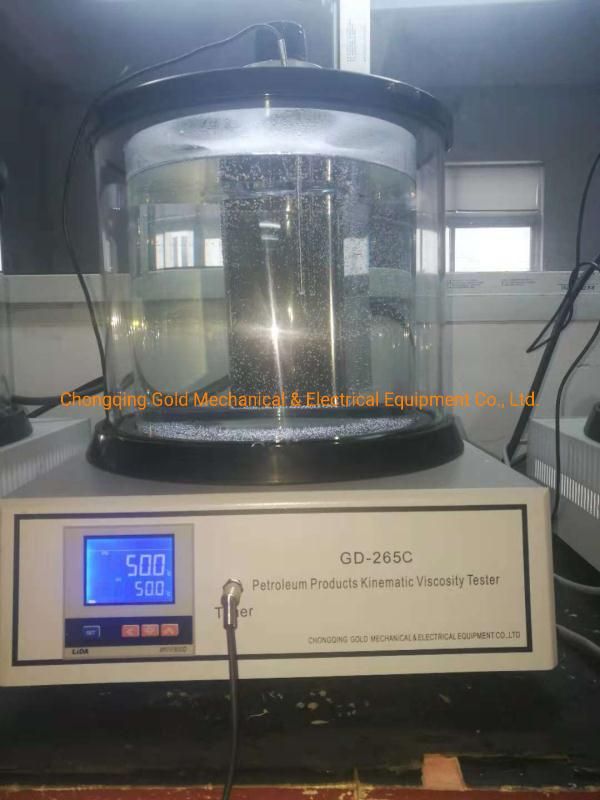

Detail Images:

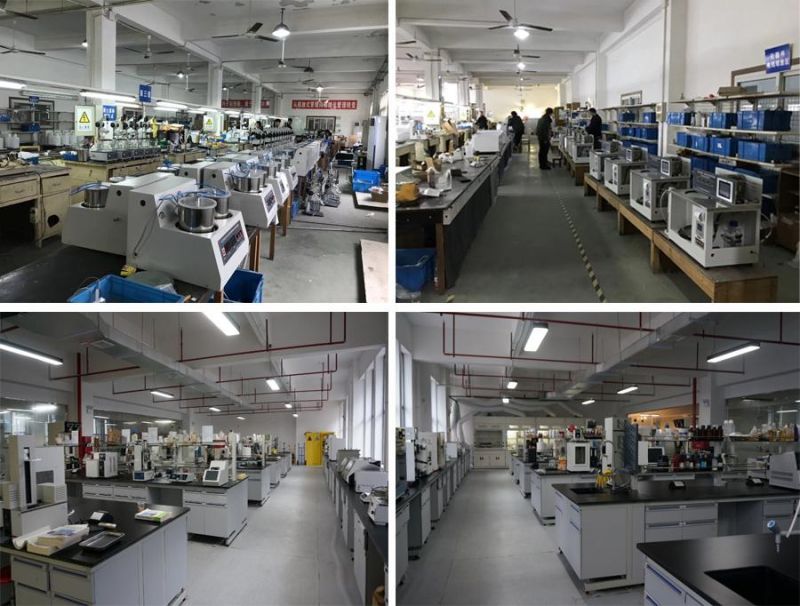

Workshop

Exhibition

We have developed sales channels in many countries such as the UAE, Saudi Arabia, Malaysia, Thailand, Pakistan,India, Germany, Belgium, the USA, Mexico, Kenya, Nigeria, South Africa, and other countries worldwide. And we have gained a strong advantage and high reputation in the international market.

After several years' development, our products have become highly intelligent and wide coverage.
And our company has become one of the leading manufacturers of petroleum testing instrument and electrical testing instrument.

Brazil ANALITICA LATIN AMERICA 2017 Photos Show

Packing

Goods are packed in veneer case, which is firm and safe for overseas shipment.

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:

http://chinainstrument.en.made-in-china.com
