• Model NO.：GD-265E
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-265E HS Code 9031809090 Production Capacity 100sets/Month

Product Description

Asphalts / Bitumens Kinematic Viscometer for Viscosity of Bitumen




Introduction:
The Asphalts / Bitumens Kinematic Viscometer is designed and made as per the national standard of People's Republic of China GB/T1841 and ASTM D2170 Standard Test Method for Viscosity of Polyolefin Resin Solution.
The Asphalts / Bitumens Kinematic Viscometer is used to determine the viscosity of decahydronaphthalene solution of polythene and polypropylene at the stipulated temperature. The instrument can also be used to determine the viscosity of asphalt at the stipulated temperature as per the industrial standard of People's Republic of China T0619 Asphalt Kinematic Viscosity Test (Capillary Viscometer Method).


Features:
1. High precision digital temperature controller. Electric stirring motor.
2. High temperature resistant glass bath. Double layer structure.
3. Desktop structure. All-in-one design.
4. The maximum heating temperature is 135ºC(or 180ºC).


Specifications:
1. Power supply: AC 220 V±10%, 50 Hz
2. Heating power: 1700 W
3. Temperature range: Ambient to 135.0ºC(or 180ºC)
4. Temperature control accuracy: ±0.1ºC
5. Mercury-in-glass thermometer: Scale division 0.1ºC
Range 100ºC~150ºC(for maximum 135.0ºC)
Range 100ºC~150ºC and range 150ºC~200ºC(for maximum 180.0ºC)
6. Bath capacity: about 23 L

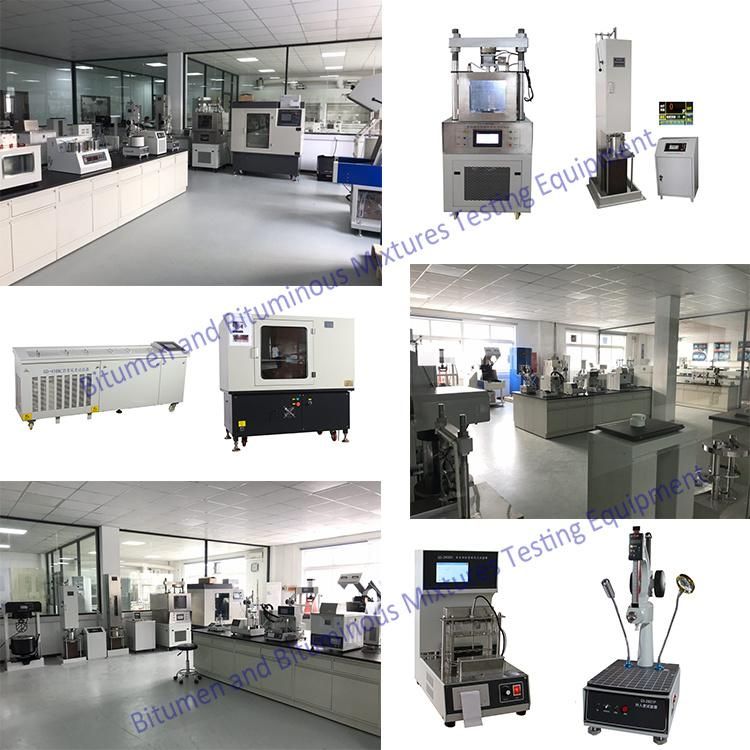

Welcome to visit our Asphalts / Bitumens Laboratory
