• Model NO.：DB-300A
• Testing Before Delivery：Yes
• After-sale Customer Service：Yes
• Transport Package：Standard Exporting Wooden Package
• Trademark：DahoMeter
• Origin：Dongguan, China
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DB-300A Testing Before Delivery Yes After-sale Customer Service Yes Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/Month

Product Description

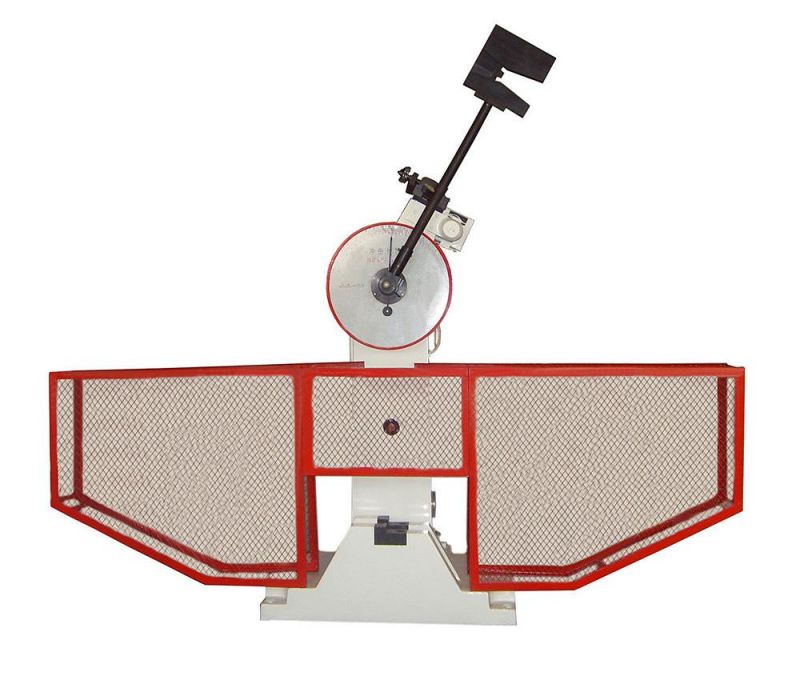

DB-300A Pendulum Impact Tester With Best Quality





Principle

The DB series impact testing machine produced by our company is developed according to the national standard GB/T3808-2002 "Inspection of pendulum impact testing machine". According to the national standard GB/T229-2007 "Metal Charpy Notched Impact Test Method" The material was subjected to impact test and tested according to JJG145-82 "pendulum impact tester". The section used is 10*10MM. It is mainly tested on ferrous metals with high impact toughness, especially steel and its alloys.
The test principle of the product is to obtain the absorption work of the tested sample by using the difference between the front energy of the pendulum impact and the remaining potential energy after the impact on the dial.



Features

The operation adopts semi-automatic control, which is easy to operate and has high work efficiency. The residual energy after the sample is broken by the pendulum can be automatically lifted, and the superiority can be better when the impact test of the sample is continuously performed.



Application

DB series is widely used in the research, production and production of metrology, machinery manufacturing, metallurgy, pressure vessels, universities and other industries.


Usage
It is mainly tested on ferrous metals with high impact toughness, especially steel and its alloys.


Specification
1)Impact Energy:300J,150J
2)Dial scale range and division value:

Model	DB-300A
Energy range	0-300J   0-150J
Division	2J      1J

3)Pendulum torque

Pendulum impact energy	300J	150J
Pendulum torque	160.7695N.M	80.3848N.M

4) Pendulum pre-angle: 150 °
5) Distance from pendulum center to impact point (test center): 750MM
6) Impact speed: 5.2M/S
7) Sample support span: 40MM
8) The radius of the end of the sample support: 1-1.5MM
9) Sample support support angle: 0°
10) Impact knife arc radius: 2-2.5MM
11) The angle between the two inclined faces of the impact knife: 30°
12) Impact blade thickness: 16MM
13) Sample specifications: 10 * 10 * 55MM
14) The test machine weight: about 450KG
15) Test machine dimensions: 2124*600*1340MM
16) Power: three-phase three-wire system 50HZ380V180W (main motor)

Standard Configuration
1)The host: one.
2)Pendulum:
Specifications, large pendulum 300J, small pendulum 150J.
Quantity, one each, two in total.
3)Span model: Specifications, L=40. Quantity, one.
4)The sample center block: specifications, L = 40 (V. U) type. Quantity, one.
5)The detacher: quantity, one.
6)Stay moving: Specifications, S = 30. Quantity, one.
7)Hex wrench: Specifications, S=14. Quantity, one.
8)Ground angle screw: Specifications, M16 × 200. Quantity, four sets.
9)The jaws (including the bracket): Quantity, one pay. Note that it is installed on the host.

Working Condition
1) Room temperature in the range of 10-35ºC;
2)The relative humidity is not more than 85%;
3)In an environment free of corrosive media;
4)Installed on a concrete foundation with a thickness of not less than 150 mm or fixed on a foundation of more than 880 kg;
5)The level of the installation reference surface on the base is adjusted to within 0.2/1000;
