Constant Laboratory Temi-880 Temperature and Humidity Control Environmental Climatic Test Chamber
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Power Supply：AC380V or AC220V
- Certification：CE, TUV, ISO
- Warranty：1 Year
- Internal Dimension：W600*H750*D500mm
- Volume：225L
Base Info
- Model NO.：TH-225-F
- Temperature Accuracy：+,-0.5c
- Test Hole：Dia.50mm

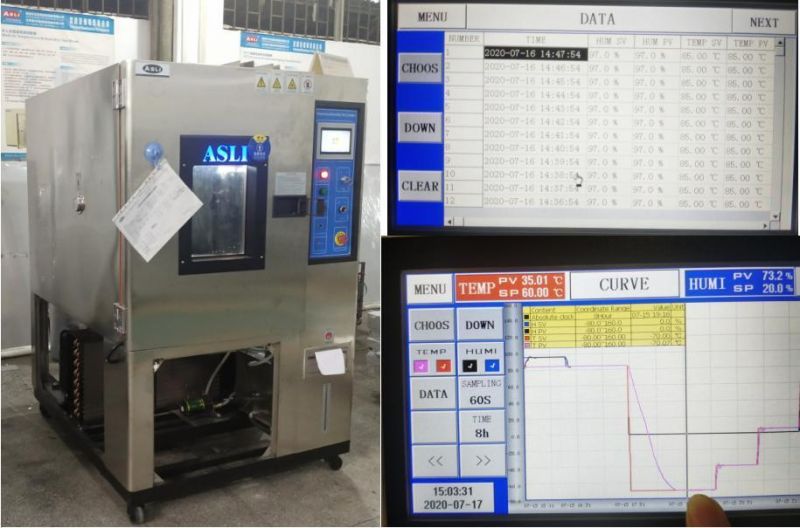

- Control Method：Programmable LCD Display Screen
- Water Tank：25L
- Application：Electronic Products
- Controller：Temi-880
- Transport Package：Wooden Case
- Specification：CE, ISO
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：8514109000
- Production Capacity：100 Sets,Month
Description
Constant Laboratory Temi-880 Temperature and Humidity Control Environmental Climatic Test Chamber function:
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug
Three levels of overheat protection, plus overcool protection
Application:
Temperature Humidity Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Model
TH-80(A~F)
TH-150(A~F)
TH-225(A~F)
TH-408(A~F)
TH-800(A~F)
TH-1000(A~F)
Internal Dimension
WxHxD (mm)
400x500x400
500x600x500
600x750x500
600x850 x800
1000x1000 x800
1000x1000 x1000
External Dimension WxHxD (cm)
950x1650x950
1050x175 0x1050
1200x1900 x1150
1200x1950 x1350
1600x2000 x1450
1600x2100 x1450
Temperature Range
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)
High Temperature 150°C
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier)
Indication relolution/ Distribution uniformity of temperature and humidity
0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
Indication relolution/ Distribution uniformity of temperature and humidity
±0.5°C; ±2.5% R.H.
Temperature Rising / Falling Velocity
Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.3~1.0°C/min;
( Falling Min.1.5°C/min is optional)
Inner and Outer Material
steel with paint coated.
Insulation Material
Resistant to high temperature, high density, formate chlorine, ethyl acetum foam
insulation materials
Cooling System
Wind cooling or water cooling, (single segment compressor-40°C, double segment
compressor -70°C)
Protection Devices
Fuse-free switch, overloading protection switch for compressor, high and low voltage
coolant protection switch, over-humidity and over-temperature protection switch, fuses,
fault warning system, water short storage warning protection
Optional Accessories
Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor
French Tecumseh Brand, Germany Bizer Brand
Power
AC220V 1 3 lines, 50/60HZ , AC380V 3 5 lines , 50/60HZ
Approx. Weight (Kg)
150
180
250
320
400
450
