• Model NO.：RHD-120
• Control Accuracy：+,-0.5 C
• Application：Battery
• Transport Package：Wooden Case
• Specification：CE Certified
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：100sets,Month

Industrial Drying Oven High Temperature OvenModelRHD - 60RHD - 90RHD - 120Internal Dimension W×H×D(mm )500×600×500600×900×500800×1200×700External Dimension W×H×D(mm )700×1200×650850× 1600×7001200× 1680×900Interior and Exterior MaterialInterior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.Temperature Range(R.T.+15C) to 200; (300 to 500°C is optional)Control Accuracy of Temperature±0.5°C;Temperature Rising  Velocity Temperature rising velocity: from R.T. to 200°C,needs approx. 35minsControl MethodMicro PID+SSR+TimerStorage ShelfTwo layers

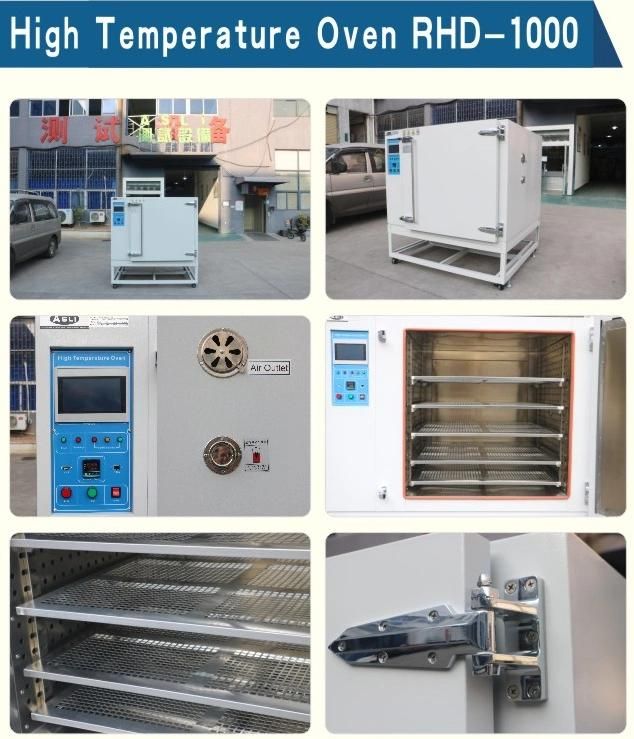

High Temperature Oven Features:

1.The inner side of test chamber is welded by uniformity stainless steel argon arc.The chamber body is made of high quality steel plate with beautiful and novel appearance.
2.This chamber is used high temperature deviation protection,digital display microcomputer and PID control technology to ensure the high precision of control temperature.

 3.In order to improve the uniformity of the inner studio,the hot air circulation system is composed by air blower and appropriate air duct.The air blower can work in high temperature conditions.
4.The new kind synthetic silicon is used in this chamber,it helps to ensure long-term operation at high temperature, prolong service life and replace conveniently.
5.Control panel display helps to adjust/regulate the air inlet and exhaust quantity.
6.If the actual temperature exceed limited temperature ,the independent Limit temperature alarm system will interrupt automatically to ensure the safety operation and no accidents of thest .(Selection)

7.In order to record the temperature changable parameters, this chamber can be matched with a printer or a RS485 interface to connect a printer or computer.(Selection)


Packing Detail:

PID Controlled 720L Laboratory Industrial Electric 300 Degree High Temperature Hot Air Oven
